Boston Gear / Altra Industrial Motion RF2030-GRG01B

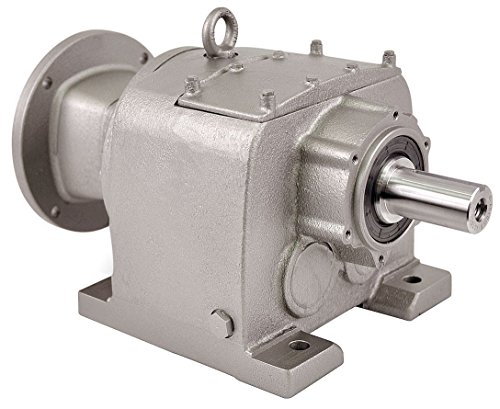

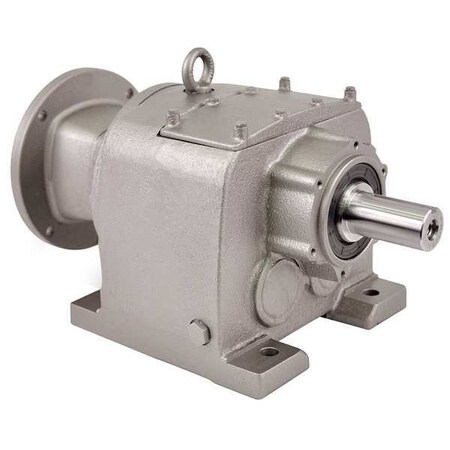

Boston Gear/Altra Industrial Motion - RF2030-GRG01B - Standard Cast Iron C-Face Helical Gear Drive, Single Output, 140 lb. Overhung Load

Boston Gear/Altra Industrial Motion - RF2030-GRG01B - Standard Cast Iron C-Face Helical Gear Drive, Single Output, 140 lb. Overhung Loadzoom

Attributes

Key Value
BearingsBall
Bore Dia.7/8"
Country of Origin (subj.United States
Dimension A6.280"
Dimension B6.300"
Dimension BD3.15"
Dimension BW3.94"
Dimension C5.900"
Dimension D2.950"
Dimension DD4.720"
Dimension F5.12"
Dimension G0.26"
Dimension H3.53"
Dimension K6.690"
Dimension L12.6"
Dimension M0.120"
Dimension U1"
Dimension V1.97"
Dimension W0.490"
DutyStandard
FinishPainted Gray
Frame140TC/180C
Gear MaterialHardened and Ground Ste.
Gear TypeHelical
Housing MaterialCast iron
Input RPM1750
ItemHelical Gear Drive
LubricationKlubersynth UH1 6-460
Max. Input HP8-10.18
Max. Output Torque1020 in.-lb.
MountingFlange
Nominal Output RPM513
Nominal Ratio3.4:1
Number of Stages2
Output Shaft Dia.1"
Output Shaft Height3-1/2"
Output Torque @ 1/40 HP3600 in.-lb.
Overall Length12.6"
Overhung Load140 lb.
Pinion MaterialHardened Steel
Reducer Model No.RF2030-GRG01B
RotationForward/Reversible
Seal TypeDouble Lip
Shaft OrientationParallel/Inline
Single/Double Output/Un.Single Output
Solid/Hollow Output Sha.Solid
Speed Reducer TypeC-Face
StandardsAGMA

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG6963196822.141In Stock20Boston Gear822.14 @ 1
