A.O. Smith Corporation FE1026

B079Q7LBZ7

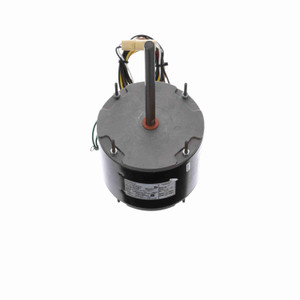

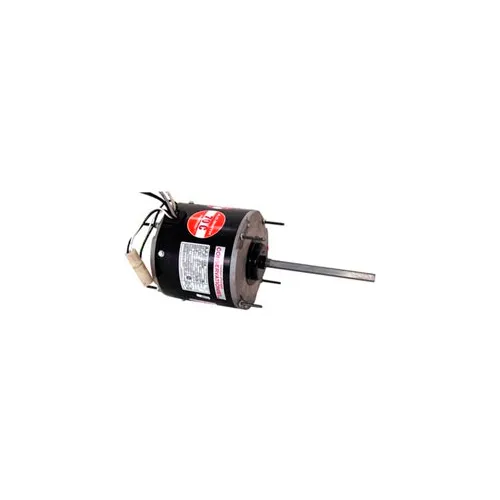

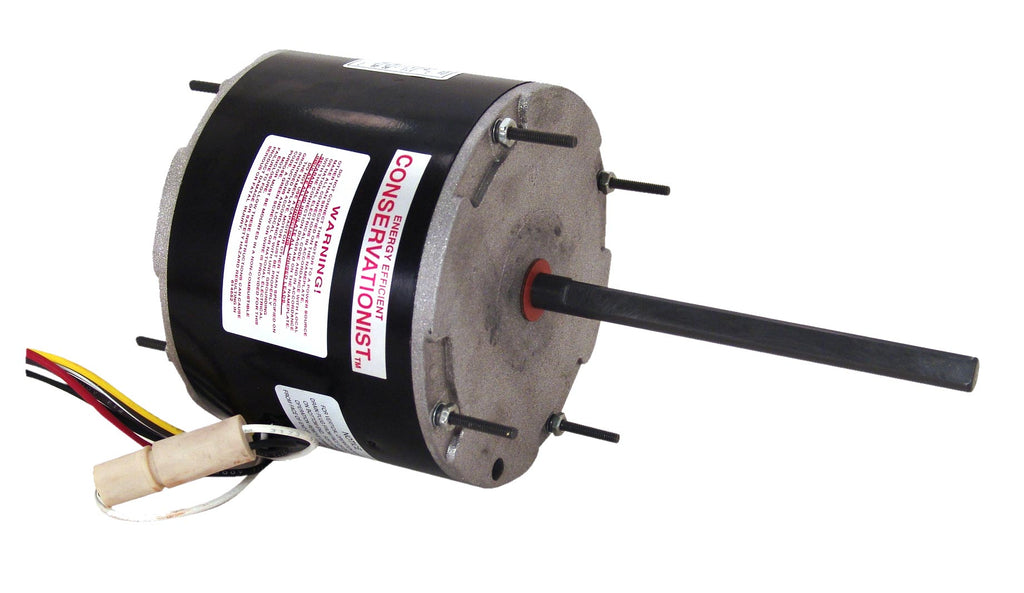

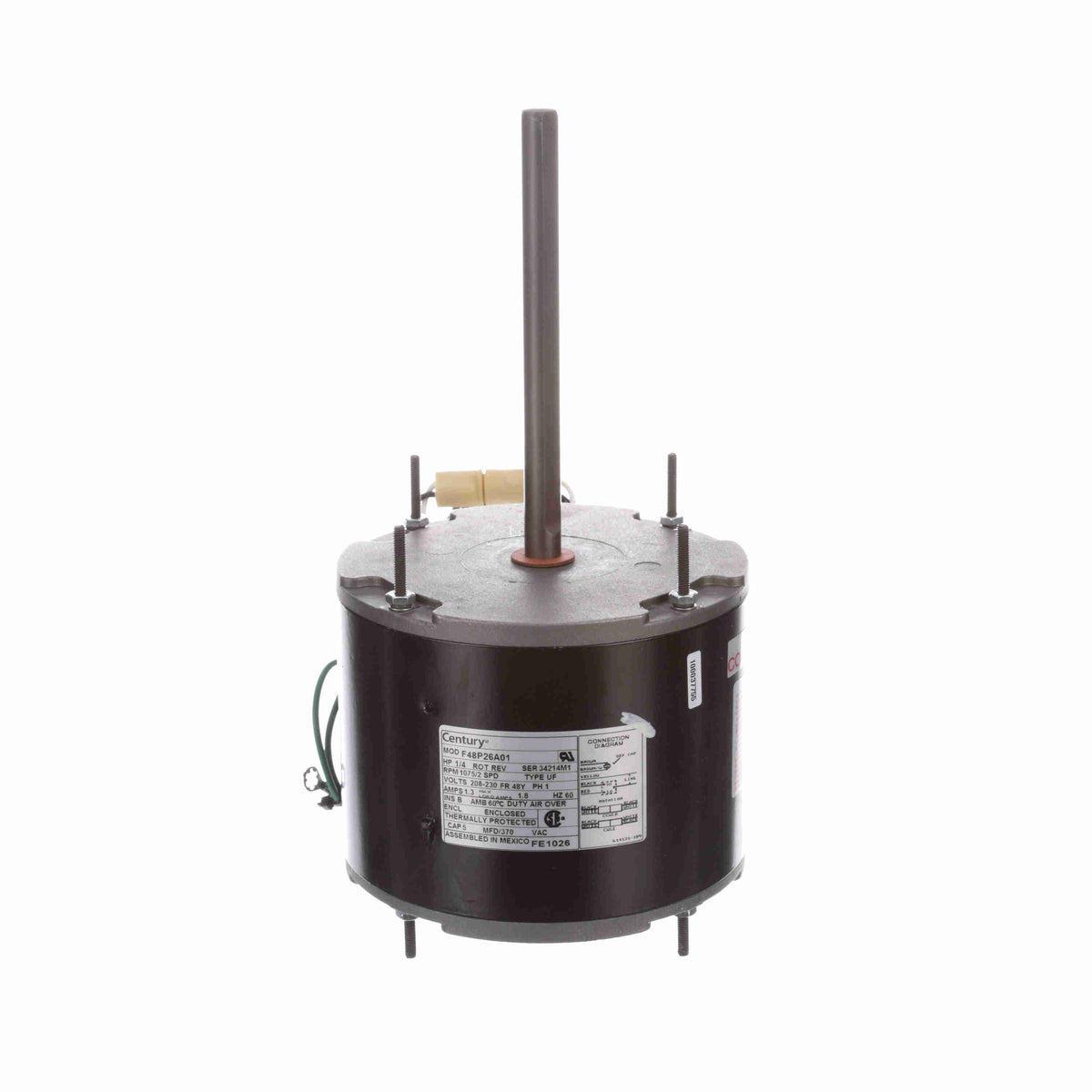

A.O. Smith Corporation A. O. Smith Corporation FE1026 Motor 48FR

A.O. Smith Corporation A. O. Smith Corporation FE1026 Motor 48FRzoom

Attributes

Key Value
Amps1.3
BearingsBall
BrandCentury
C-Dimemsion10.92 (in.)
Capacitor5MFD @ 370VAC Required
Catalog NumberFE1026
CEN
CSAY
DE Bearing TypeBall
DEM ReferenceNOHP
DutyAir Over
Duty CycleContinuous
Electrical TypePermanent Split Capacit.
EnclosureTotally Enclosed
Enclosure TypeTEAO (Totally Enclosed .
FE1026 is listed in Cen.A.O. Smith 321P626, A.O.
Frame48Y
Frame MaterialRolled Steel
Frequency60
HP1/4
Hz60
Insulation ClassB
IP Code-
KVA Code-
Max Ambient60?C
Maximum Ambient Tempera.60? C
Motor Diameter5-5/8"
Motor OrientationAny
MountingBand/Stud
Mounting TypeExtended Studs
Number of Speeds2
ODE Bearing TypeBall
Phase1
Product CategoryHVAC/R Motors > Conden.
Product TypePSC (Permanent Split Ca.
RotationReversible
RPM1075
RPM (Nameplate)1075
RPM (Number of Poles)6 (901 RPM to 1200 RPM)
Service Factor1
Service Factor (SF)1.00
Shaft Diameter1/2 (in.), 1/2"
Shaft Extension6 (in.)
Shaft Length6"
Shaft TypeDouble Flat
Ship Weight13 lbs.
Speeds2
Thermal ProtectionAutomatic
Type of Overload Protec.Automatic
ULRecognized
Volts208-230

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
hvacdiscountstore.comCEN--FE1026316.981In StockCENTURY MOTORS316.98 @ 1
thumbzoomNational Supply NetworkB245002323.011In StockAO SMITH323.01 @ 1
thumbzoomemotorpro.comFE1026325.521In StockCentury13.0325.52 @ 1
thumbzoomGlobal IndustrialWBB245002325.951In StockCentury325.95 @ 1
thumbzoomDreisilkerCE-RBC-FE1026331.721In StockCentury331.72 @ 1
thumbzoommidwestapplianceparts.comFE1026-AO-P332.631In StockAO Smith332.63 @ 1
thumbzoomsustainablesupply.comC2090860333.191In StockCentury15.0333.19 @ 1
thumbzoomVoomi SupplyFE1026352.71In StockCentury Motors352.7 @ 1
uri.comFE1026724.581In StockCentury13.0724.58 @ 1
