Century FE1036

mpnFE1036
brandname: Century
manufacturername: Century

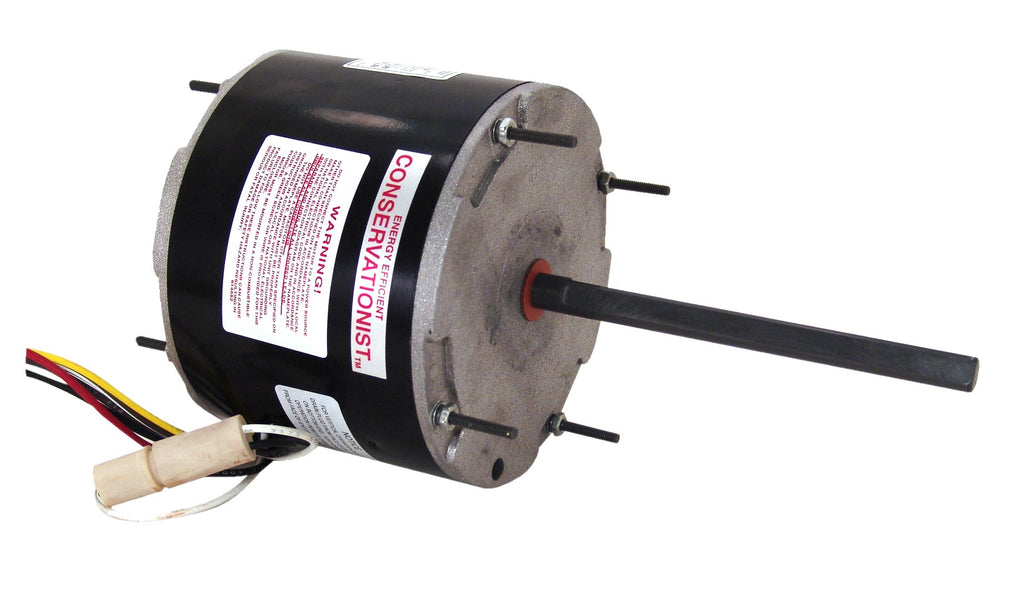

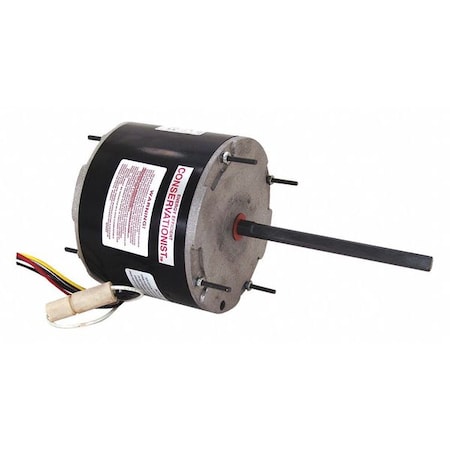

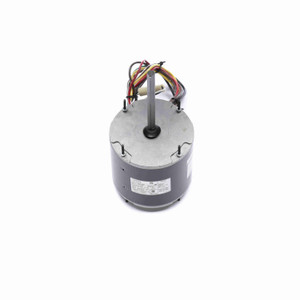

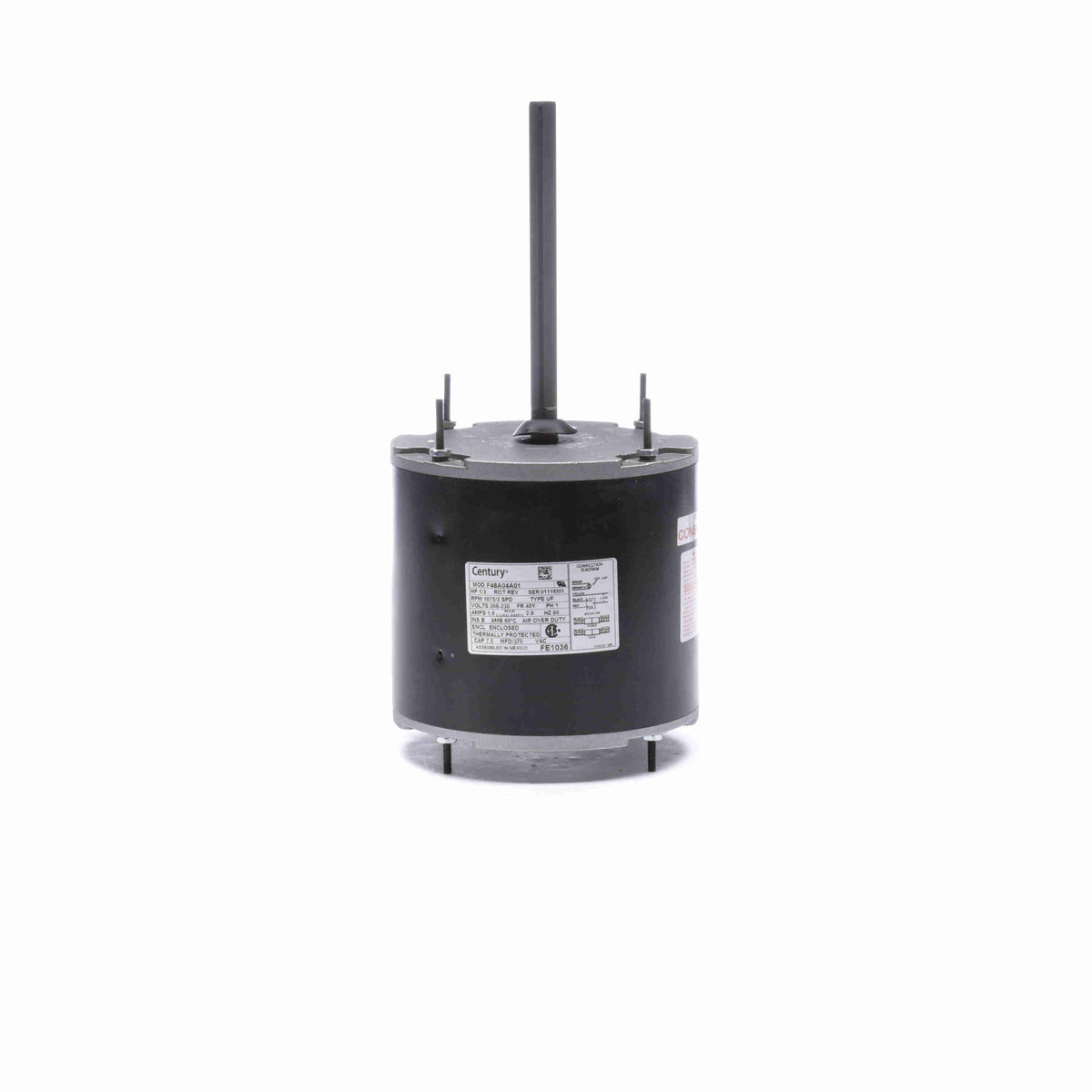

Century FE1036 Condenser, 5.6-Inch Frame Diameter, 1/3-HP, 1075-RPM, 208-230-Volt, 1.8-Amp, Ball Bearing Motor

Brand: Century
PartNumber: FE1036
Model: FE1036
PackageQuantity: 1
Binding: Tools & Home Improvement
Manufacturer: Century
Label: Century

Attributes

Key	Value
Amps	1.8
Batteries Required?	No
Bearings	Ball
Best Sellers Rank	#2,850,815 in Tools & H.
Body Dia.	5-5/8"
Brand	Century
C-Dimemsion	11.67 (in.)
Capacitor	7.5MFD @ 370VAC Required
Capacitor Required	2MDV6
Catalog Number	FE1036
CE	N
Country of Origin (subj.	Mexico
CSA	Y
Date First Available	September 9, 2010
DE Bearing Type	Ball
DEM Reference	NOHP
Duty	Air Over, Continuous Ai.
Duty Cycle	Continuous
Electrical Type	Permanent Split Capacit.
Enclosure	Totally Enclosed
Enclosure Type	TEAO (Totally Enclosed .
FE1036 is listed in Cen.	Packard 70124, A.O. Smi.
Features	Energy Efficient, Auto .
Frame	48Y
Frame Material	Rolled Steel
Frequency	60
Full Load Amps	1.6-1.8
HP	1/3
Hz	60
Ins. Class	B
Insulation Class	B
IP Code	-
Item	Condenser Fan Motor
Item model number	FE1036
Item Package Quantity	1
Item Weight	15.25 pounds
KVA Code	-
Lead Length	27"
Length Less Shaft	5-1/8"
Manufacturer	Century
Max Ambient	60?C
Max. Ambient Temp.	60 Degrees C
Maximum Ambient Tempera.	60? C
Motor Application	HVAC/R
Motor Bearings	Ball
Motor Diameter	5-5/8"
Motor Mounting Position	All Angle
Motor Orientation	Vertical Shaft Up Or Do.
Motor Service Factor	1.00
Motor Sub Application	Condenser Fan
Motor Thermal Protection	Auto
Mounting	Band/Stud
Mounting Stud Pattern	3-5/8" x 3-5/8"
Mounting Type	Extended Studs
Nameplate RPM	1075
No. of Speeds	2
Number of Speeds	2
ODE Bearing Type	Ball
Overall Length	11-1/8"
Part Number	FE1036
Phase	1
Product Category	HVAC/R Motors > Conden.
Product Dimensions	12.25 x 6.25 x 6.25 inc.
Product Type	PSC (Permanent Split Ca.
Product with faster shi.	true
Rotation	Reversible
RPM	1075
RPM (Nameplate)	1075
RPM (Number of Poles)	6 (901 RPM to 1200 RPM)
RPM Range	1001-1100
Service Factor	1
Service Factor (SF)	1.00
Shaft Dia.	1/2"
Shaft Diameter	1/2 (in.), 1/2"
Shaft Extension	6 (in.)
Shaft Length	6"
Shaft Type	Double Flat
Ship Weight	16 lbs.
Shipping	undefined (Fixed Shippi.
Speeds	2
Standards	UL Recognized (E46412/E.
Stud Quantity	4
Stud Size	8-32 x 7/8, 8-32 x 9/16"
Thermal Protection	Automatic
Type of Overload Protec.	Automatic
UL	Recognized
Voltage	208-230
Voltage Compatibility	115/208-230, 208-230, 2.
Volts	208-230
