Cle-line C20472

mpnC20472
brandname: Cle-Line
manufacturername: Cle-Line

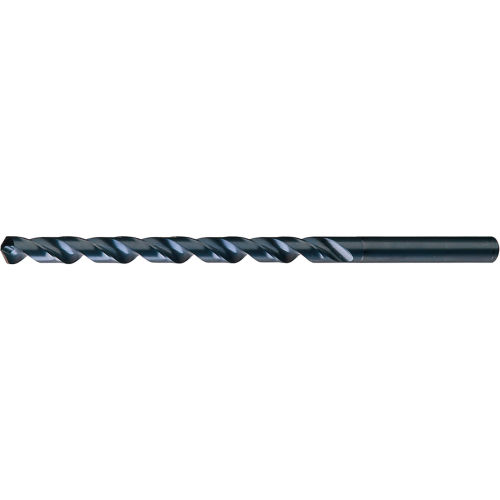

Cle-Line C20472 Extra Length Drill, High Speed Steel, Steam Oxide Finish, Straight Shank, 118-Degree Notched Point, 11/16" Drill Diameter

Cle-Line C20472 Extra Length Drill, High Speed Steel, Steam Oxide Finish, Straight Shank, 118-Degree Notched Point, 11/16" Drill Diameter

zoom

Brand: Cle-line
PartNumber: C20472
Model: C20472
PackageQuantity: 1
Binding: Misc.
Manufacturer: Greenfield Industries (TEG)
Label: Greenfield Industries (TEG)

Attributes

Key	Value
Applicable Materials	Low Carbon, Stainless S.
Coolant Fed	Non-Coolant Through
Cutting Depth	9 in
Cutting Direction	Right Hand
Cutting Edge Material	HSS
Decimal Equivalent	0.6875
Depth x Dia. Ratio	4xD
Depth:Dia. Ratio	4xD
Diameter	0.6875"
Diameter (Fraction)	11/16"
Drill Bit Point Angle	118 Degrees
Drill Bit Size	11/16 in
Drill Construction	General Purpose
Drill Diameter Tolerance	+0.0000 in /-0.0012 in
Drill Length Class	Extra Long
Drill Point Length	0.2065 in
Drill Size - Decimal In.	0.6875 in
Drill Size - Fraction	11/16 in
Drill Size System	Fractional
Drill Style	Extra Length Drill
Finish	Black Oxide/Steam Oxide
Finish - Machining	Black Oxide
Flute Length	9 in, 9.0000"
Flute Length (Metric)	228.60mm
Flute Type	Spiral
Hand of Cut	Right
Hand of Spiral	Right
Item	Extra Long Drill Bit
Material	HSS
Material - Machining	High Speed Steel
Maximum Drilling Depth	2 3/4 in
Number of Flutes	2
Overall Length	12 in, 12.0000"
Overall Length (Metric)	304.80mm
Point Angle	118 deg, 118?
Point Style	Notched
Point Type	Notched
Primary Material Applic.	K, P
Series	1806
Shank Configuration	Straight
Shank Dia.	11/16 in
Shank Length	3.0000", 3 in
Shank Length (Metric)	76.20mm
Shank Size	0.6875", 11/16 in
Shank Size (Metric)	17.46mm
Shank Type	Straight
Shank Type - Machining	Straight
SKU	C20472
Spiral Direction	Right Hand
Standards	ASME B94.11M
Style	1806
Surface Condition	Steam Oxide
Through Coolant (Yes/No)	No
Tool Size	11/16"
Type	General Purpose Heavy D.
UPC	6.97E+11

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Megadepot	C20472	53.08	1	In Stock		Cle-Line		53.08 @ 1
	heavydutydepot.com	C20472	53.08	2	In Stock		Cle-Line		53.08 @ 2
	Global Industrial	WBB2543866	56.95	1	In Stock		Cle-Line		56.95 @ 1
	usmegastore.com	C20472	62.63	1	In Stock		Cle-Line		62.63 @ 1
	MRO Supply	6123829	65.94	1	In Stock		Cle-Line		65.94 @ 1
	Zoro	G4958865	67.92	1	In Stock	26	Cle-Line	0.88	67.92 @ 1
	imsbolt.com	C20472	117.74	1	In Stock		CLE-LINE		117.74 @ 1
