- mpnC23142
- brandname: CLE-LINE
- manufacturername: CLE-LINE

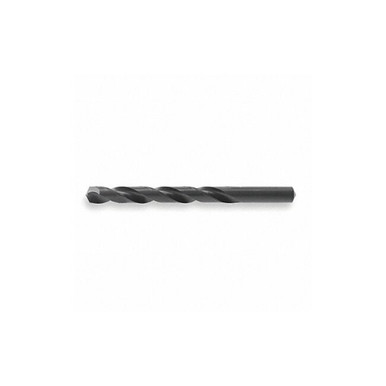

21/64" HSS TiN 135 Deg. Jobber Length Drill Bit
- Brand: Cle-line
- PartNumber: C23142
- Manufacturer: Cle-Line
- Label: Cle-Line
Attributes
| Key | Value |
|---|
| Applicable Materials | Alloy Steel, Carbon Ste. |
| Brand | Cle-Line |
| Color | Black Oxide |
| Current Stock | 797 |
| Cutting Depth | 5XD |
| Cutting Direction | Right Hand |
| Cutting Edge Material | HSS |
| Decimal Equivalent | 0.3281 |
| Depth x Dia. Ratio | 4xD |
| Depth:Dia. Ratio | 4xD |
| Diameter | 0.328125, 0.3281" |
| Diameter (Fraction) | 21/64" |
| Drill Bit Dimension Type | Fractional Inch |
| Drill Bit Finish | Black Oxide |
| Drill Bit Grouping | Drill Bit |
| Drill Bit Material | High Speed Steel |
| Drill Bit Point Angle | 135 Degrees |
| Drill Bit Size | 21/64 in |
| Drill Construction | Heavy-Duty |
| Drill Diameter Measurem. | Imperial |
| Drill Diameter Tolerance | +0.0000 in/-0.0010 in |
| Drill Length Class | Jobber Length |
| Drill Point Length | 0.068 in |
| Drill Size - Decimal In. | 0.3281 in |
| Drill Size - Fraction | 21/64 in |
| Drill Size System | Fractional |
| Drill Style | Jobber Drill |
| Finish | Tin, Black Oxide |
| Flute Length | 3 5/16 in, 3.3125", 3-5. |
| Flute Length (Metric) | 84.14mm |
| Flute Type | Right Spiral, Spiral |
| Hand of Cut | Right |
| Hand of Spiral | Right |
| International Shipping | No |
| Item | Jobber Length Drill Bit |
| Lead Time | Expected to ship in 1-2. |
| Material | HSS, High Speed Steel |
| Maximum Drilling Depth | 2 31/64 in |
| Mpn | C23142 |
| Number of Flutes | 2 |
| Overall Length | 4 5/8 in, 4-5/8 in, 4.6. |
| Overall Length (Metric) | 117.47mm |
| Point Angle | 135 deg, 135? |
| Point Style | Split |
| Point Type | Split |
| Series | 1801 |
| Shank Configuration | Straight |
| Shank Dia. | 21/64 in |
| Shank Length | 1 5/16 in, 1.3125" |
| Shank Length (Metric) | 33.34mm |
| Shank Size | 0.3281", 0.3281, 21/64 . |
| Shank Size (Metric) | 8.33mm |
| Shank Type | Straight |
| SKU | ZO-G0649555 |
| Style | 1801 |
| SubCategory | Machining |
| Surface Condition | Steam Oxide |
| Through Coolant (Yes/No) | No |
| Tool Size | 21/64" |
| Type | Heavy Duty |
| UPC | 697334231424 |
