- mpnC23150
- brandname: CLE-LINE
- manufacturername: CLE-LINE

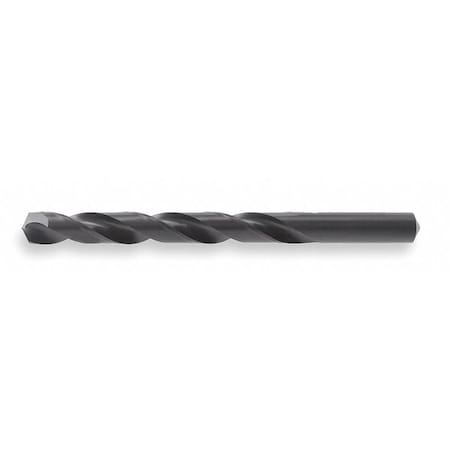

Jobber Bit, 29/64In, High Speed Steel
- Brand: Cle-line
- PartNumber: C23150
- Model: C23150
- Color: Black Oxide
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: CLE-LINE
- Label: CLE-LINE
Attributes
| Key | Value |
|---|
| Applicable Materials | Alloy Steel, Carbon Ste. |
| Cutting Depth | 5XD |
| Cutting Direction | Right Hand |
| Cutting Edge Material | HSS |
| Decimal Equivalent | 0.4531 |
| Depth x Dia. Ratio | 4xD |
| Depth:Dia. Ratio | 4xD |
| Diameter | 0.453125, 0.4531" |
| Diameter (Fraction) | 29/64" |
| Drill Bit Dimension Type | Fractional Inch |
| Drill Bit Finish | Black Oxide |
| Drill Bit Grouping | Drill Bit |
| Drill Bit Material | High Speed Steel |
| Drill Bit Point Angle | 135 Degrees |
| Drill Bit Size | 29/64 in |
| Drill Construction | Heavy-Duty |
| Drill Diameter Measurem. | Imperial |
| Drill Diameter Tolerance | +0.0000 in/-0.0010 in |
| Drill Length Class | Jobber Length |
| Drill Point Length | 0.0938 in |
| Drill Size - Decimal In. | 0.4531 in |
| Drill Size - Fraction | 29/64 in |
| Drill Size System | Fractional |
| Drill Style | Jobber Drill |
| Finish | Black Oxide |
| Flute Length | 4 3/16 in, 4.1875", 4-3. |
| Flute Length (Metric) | 106.36mm |
| Flute Type | Right Spiral, Spiral |
| Hand of Cut | Right |
| Hand of Spiral | Right |
| Item | Jobber Length Drill Bit |
| Material | HSS, High Speed Steel |
| Maximum Drilling Depth | 3 1/8 in |
| Number of Flutes | 2 |
| Overall Length | 5 5/8 in, 5-5/8 in, 5.6. |
| Overall Length (Metric) | 142.88mm |
| Point Angle | 135 deg, 135?, 135 |
| Point Style | Split |
| Point Type | Split |
| Series | 1801 |
| Shank Configuration | Straight |
| Shank Dia. | 29/64 in |
| Shank Length | 1 7/16 in, 1.4375" |
| Shank Length (Metric) | 36.51mm |
| Shank Size | 0.4531", 0.4531, 29/64 . |
| Shank Size (Metric) | 11.51mm |
| Shank Type | Straight |
| Style | 1801 |
| Surface Condition | Steam Oxide |
| Through Coolant (Yes/No) | No |
| Tool Size | 29/64" |
| Type | Heavy Duty |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Global Industrial | WBB2543083 | 6.4 | 6 | 6 | | Cle-Line | | 6.4 @ 6 |
 | usmegastore.com | C23150 | 6.73 | 1 | 6 | | Cle-Line | | 6.73 @ 6 |
 | Megadepot | C23150 | 6.78 | 1 | 6 | | Cle-Line | | 6.78 @ 6 |
 | heavydutydepot.com | C23150 | 6.78 | 15 | 6 | | Cle-Line | | 6.78 @ 15 |
 | MRO Supply | 6124673 | 7.57 | 7 | 6 | | Cle-Line | | 7.57 @ 7 |
 | Zoro | G2712622 | 7.95 | 1 | 334 | | Cle-Line | 0.17 | 7.95 @ 6 |
 | Raptor Supplies | AB9CNL | 10.525437 | 1 | 6 | | CLE-LINE | | 10.525437 @ 6 |
 | sustainablesupply.com | C1465217 | 11.28 | 1 | 6 | | Cle-Line | 0.17 | 11.28 @ 6 |
