Cleveland C14352

mpnC14352
brandname: CLEVELAND
manufacturername: CLEVELAND

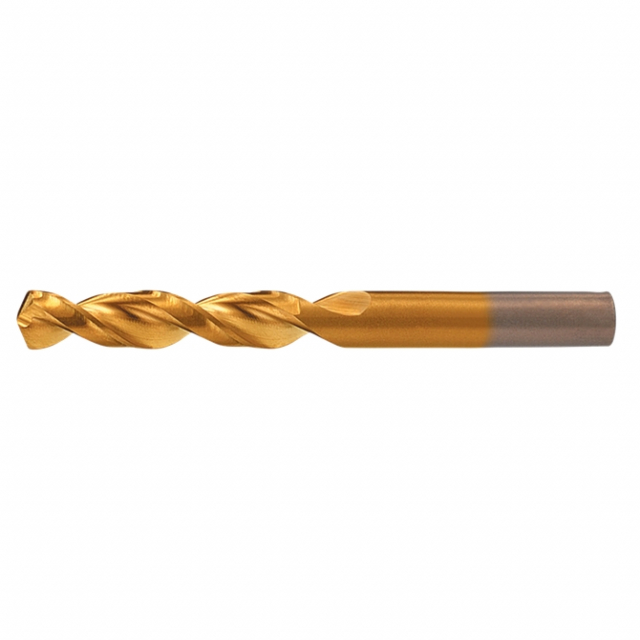

Cleveland 2175T Cobalt Steel Jobbers' Length Drill Bit, TiN Coated, Round Shank, 135 Degree Notch Point, 35/64" (Pack of 1)

Brand: Cleveland
PartNumber: C14352
Model: C14352
Size: 35/64"
PackageQuantity: 1
Binding: Misc.
Manufacturer: Greenfield Industries
Label: Greenfield Industries

Attributes

Key	Value
Applicable Materials	Chilled Cast Iron, High.
Application	For Stainless Steel, To.
Bit Dia.	35/64"
Construction:	Wide Land Parabolic
Coolant Fed	Non-Coolant Through
Coolant Through	No
Country of Origin (subj.	United States
Cutting Depth	5XD
Cutting Direction	Right Hand
Cutting Edge Material	M42 HSS-Co 8
Decimal Equivalent	0.5469
Decimal Equivalent:	0.5469"/ 13.89mm
Depth x Dia. Ratio	10xD
Depth:Dia. Ratio	10xD
Diameter Fractional:	35/64"
Drill Bit Dimension Type	Fractional Inch
Drill Bit Finish	TiN
Drill Bit Grouping	Individual, Drill Bit
Drill Bit Material	Cobalt
Drill Bit Point Angle	135 Degrees, 135 Degre.
Drill Bit Point Type	Split Point
Drill Bit Size	35/64 in
Drill Diameter Measurem.	Imperial
Drill Diameter Tolerance	+0.0000 in /-0.0012 in
Drill Length Class	Screw Machine Length
Drill Point Length	0.1133 in
Drill Size - Decimal In.	0.5469 in
Drill Size - Fraction	35/64 in
Drilling Length	2-1/2"
Finish	TiN Coated
Finish - Machining	TiN
Flute Length	2-1/2 in, 2 1/2 in
Flute Type	Parabolic, Right Spiral.
Grade	High Performance
Hand of Spiral Cut:	RHS/RHC
Helix Angle	40 Degrees
Item	Screw Machine Drill Bit
Length of Flute:	2.5000"/63.50mm
List Number	2175-TN
List Style:	2175-TN
Material	M42 HSS-Co 8, HSS-CO 8%.
Material - Machining	Cobalt
Material Grade - Machin.	M42
Material:	Cobalt
Maximum Drilling Depth	2 1/2 in
Measurement System	Fractional Inch
Number of Flutes	2
Number of Pieces	0
Overall Length	4 in
Overall Length:	4.0000"/ 101.60mm
Point Angle	135 deg
Point Type	Split
Point:	135? Split
Primary Material Applic.	Steel
Primary Material Applic.	P
Series	2175-TN
Shank Dia.	35/64 in
Shank Length	1 1/2 in
Shank Shape	Straight
Shank Size	35/64 in Dia x 1-1/2 in.
Shank Size:	0.5469"/ 13.89mm
Shank Type	Straight
Shank Type - Machining	Straight
Shank:	Straight
Sizes Included	35/64"
Spiral Direction	Right Hand
Standards	ASME B94.11M-1993
Style	2175-TN
Surface Condition	TiN
Surface Condition:	TiN
Tool Size	35/64"
Type	High Performance

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Brand	Weight	Preferred Tier
MRO Supply	6110844	44.06	1	In Stock	Cleveland		44.06 @ 1
Megadepot	C14352	45.83	1	In Stock	Cleveland		45.83 @ 1
usmegastore.com	C14352	54.47	1	In Stock	Cleveland		54.47 @ 1
Zoro	G2997738	54.62	1	In Stock	Cleveland	0.08	54.62 @ 1
sustainablesupply.com	C2770298	56.41	1	In Stock	Cleveland	0.21	56.41 @ 1
Grainger	439P66	66.11	1	In Stock	CLEVELAND		66.11 @ 1
