- mpn2ZXN8
- brandname: DAYTON
- manufacturername: DAYTON

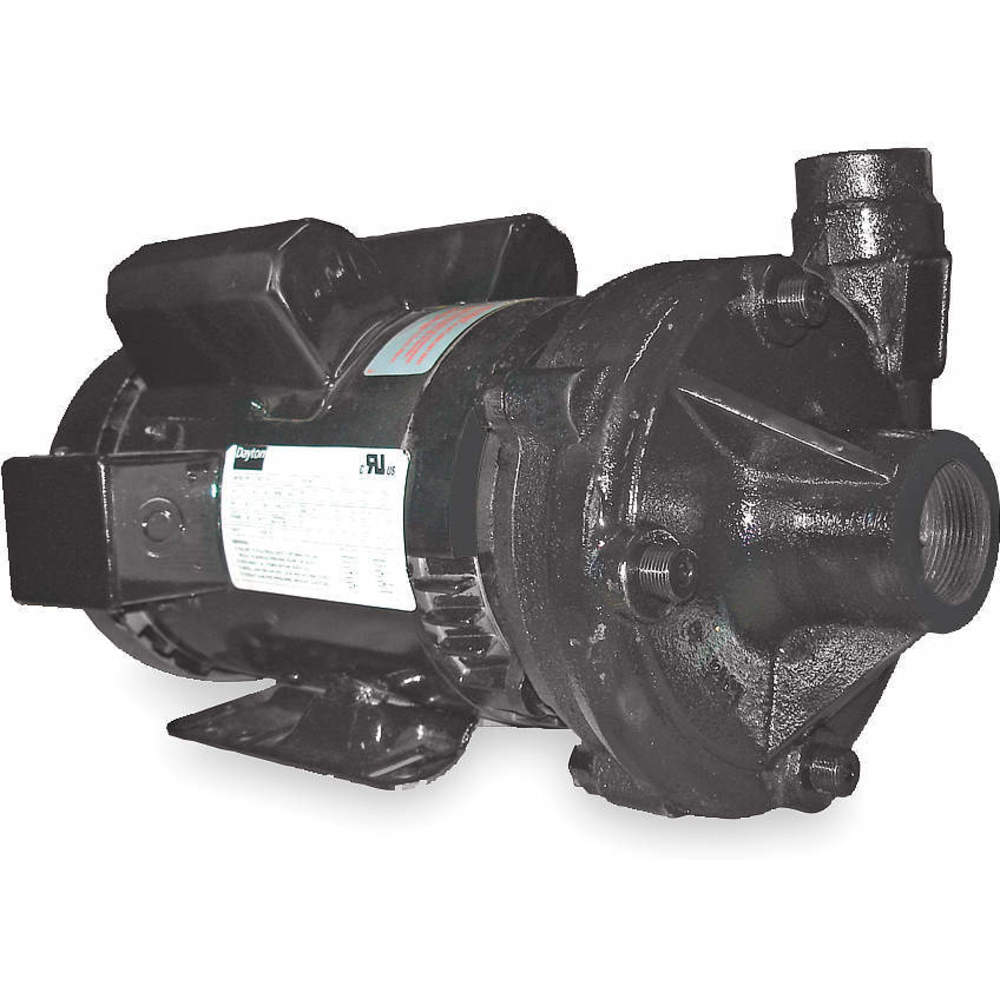

Dayton Cast Iron 3 HP Centrifugal Pump, 230VAC Voltage, /12.5 Amps - 2ZXN8
- Brand: Dayton
- PartNumber: 2ZXN8
- Manufacturer: Dayton
- Label: Dayton
Attributes
| Key | Value |
|---|
| Agency Compliance | UL Approval in Motor |
| Amps | 12.5 |
| Bearing Type | Ball |
| Best Efficiency Flow | 95 gpm |
| Best Efficiency GPM @ H. | 95 @ 57 ft |
| Best Efficiency Head | 57 ft |
| Brand | Dayton |
| Compatible Discharge Pi. | 1 1/4 in |
| Compatible Intake Pipe . | 1 1/2 in |
| Compatible with Media T. | Non-Flammable Liquids |
| Current Stock | 1 |
| Discharge Rotation | 90 Degrees Increments |
| Discharge Type | NPT |
| Duty | Continuous |
| Duty Cycle | Continuous |
| Features | Continuous High Pressur. |
| Feet of Head (Minimum) | 10 ft |
| Flow Rate @ 1 ft of Hea. | Not Applicable |
| Flow Rate @ 10 ft of He. | 107 gpm |
| Flow Rate @ 100 ft of H. | 43 gpm |
| Flow Rate @ 120 ft of H. | 17 gpm |
| Flow Rate @ 140 ft of H. | Not Applicable |
| Flow Rate @ 15 ft of He. | 105 gpm |
| Flow Rate @ 160 ft of H. | Not Applicable |
| Flow Rate @ 180 ft of H. | Not Applicable |
| Flow Rate @ 20 ft of He. | 103 gpm |
| Flow Rate @ 200 ft of H. | Not Applicable |
| Flow Rate @ 220 ft of H. | Not Applicable |
| Flow Rate @ 240 ft of H. | Not Applicable |
| Flow Rate @ 260 ft of H. | Not Applicable |
| Flow Rate @ 280 ft of H. | Not Applicable |
| Flow Rate @ 30 ft of He. | 98 gpm |
| Flow Rate @ 300 ft of H. | Not Applicable |
| Flow Rate @ 40 ft of He. | 92 gpm |
| Flow Rate @ 5 ft of Hea. | Not Applicable |
| Flow Rate @ 50 ft of He. | 87 gpm |
| Flow Rate @ 60 ft of He. | 79 gpm |
| Flow Rate @ 70 ft of He. | 72 gpm |
| Flow Rate @ 80 ft of He. | 63 gpm |
| Flow Rate @ 90 ft of He. | 55 gpm |
| For Use With Potable Sy. | No |
| Frame | 56J |
| Frequency | 60 Hz |
| GPM of Water @ 10 Ft. o. | 107 |
| GPM of Water @ 100 Ft. . | 43 |
| GPM of Water @ 110 Ft. . | 32 |
| GPM of Water @ 120 Ft. . | 17 |
| GPM of Water @ 130 Ft. . | 2 |
| GPM of Water @ 15 Ft. o. | 105 |
| GPM of Water @ 20 Ft. o. | 103 |
| GPM of Water @ 25 Ft. o. | 100 |
| GPM of Water @ 30 Ft. o. | 98 |
| GPM of Water @ 40 Ft. o. | 92 |
| GPM of Water @ 50 Ft. o. | 87 |
| GPM of Water @ 60 Ft. o. | 79 |
| GPM of Water @ 70 Ft. o. | 72 |
| GPM of Water @ 80 Ft. o. | 63 |
| GPM of Water @ 90 Ft. o. | 55 |
| Height | 9 in |
| Horsepower | 3 hp |
| Housing Material | Cast Iron |
| Housing Material - Pumps | Cast Iron |
| HP | 3 |
| HP - Pumps | 3 hp |
| Hz | 60 |
| Impeller Design | Closed |
| Impeller Material | Brass |
| Impeller Type | Closed |
| Includes | Manual |
| Inlet | 1-1/2" |
| Inlet Pressure | 200 psi |
| Inlet Size - Pumps | 1-1/2 in NPT |
| Intake and Discharge Si. | 1 1/2 in , 1 1/4 in |
| Intake Type | NPT |
| International Shipping | No |
| Item | Centrifugal Pump |
| Item - Straight Centrif. | Straight Centrifugal Hi. |
| Length | 18 in |
| Length (Straight Wirewa. | 18 in |
| Manufacturer Warranty L. | 1 yr |
| Manufacturers Warranty . | 1 yr |
| Max. Case Pressure | 200 psi |
| Max. Dia. Solids | 5/16 in |
| Max. Head | 131 ft |
| Max. Liquid Temp. | 200 Degrees F |
| Max. Pressure | 56 psi |
| Max. Pressure - Pumps | 56 psi |
| Max. Specific Gravity | 1.0 |
| Maximum Feet of Head | 130 ft |
| Maximum Media Temperatu. | 200 Degrees F |
| Maximum RPM | 3,450 RPM |
| Minimum Media Temperatu. | 40 Degrees F |
| Motor Enclosure | TEFC, Totally Enclosed . |
| Motor Enclosure - Pumps | Totally Enclosed Fan-Co. |
| Motor Enclosure Broad | TEFC |
| Motor Enclosure Type | TEFC |
| Motor Frame Designation | 56J |
| Motor RPM | 3,450 RPM |
| Motor Type | TEFC |
| Mpn | 2ZXN8 |
| Nameplate Voltage | 230V AC |
| Nominal Voltage | 230V AC |
| Outlet | 1-1/4" |
| Outlet Size - Pumps | 1-1/4 in NPT |
| Overall Height | 8.9 in |
| Overall Length | 18 in |
| Overall Width | 8.8 in |
| Phase | 1, Single |
| Phase - Pumps | 1 |
| Phase Broad | 1 |
| Port Rotation | 4 Position Increments |
| Prop 65 | WARNING: Cancer and Rep. |
| Pump Housing Material | Cast Iron |
| Pump Housing Material B. | CI |
| Pumping Application | Aggressive Liquid Appli. |
| Seal Material | Viton |
| Seal Type | Mechanical |
| Shaft Material | Stainless Steel |
| Shut Off Pressure (Maxi. | 56 psi |
| SKU | ZO-G1614611 |
| Solid Diameter (Maximum) | 0.31 in |
| Specific Gravity (Maxim. | 1 |
| Standards | UL Approval in Motor, U. |
| SubCategory | Pumps |
| UPC | 190735242803 |
| Voltage | 230VAC |
| Voltage - Pumps | 240V AC |
| Wetted Material | Brass, Carbon, Cast Iro. |
| Wetted Materials | Brass, Carbon, Cast Iro. |
| Width | 8 3/4 in |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Zoro | G1614611 | 602.11 | 1 | In Stock | | Dayton | 77.88 | 602.11 @ 1 |
| grainger.ca | GGM2ZXN8 | 638.57863492 | 1 | In Stock | | DAYTON | 71.4 | 638.57863492 @ 1 |
 | simsupply.com | ZO-G1614611 | 741.11 | 1 | 1 | | Dayton | | 741.11 @ 1 |
| AmazonTP | B001QRL1U4 | 757.27 | 1 | In Stock | 5 | Dayton | | 757.27 @ 1 |
 | sustainablesupply.com | C1740576 | 816.11 | 1 | In Stock | | Dayton | 77.88 | 816.11 @ 1 |
 | Raptor Supplies | AC4HRP | 1049.727978 | 1 | In Stock | | DAYTON | | 1049.727978 @ 1 |
