TB-SC-25M

B07PQV65LQ

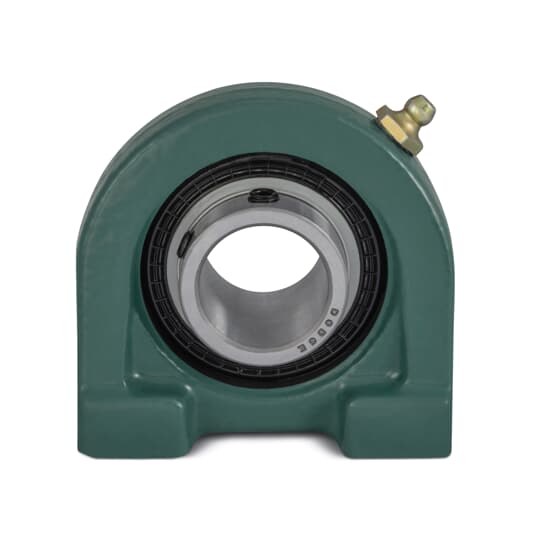

DODGE - TB-SC-25M, Tapped-Base Pillow Block, Non-Expansion, Cast Iron, 25mm Bore Dia.

DODGE - TB-SC-25M, Tapped-Base Pillow Block, Non-Expansion, Cast Iron, 25mm Bore Dia.zoom

Attributes

Key Value
Actual Bolt Center to C.2 Inch | 52Millimeter
ApplicationGeneral Purpose
Ball bearing series205 series
Base to center height1.4400 in, 36.576 mm
Base to Center Height1.437 Inch | 36.5 Milli.
Bearing typeBall, ball
Bolt Diameter0.3750 in
Bolt Spacing Maximum0 Inch | 0Millimeter
Bolt Spacing Minimum0 Inch | 0Millimeter
Bolt to bolt max2.0000 in, 50.8 mm
Bolt to bolt min2.0000 in, 50.8 mm
Bore25mm
Bore length1.3400 in, 34.036 mm
BrandDODGE
CategoryPillow Block Bearings
DutyStandard Duty
ExpansionNo
Expansion / Non-expansi.Non-expansion
Expansion capabilityNon-expansion (fixed)
FinishPowder coated
Global Part Number GPN520601
GreasableYes
Harmonized Tariff Code8483.20.40.40
High tempNo
Housing Configuration1 Piece Solid
Housing constructionSolid
Housing MaterialCast Iron
Housing materialCast Iron
Housing optionCast Iron
Housing Style2 Bolt Tap Base Pillow .
Housing typeTapped-base pillow block
I.D.25 mm
Inch - MetricMetric
Insert materialSteel
Insert optionBearing steel
Insert Part NumberINS-SC-25M
Insert typeBall Bearing
Length Thru Bore1.189 Inch | 30.2 Milli.
LockingSet Screw
Lubrication typeGrease
Manufacturer NameABB MOTORS AND MECHANIC.
MaterialSteel
Max RPM7500 rpm
Max Speed4500 rpm
Mounting Bolts10 Millimeter
Mounting MethodSet Screw
Nominal Bolt Center to .2 Inch | 52 Millimeter
Number of Mounting Holes2
Other FeaturesSingle Row | Normal Dut.
price$ 73.99 / each
RelubricatableYes
RelubricationYes
Rolling elementStandard duty ball
SealSingle lip
Seal optionDualGuard seals with fl.
SealsSingle Lip Contact
Sensor readyAdapter required
Shaft attachmentSetscrew
Shaft diameter25.0000 mm
Standoff housingNo
Static load capacity1769 lbf, 7868.904 N
Suitable for high tempe.No
Suitable for washdownNo
titleTB-SC-25M
TypeTap based
UNSPSC31171511
Weight / kgm0.68
Weight / LBS0.154

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomLily BearingTB-SC-25M62.891In StockDODGE1.49662.89 @ 1
thumbzoomMRO Supply12873678.961In StockDodge78.96 @ 1
thumbzoomapexindustrialautomation.comTB-SC-25M80.031In StockDodge80.03 @ 1
