Leeson 111147.00

B00EP2RN0E

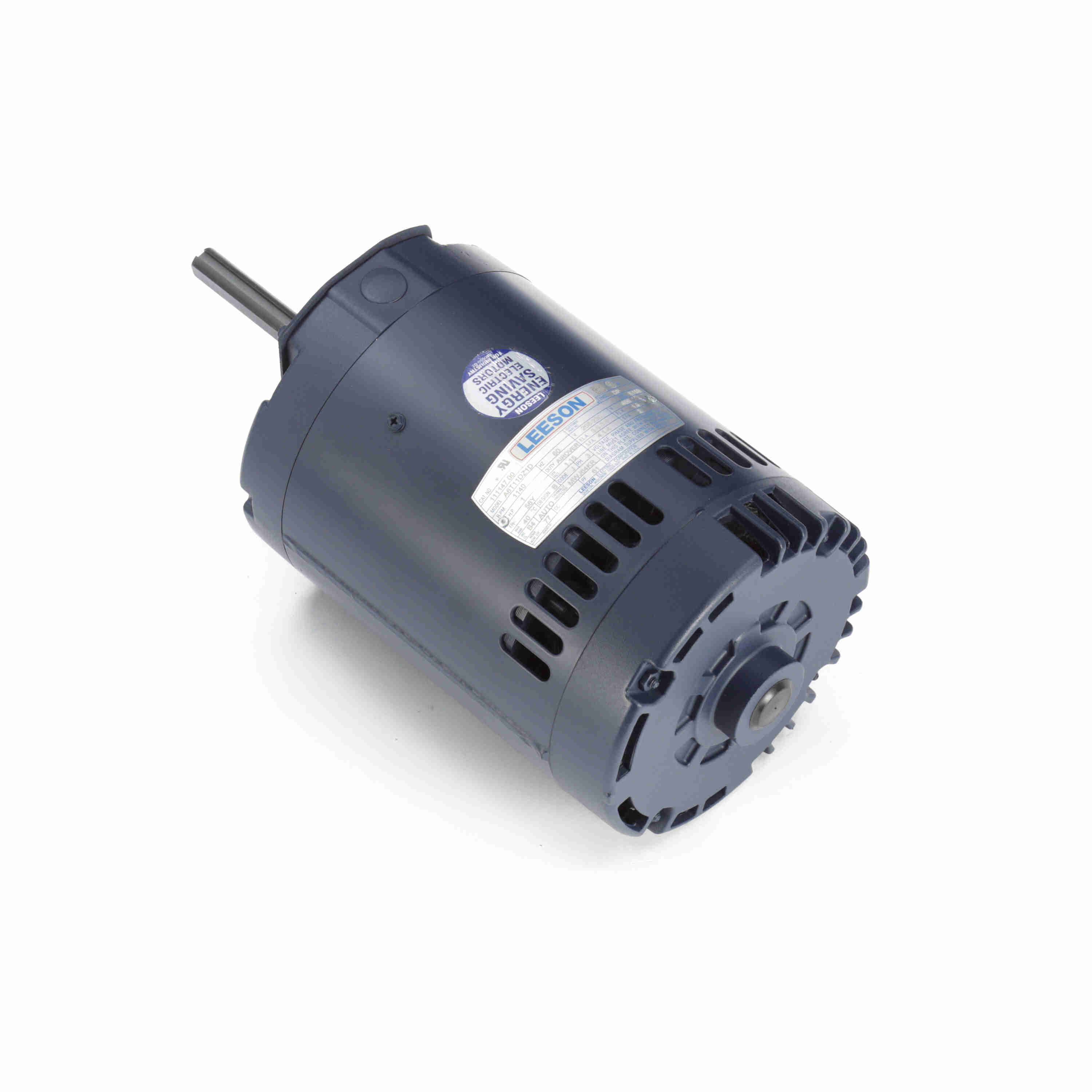

Leeson 111147.00 Condenser HVAC Motor, 3 Phase, 56Y Frame, Rigid Mounting, 1HP, 1200 RPM, 208-230/460V Voltage, 60Hz Fequency

Leeson 111147.00 Condenser HVAC Motor, 3 Phase, 56Y Frame, Rigid Mounting, 1HP, 1200 RPM, 208-230/460V Voltage, 60Hz Fequencyzoom

Attributes

Key Value
Amperage Rating3.9 to 3.8/1.9 A
Amps3.9-3.8/1.9
Application TypeFan & Blower Motors, OE.
ApprovalsCSA, UL
Bearing Type14.06, Ball
BearingsBall
CategoryElectric Motor
Class/GroupA6T11DZ1
CompositionSteel
Description:Replaced by 056T11O5302.
Dimensions14.06 in L
Drive End Bearing Size6203
Drive End Bearing TypeBall
Duty CycleContinuous
Efficiency77, 77.0%
EnclosureOPAO, ODPAO, Drip Proof
Enclosure MaterialRolled Steel
Enclosure TypeDP (Dripproof), DP
Family SeriesLeeson Motors, HVAC Ser.
Frame56Y
Frame MaterialRolled Steel
Frequency60
Frequency Rating60 Hz
Gross Weight0 lbs
Horsepower1 hp
HP1
Hz60
Insulation ClassB, Class B
Item ConditionFACTORY NEW
Item Number111147.00
KW0.75
ManufacturerLEESON ELECTRIC CORPORA.
Manufacturer Part Number111147.00
MaterialSteel
Maximum Ambient Tempera.40? C
MFG Part #:111147.00
Model NumberA6T11DZ1
Motor Shell Length6.50"
MountingBand/Round
mounting**Round Belly Band
Mounting TypeFoot Mount, Rigid
NEMA Frame56Y
Net Weight37 lbs
Nominal Voltage208 VAC, 240 VAC, 480 V.
Number of Poles6
Number of Speeds1
Opp. Drive End Bearing .6203
Opp. Drive End Bearing .Ball
Overall Length14.06 ", 14.06"
Phase3
Product SeriesHVAC
Product TypeThree Phase
RotationReversible
RPM1,200 RPM, 1140, 1100 -.
Service Factor1.15, 1.149
Shaft Diameter0.625", 0.625, UL;CSA
Shaft Length3.75", 3.75
Shaft Size5/8 in Dia
Ship Weight40 lbs.
Speed1140 rpm
Supplier:LEESON ELECTRIC CORPORA.
Temperature Rating40 deg C
Thermal ProtectionAutomatic
Torque Rating15.3 ft-lb
TypeBelly Band
UPC:691720009628
Voltage208-230/460
Volts208/230/460, 208-230/460

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomMRO Supply2525551184.441In StockLeeson184.44 @ 1
thumbzoomemotorpro.com111147.00192.731In StockLeeson40.0192.73 @ 1
kscdirect.comLEE 111147.00218.131In StockLEESON ELECTRIC CORPORATION218.13 @ 1
thumbzoomGalco111147.00-LEES229.851In StockLeeson37.0229.85 @ 1
thumbzoomWalker Industrial111147-00249.024In Stock10Leeson249.0 @ 24
thumbzoomelectricmotorwholesale.com111147417.01In StockLEESON417.0 @ 1
thumbzoomDealers Electric111147.00508.071In StockLeeson40.0508.07 @ 1
AmazonTPB0773R5Q8T543.151In Stock5Leeson Electric543.15 @ 1
thumbzoomRaptor SuppliesAJ2QEP1177.76511451In StockLEESON1177.7651145 @ 1
