Leeson Electric 825081.00

B0773SNCRT

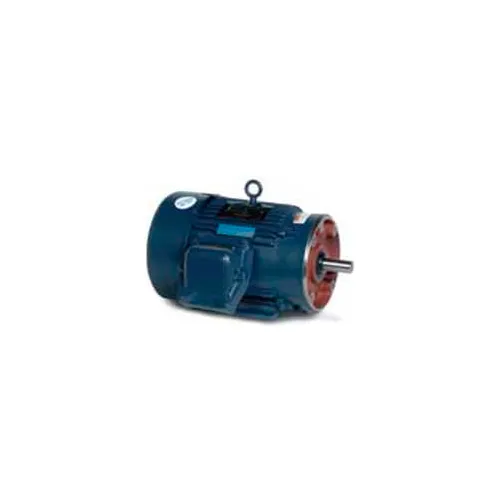

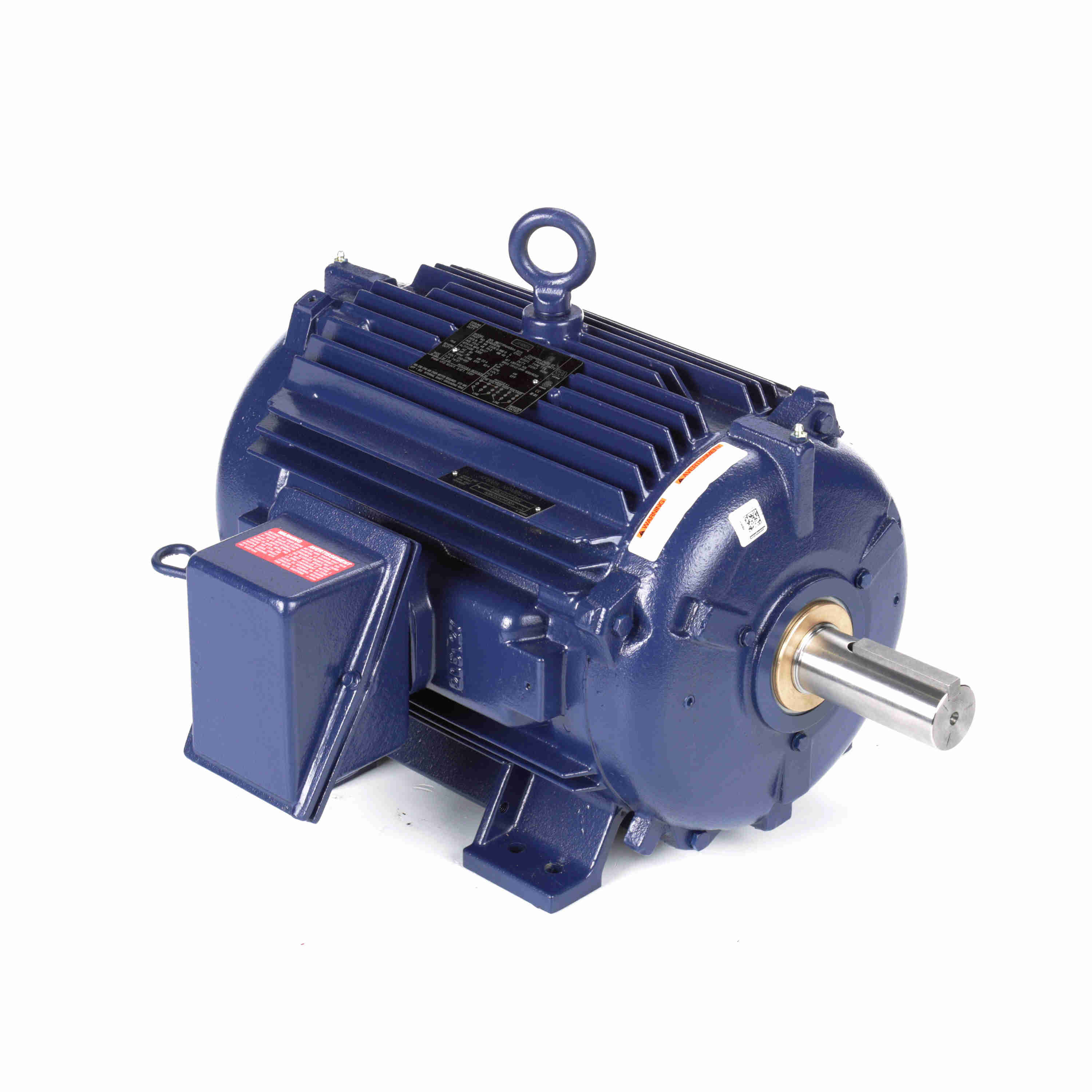

Leeson Electric, 825081.00, 25HP, 1774RPM, 3PH, 230V;460V, 284TC Frame, C-Face Flange, Foot Mount, TEFC, Explosion Proof Motor

Leeson Electric, 825081.00, 25HP, 1774RPM, 3PH, 230V;460V, 284TC Frame, C-Face Flange, Foot Mount, TEFC, Explosion Proof Motorzoom

Attributes

Key Value
Amperage Rating62/31 A
Amps62.0/31.0
ApprovalsCSA, UL
Bearing TypeBall
BearingsBall
CategoryElectric Motor
Class/Group284TTGN16540
CompositionSteel
ConstructionCast Iron
Description:..25HP..1800RPM.284TC.E.
Dimensions26.34 in L x 25.42 in W.
Drive End Bearing Size311
Drive End Bearing TypeBall
Drive End Flange TypeC-Face
Duty CycleContinuous
Efficiency93.6, 93.6%
EnclosureTEFC, Explosion Proof, .
Enclosure MaterialCast Iron
Enclosure TypeEPFC, EPFC (Explosion P.
Estimated Weight375.00
Explosion Proof RatingClass I (Group C,D) Cla.
Family SeriesLeeson Motors, Explosio.
FL Amps62/31&60/30
FL Efficiency93.6
Frame284TC
Frame MaterialCast Iron
Frame RemarksFOOTED
Frequency60
Frequency Rating60 Hz
Gross Weight0 lbs
Hazardous LocationEXP PROOF CL I GR C&D C.
Hertz50, 60
Horsepower25 hp
HP25
Hz60
Insulation ClassClass F, F
Inverter DutyYes - Constant 10:1
Item ConditionFACTORY NEW
Item Number825081.00
KW18.7
ManufacturerLeeson Electric, LEESON.
Manufacturer Part Number825081.00
MaterialCast Iron
Maximum Ambient Tempera.40? C
MFG Part #:825081.00
Model Number284TTGN16540
Motor Shell Length12.75"
MountingFoot Mount, Rigid Base
mountingC-face w/ rigid base
Mounting TypeC-Face/Rigid Base, C-Fa.
NEMA Frame284TC
Net Weight375 lbs
Nominal Voltage240 VAC
Number of Poles4
Number of Speeds1
Opp. Drive End Bearing .210
Opp. Drive End Bearing .Ball
Overall Length26.34", 26.8 "
Part Number825081.00
Phase3, 3 ph
Product SeriesExplosion Proof
Product TypeExplosion Proof, Three .
RotationReversible
RPM1775, 1,800 RPM, 1700 -.
Service Factor1.15
Shaft DiameterUL;CSA, 1.875", 1.875
Shaft Length4.62", 4.62
Shaft Size1.88 in Dia x 4.62 in L
Ship Weight375 lbs.
Special FeaturesExplosion Proof AC Moto.
Speed1774 rpm
Speed (RPM)1774
Supplier:LEESON ELECTRIC CORPORA.
Temperature Rating40 deg C
UPC:691720092767
Voltage230V, 460V, 230/460
Volts230/460

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomelectricmotorwholesale.com8250812646.01In StockLEESON2646.0 @ 1
thumbzoomMRO Supply25280233519.591In StockLeeson3519.59 @ 1
AmazonTPB0773SNCRT4412.851In Stock10Leeson Electric4412.85 @ 1
thumbzoomDealers Electric825081.004695.091In StockLeeson375.04695.09 @ 1
thumbzoommotorsandcontrol.comLE-825081.004827.671In StockLeeson Electric375.04827.67 @ 1
us.rs-online.com733967984917.591In StockLeeson4917.59 @ 1
thumbzoomGalco825081.00-LEES5050.491In StockLeeson375.05050.49 @ 1
thumbzoomemotorpro.com825081.005075.411In StockLeeson375.05075.41 @ 1
thumbzoomWalker Industrial825081-005471.371In Stock17Leeson5471.37 @ 1
thumbzoomGlobal IndustrialWBB5875775639.01In StockLeeson5639.0 @ 1
kscdirect.comLEE 825081.005928.181In StockLEESON ELECTRIC CORPORATION5928.18 @ 1
thumbzoompumpproducts.com825081.006548.921In StockLeeson6548.92 @ 1
thumbzoomRaptor SuppliesAJ2UMD6941.648611In StockLEESON6941.64861 @ 1
