Littelfuse LFJ600302PID

B013FE0002

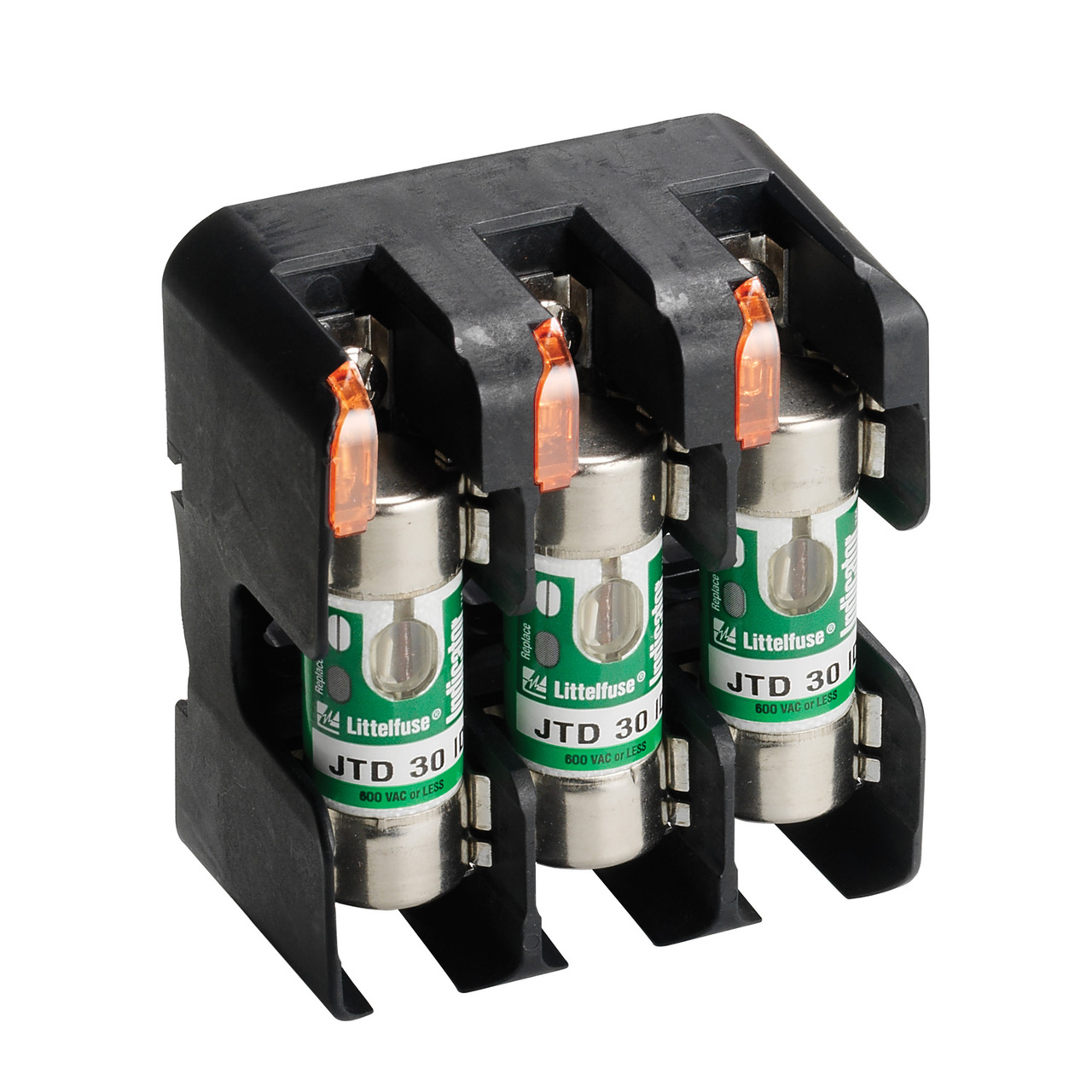

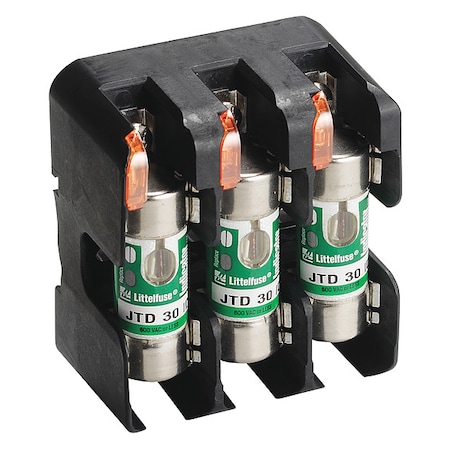

Littelfuse LFJ600302PID Fuse Block T67409

Littelfuse LFJ600302PID Fuse Block T67409zoom

Attributes

Key Value
Additional InformationMax Amps: 30 Amps|Fuse .
Amp Range0 to 30 A
Amperage Rating30, 30 A
Ampere Rating (A)30
ApprovalsCSA, UL
Body MaterialThermoplastic
CategoryCircuit Protection
ClassJ
ColorBlack
CompositionPhenolic
Connection typePressure Plate
Connection TypePressure Plate, Pressur.
Connector TypePressure Plate
Contact Finish-
Contact Material-
Country of Origin (subj.China
Current Rating (Amps)30 A
Depth (in)3
DescriptionFUSE BLOK CART 600V 30A.
Description:600V CLASS J BLOCK WITH.
Detailed DescriptionFuse Block 30 A 600V 2 .
Digi-Key Part NumberLFJ600302PID-ND
Dimensions2.2 in W x 1.95 in D x .
EnclosedNo
Family SeriesLittelfuse Fuseblocks &.
FeaturesPhenolic Blocks Have Si.
Fits Fuse TypeIndustrial
For Use With/Related Pr.Class J Fuses
Fuse Block DesignOpen
Fuse Block StyleNonrejection
Fuse ClassJ
Fuse Diameter0.811, 0.811 in
Fuse Length2.252 in, 2.252
Fuse Size0.813" Dia x 2.25" L (2.
Fuse TypeClass J, Cartridge
Fuse UL ClassJ
Fuseholder TypeBlock
Gross Weight0.15 lbs
Height3.70 in
IndicatingYes
ItemFuse Block
Item NumberLFJ60030-2PID
Length2.20 in
Length (Straight Wirewa.2.20 in
ManufacturerLittelfuse Inc., Littel.
Manufacturer Part NumberLFJ600302PID
Manufacturer Product Nu.LFJ600302PID
Manufacturer Standard L.20 Weeks
Max Current30 A
MFG Part #:LFJ60030-2PID
MfrLittelfuse Inc.
Mounting MethodBolt-In / DIN Rail
Mounting StyleBolt-Down, DIN Rail
Mounting typeBolt-In/DIN Rail
Mounting TypeBolt-In/DIN Rail, DIN R.
Net Weight0.335 lbs
Number of Circuits2
Number of Poles2
Orientation-
PackageBox
Poles2
Product SeriesLFJ
Product StatusActive
Promotion RestrictionNot eligible for promot.
ReinforcedNo
RoHSYes
SeriesLF, LFJ
Spring Reinforced ClipYes
StandardsUL94 V-0, UL Listed, CS.
Suitable For Use WithJTD/JTD_ID Series Time .
Supplier:Littelfuse
Temperature Rating125 deg C
Temperature Rating (Deg.125
Termination StyleScrew Terminal, Pressur.
Touch SafeNo
Trip IndicatorYes
TypeFuse Block, Indicating
UPC:079458181807
VAC (V)600
Visual IndicationIndicating
Voltage600V, 600 V
Voltage Rating600, 600V AC/DC, 600 VAC
Water ResistantNo
Width1.95 in
Wire Range14 to 6 AWG (Cu)
Wire Size14 to 10 AWG Cu, 14 to .

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG761216913.01In Stock92Littelfuse0.3813.0 @ 1
thumbzoomstandardelectricsupply.com222085629.231In StockLittelfuse29.23 @ 1
Newark90T567336.241In StockLITTELFUSE36.24 @ 1
thumbzoomgordonelectricsupply.comLFJ60030-2PID38.891In StockLITTELFUSE38.89 @ 1
thumbzoomLighting SupplyLFJ600302PID42.521In StockLittelfuse42.52 @ 1
thumbzoomGalcoLFJ60030-2PID-LF45.71In StockLittelfuse0.33545.7 @ 1
thumbzoommayerelectric.comLFULFJ600302PID46.741In StockLITTELFUSE46.74 @ 1
thumbzoomDigi-Key266631557.5641In StockLittelfuse Inc.57.564 @ 1
kscdirect.comLF LFJ60030-2PID58.951In StockLITTELFUSE58.95 @ 1
GuardianLIT-LFJ600302PID60.151In StockLITTELFUSE60.15 @ 1
thumbzoomcbtcompany.comLFJ60030-2PID61.321In StockLittelfuse61.32 @ 1
thumbzoomWalker IndustrialLFJ60030-2PID66.361In Stock17Littelfuse66.36 @ 1
thumbzoomPlatt.com057388478.841In StockLittelfuse78.84 @ 1
