Marathon X009

mpnX009
brandname: MARATHON
manufacturername: MARATHON

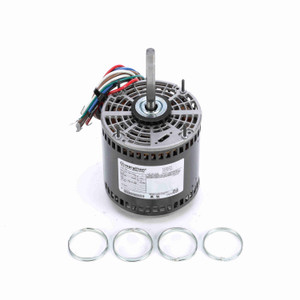

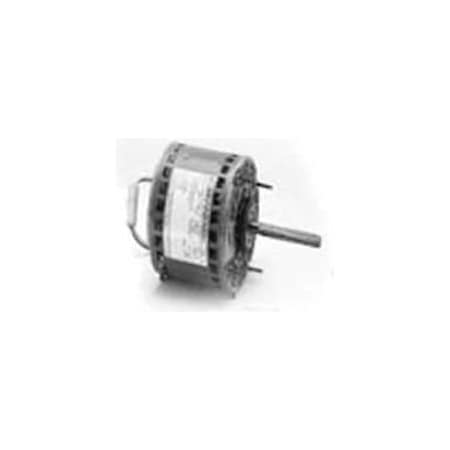

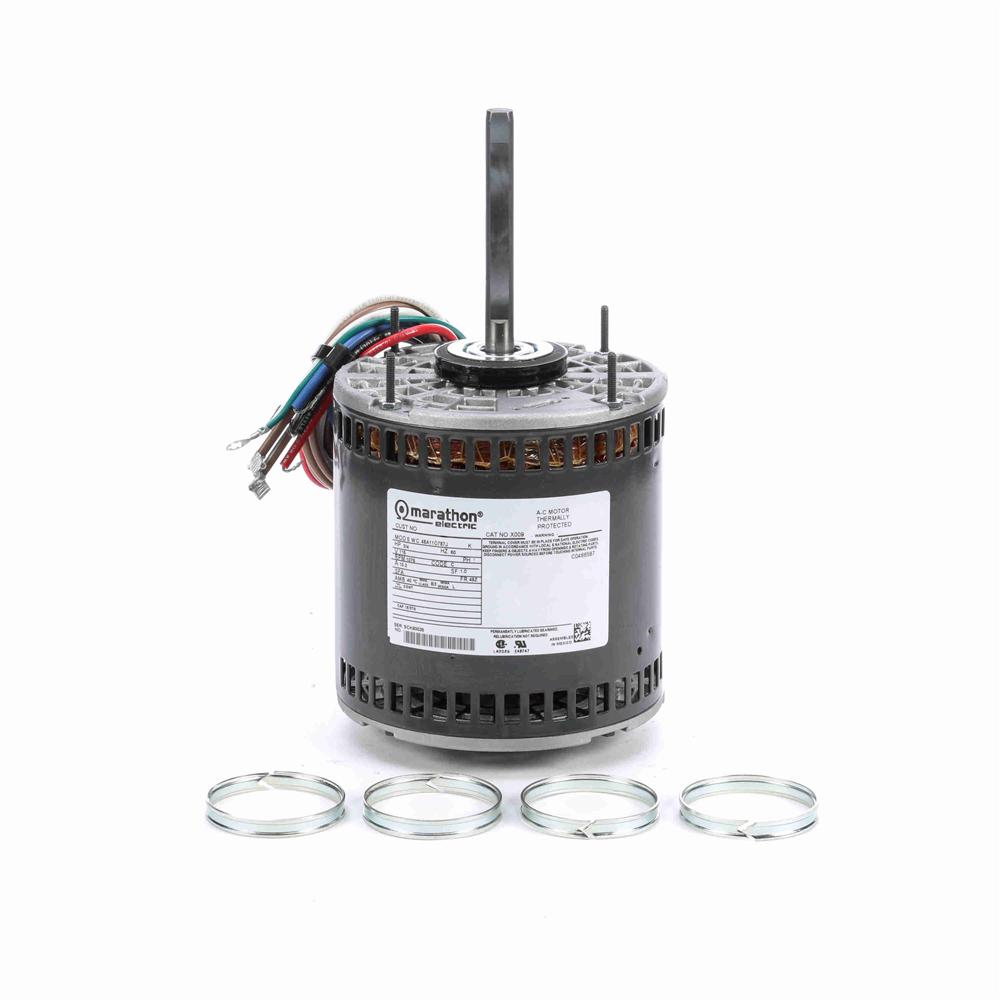

Marathon X009 HVAC Motor

Marathon X009 HVAC Motor

zoom

Brand: Marathon
PartNumber: X009
Manufacturer: Marathon
Label: Marathon

Attributes

Key	Value
Alternate Mfr Part Numb.	048A11O787
Amps	10.2
Bearings	Ball
Brand	Marathon
C-Dimension	10.75 (in.) (in.)
Capacitor	15MFD/370VAC Required
Catalog Number	X009
CE	N
CSA	Y
Current Rating	10.2 A
DE Bearing Type	Ball
DEM Reference	NOHP
Duty	Continous
Duty Cycle	Continuous
Efficiency	64, 0.64
Electrical Type	Permanent Split Capacit.
Enclosure	OPAO
Enclosure Material	Steel
Enclosure Type	OAO (Open Air Over), Op.
Frame	48Z
Frame Material	Rolled Steel
Frame Type	48Z
Frequency	60, 60 Hz
Gross Weight	0 lbs
Horsepower Rating	0.75 HP
HP	3/4
Hz	60
Insulation Class	B
Insulation Type	Class B
IP Code	10
KVA Code	C
Manufacturer Model #	048A11O787
Max Ambient	40?C
Maximum Ambient Tempera.	40? C
Motor Diameter	5-5/8"
Motor Orientation	Horizontal
Motor Shell Length	5.25"
Mounting	Base/Stud
Mounting Orientation	Horizontal
Mounting Type	Resilient Ring - Extend.
Number of Speeds	3
ODE Bearing Type	Ball
Overall Length	10.75"
Phase	1, 1 Phase
Product Category	HVAC/R Motors > Fan an.
Product Type	PSC (Permanent Split Ca.
Rotation	Reversible, Selective C.
RPM	1075 RPM, 1075
RPM (Nameplate)	1075
RPM (Number of Poles)	6 (901 RPM to 1200 RPM)
Service Factor	1
Shaft Diameter	1/2 (in.), 1/2"
Shaft Extension	4.06 (in.) (in.)
Shaft Length	4.06"
Shaft Type	Single Special Extension
Ship Weight	20 lbs.
Special Features	Service Factor - 1
Speeds	3
Standards	UL Recognized
Supply Voltage	115 VAC
Thermal Protection	Automatic
Type	Permanent Split Capacit.
Type of Overload Protec.	Automatic Lock Rotor On.
UL	Recognized
UPC Code	722856038593
Voltage	115
Volts	115

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	electricmotorwholesale.com	X009	165.0	1	In Stock		MARATHON		165.0 @ 1
	ktool.net	X009	169.53	1	In Stock		Marathon Motors		169.53 @ 1
	Galco	X009-MARA	181.97	1	In Stock		Marathon Electric		181.97 @ 1
	Square One	X009	184.0	1	In Stock		MARATHON MOTOR		184.0 @ 1
	emotorpro.com	X009	203.08	1	In Stock		Marathon	20.0	203.08 @ 1
	midwestapplianceparts.com	X009-MT-P	210.63	1	In Stock		Marathon		210.63 @ 1
	us.rs-online.com	72237927	215.72	1	In Stock		Marathon Motors		215.72 @ 1
	Dreisilker	MA-RBC-X009	223.41	1	In Stock		Marathon		223.41 @ 1
	National Supply Network	B871854	225.97	1	In Stock		MARATHON MOTORS		225.97 @ 1
	MRO Supply	2269562	228.29	1	In Stock		Marathon Electric		228.29 @ 1
	Guardian	MARSX009	276.88	1	In Stock		Marathon		276.88 @ 1
	industrialmotors.com	X009	301.8	1	403		MARATHON ELECTRIC		301.8 @ 1
	Zoro	G104937223	374.99	1	In Stock	10	Marathon Motors		374.99 @ 1
