Marathon Electric X018

mpnX018
brandname: MARATHON
manufacturername: MARATHON

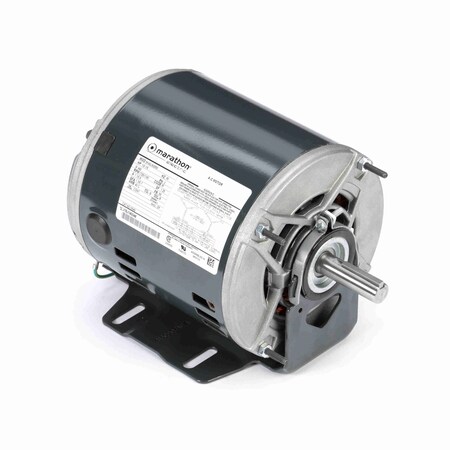

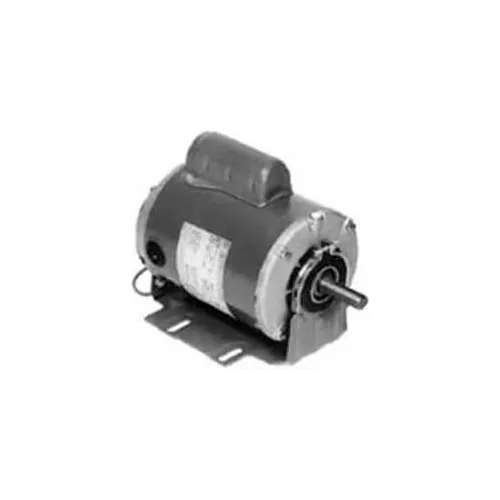

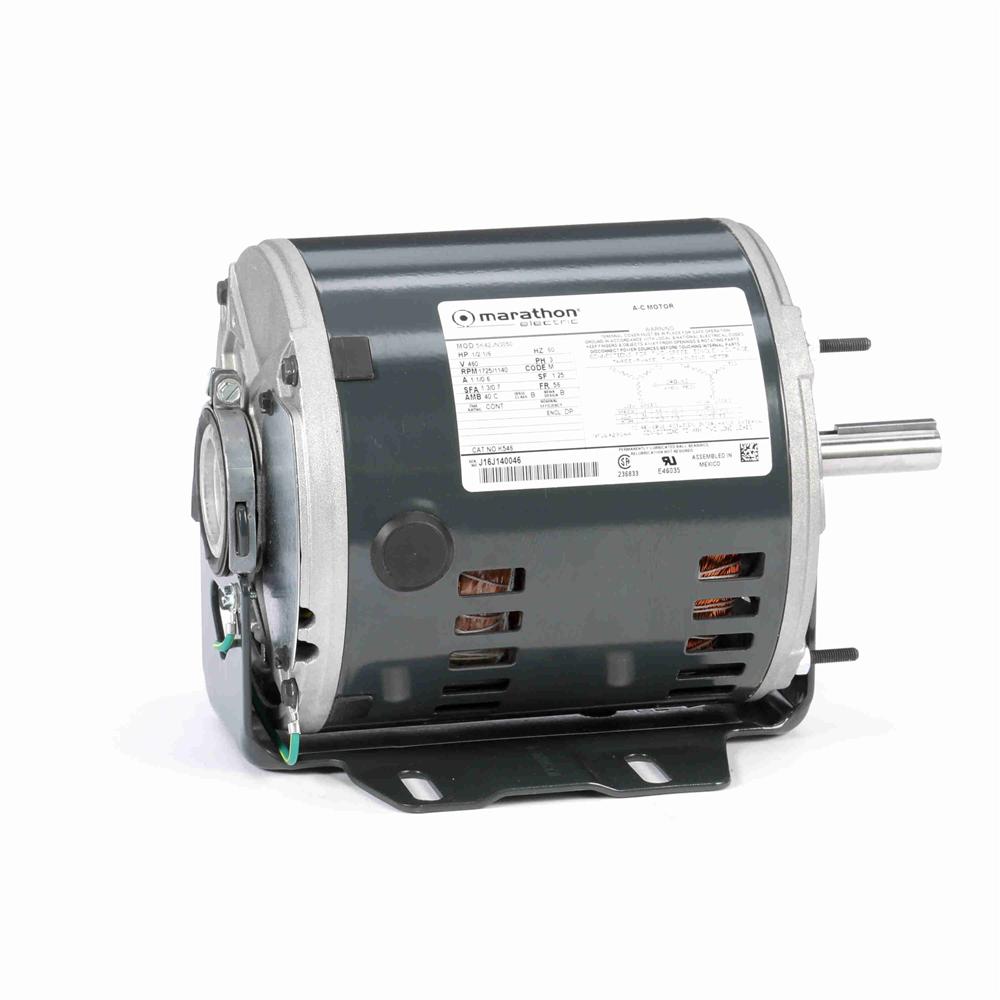

Marathon X018 48Y Frame Open Air Over 48A11O1350 Direct Drive Motor 1/4 hp, 1075 RPM, 277 VAC, 1 Phase, 3 Speeds, Ball Bearing, Permanent Split Capacitor, Thru-Bolt

Brand: Marathon Electric
PartNumber: X018
Model: MX018
PackageQuantity: 1
Binding: Misc.
Manufacturer: Marathon Electric
Label: Marathon Electric

Attributes

Key	Value
Alternate Mfr Part Numb.	048A11O1350
Amps	1.6
Approvals	CSA, UR
Bearing Type	Ball
Bearings	Ball
Brand	Marathon
C-Dimension	9.25 (in.) (in.)
Capacitor	7.5MFD/370VAC Required
Catalog Number	X018
CE	N
Composition	Rolled Steel
Country of Origin (subj.	United States
CSA	Y
Current Rating	1.6 A
DE Bearing Type	Ball
DEM Reference	NOHP
Duty	Continous
Duty Cycle	Continuous
Efficiency	0.612, 61.2
Efficiency %	61.2 %
Electrical Type	Permanent Split Capacit.
Enclosure	OPAO, Open Air Over
Enclosure Material	Steel
Enclosure Type	OAO (Open Air Over), Op.
Family Series	Marathon Electric Motors
Frame	48Y
Frame Material	Rolled Steel
Frame Type	48Y
Frequency	60, 60 Hz
Gross Weight	0 lbs
Horsepower	1/4 hp
Horsepower Rating	0.25 HP
HP	1/4
Hz	60
Insulation Class	B
Insulation Type	Class B
IP Code	10
Item Number	X018
Kilowatts	0.19 kW
KVA Code	A
Manufacturer	Marathon Electric
Manufacturer Model #	048A11O1350
Manufacturer Part Number	048A11O1350
Max Ambient	40?C
Maximum Ambient Tempera.	40? C
Motor Diameter	5-5/8"
Motor Orientation	Horizontal
Motor Shell Length	3.75"
Mounting	Base/Stud
Mounting Orientation	Horizontal
Mounting Type	Resilient Ring - Extend.
Net Weight	10 lbs
Number of Poles	6
Number of Speeds	3
ODE Bearing Type	Ball
Overall Length	9.25", 9.25 "
Phase	1, 1 Phase
Product Category	HVAC/R Motors > Fan an.
Product Type	PSC (Permanent Split Ca.
Rotation	Reversible, Selective C.
RPM	1075 RPM, 1075, 1,075 R.
RPM (Nameplate)	1075
RPM (Number of Poles)	6 (901 RPM to 1200 RPM)
Service Factor	1
Shaft Diameter	0.5 ", 1/2 (in.), 1/2"
Shaft Extension	4.06 (in.) (in.)
Shaft Length	4.06"
Shaft Type	Single Special Extension
Ship Weight	11 lbs.
Special Features	Service Factor - 1
Speeds	3
Standards	UL Recognized
Supply Voltage	277 VAC
Thermal Protection	Automatic
Type	Permanent Split Capacit.
Type of Overload Protec.	Automatic Lock Rotor On.
UL	Recognized
UPC Code	722856038661
Voltage	277
Voltage (AC)	277 VAC
Volts	277

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Brand	Weight	Preferred Tier
electricmotorwholesale.com	X018	131.0	1	In Stock	MARATHON		131.0 @ 1
Galco	X018-MARA	171.16	1	In Stock	Marathon Electric	10.0	171.16 @ 1
MRO Supply	2269551	173.29	1	In Stock	Marathon Electric		173.29 @ 1
ktool.net	X018	183.39	1	In Stock	Marathon Motors		183.39 @ 1
us.rs-online.com	72238250	202.89	1	In Stock	Marathon Motors		202.89 @ 1
Dreisilker	MA-RBC-X018	211.64	1	In Stock	Marathon		211.64 @ 1
emotorpro.com	X018	219.7	1	In Stock	Marathon	11.0	219.7 @ 1
cbtcompany.com	X018	220.28	1	In Stock	Marathon Electric Motors		220.28 @ 1
midwestapplianceparts.com	X018-MT-P	227.86	1	In Stock	Marathon		227.86 @ 1
National Supply Network	B871946	227.94	1	In Stock	MARATHON MOTORS		227.94 @ 1
Zoro	G002203796	300.95	1	In Stock	Marathon		300.95 @ 1
Global Industrial	WBB871793	697.0	1	In Stock	Marathon Motors		697.0 @ 1
