Marathon Electric X019

B007ZQPLQK

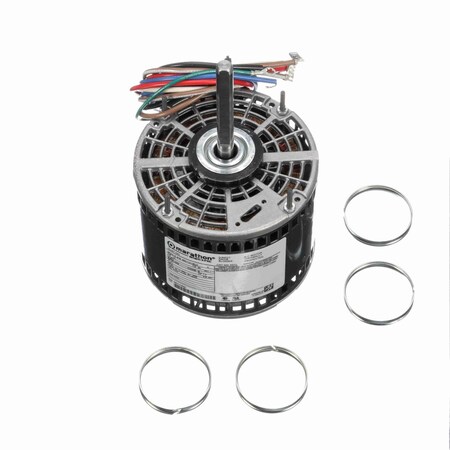

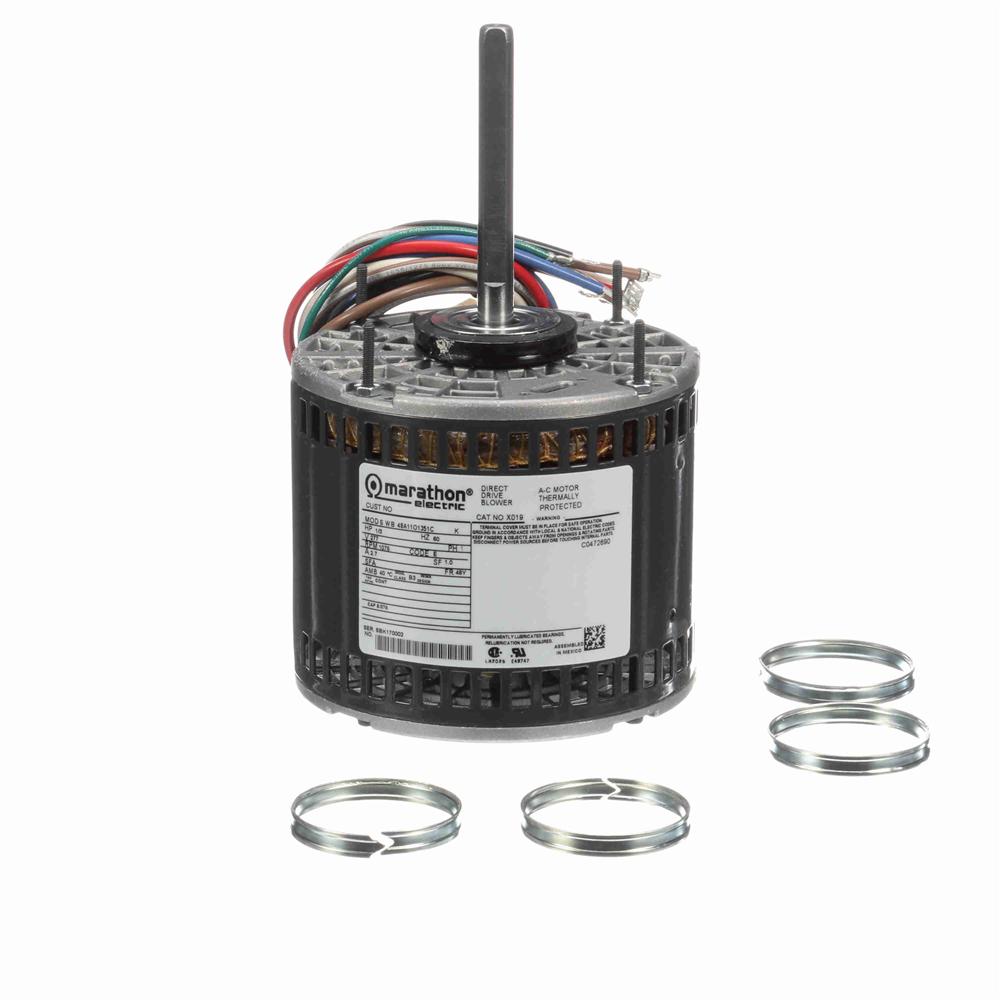

Marathon X019 48Y Frame Open Air Over 48A11O1351 Direct Drive Motor 1/3 hp, 1075 RPM, 277 VAC, 1 Phase, 3 Speeds, Ball Bearing, Permanent Split Capacitor, Thru-Bolt

Marathon X019 48Y Frame Open Air Over 48A11O1351 Direct Drive Motor 1/3 hp, 1075 RPM, 277 VAC, 1 Phase, 3 Speeds, Ball Bearing, Permanent Split Capacitor, Thru-Boltzoom

Attributes

Key Value
Alternate Mfr Part Numb.048A11O1351
Amps2.7
applications:Blowers, Fans
base rpm:1075 rpm
BearingsBall
BrandMarathon
C-Dimension9.75 (in.) (in.)
Capacitor5MFD/370VAC Required
Catalog NumberX019
CEN
Country of Origin (subj.Mexico
CSAY
DE Bearing TypeBall
DEM ReferenceNOHP
DutyContinous
duty / condition type:Continuous Duty
Duty CycleContinuous
Efficiency0.65
Electrical TypePermanent Split Capacit.
EnclosureOPAO
Enclosure MaterialSteel
Enclosure TypeOAO (Open Air Over), Op.
enclosure type:OAO (Open Air-Over)
Frame48Y
Frame MaterialRolled Steel
frame material:Rolled Steel
frame size:48Y
Frame Type48Y
Frequency60
frequency rating:60 Hz
full load current:2.70 A
Gross Weight0 lbs
HP1/3
Hz60
Insulation ClassB
insulation class:B
IP Code10
ip rating:10
KVA CodeE
Manufacturer Model #048A11O1351
Max Ambient40?C
Maximum Ambient Tempera.40? C
motor category:Blower/Fan Motor
Motor Diameter5-5/8"
motor horsepower:0.33 hp, 1/3 hp
Motor OrientationHorizontal
motor phase:1 ph
Motor Shell Length4.25"
motor supply voltage:277 V
MountingBase/Stud
Mounting OrientationHorizontal
Mounting TypeResilient Ring - Extend.
mounting type:Resilient Base/Extended.
Number of Speeds3
ODE Bearing TypeBall
Overall Length9.75"
Phase1
Product CategoryHVAC/R Motors > Fan an.
Product TypePSC (Permanent Split Ca.
RotationReversible, Selective C.
RPM1075
RPM (Nameplate)1075
RPM (Number of Poles)6 (901 RPM to 1200 RPM)
Service Factor1
service factor:1.00
Shaft Diameter1/2 (in.), 1/2"
shaft diameter:0.50 in
Shaft Extension4.06 (in.) (in.)
Shaft Length4.06"
Shaft TypeSingle Special Extension
Ship Weight15 lbs.
Speeds3
standards met:UL, CSA
synchronous rpm:1200 rpm
Thermal ProtectionAutomatic
thermal protection:Automatic
Type of Overload Protec.Automatic Lock Rotor On.
ULRecognized
Voltage277
Volts277
weight:15 lbs

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomelectricmotorwholesale.comX019139.01In StockMARATHON139.0 @ 1
thumbzoommotionindustries.com04740846168.681In StockMarathon Electric168.68 @ 1
thumbzoomapexindustrialautomation.comX019178.58152Marathon178.58 @ 1
thumbzoomGalcoX019-MARA183.281In StockMarathon Electric183.28 @ 1
thumbzoomMRO Supply2269552185.521In StockMarathon Electric185.52 @ 1
us.rs-online.com72650095206.441In StockMarathon Motors206.44 @ 1
thumbzoomDreisilkerMA-RBC-X019226.561In StockMarathon226.56 @ 1
thumbzoomemotorpro.comX019235.211In StockMarathon15.0235.21 @ 1
thumbzoomZoroG906629524238.111In Stock10Marathon238.11 @ 1
thumbzoomNational Supply NetworkB871966243.941In StockMARATHON MOTORS243.94 @ 1
thumbzoommidwestapplianceparts.comX019-MT-P243.941In StockMarathon243.94 @ 1
industrialmotors.comX019245.41128MARATHON ELECTRIC245.4 @ 1
thumbzoomGuardianMARSX019284.741In StockMarathon284.74 @ 1
thumbzoomGlobal IndustrialWBB871825376.951In StockMarathon Motors376.95 @ 1
