Marathon Electric X029

B007ZQPQ3S

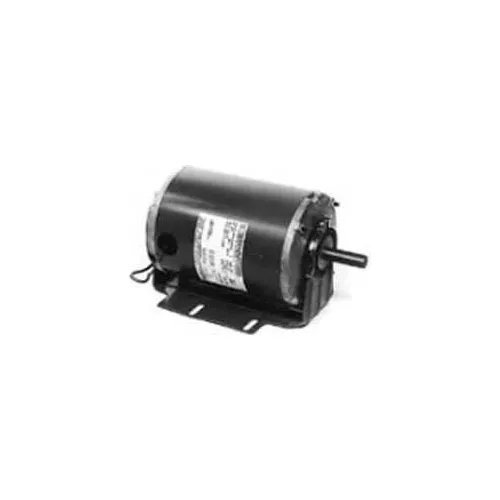

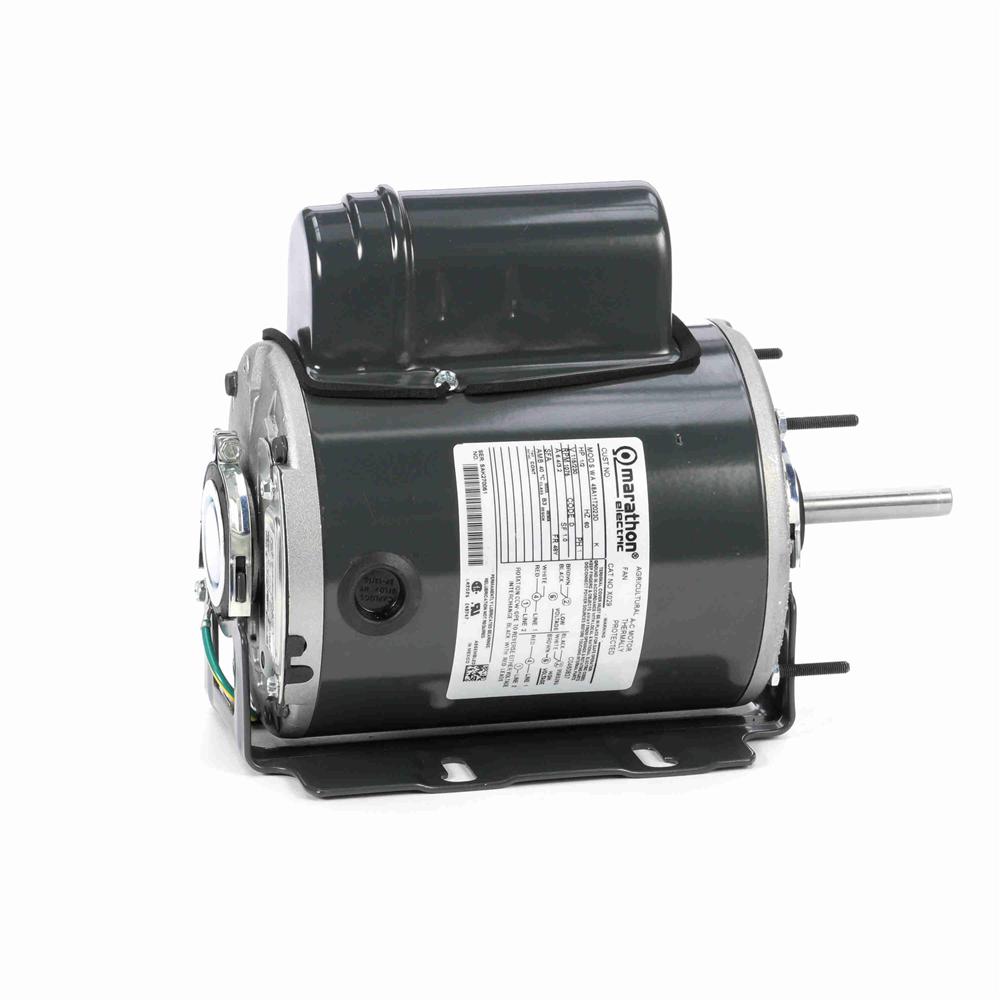

Marathon X029 48YZ Frame Totally Enclosed Farm Duty Exhaust Fan Motor 1/2 hp, 1075 RPM, 115/230 VAC, 1 Phase, 1 Speed, Ball Bearing, Permanent Split Capacitor, Resilient Base

Marathon X029 48YZ Frame Totally Enclosed Farm Duty Exhaust Fan Motor 1/2 hp, 1075 RPM, 115/230 VAC, 1 Phase, 1 Speed, Ball Bearing, Permanent Split Capacitor, Resilient Basezoom

Attributes

Key Value
Alternate Mfr Part Numb.048A11T2023
Amps6.4/3.2
ApprovalsCSA, UR
Bearing TypeBall
BearingsBall
BrandMarathon
C-Dimension10.84 (in.)
CapacitorIncluded
Catalog NumberX029
CEN
CompositionRolled Steel
Country of Origin (subj.United States
CSAY
DE Bearing TypeBall
DEM ReferenceMA#X029
DutyContinuous
Duty CycleContinuous
Efficiency0.683
Efficiency %68.3 %
Electrical TypePermanent Split Capacit.
EnclosureTEAO, Totally Enclosed .
Enclosure MaterialSteel
Enclosure TypeTEAO (Totally Enclosed .
Family SeriesMarathon Electric Motors
Frame48Y
Frame MaterialRolled Steel
Frame Type48Y
Frequency60, 60 Hz
Gross Weight0 lbs
Horsepower1/2 hp
HP1/2
Hz60
Insulation ClassB
IP Code43
Item NumberX029
Kilowatts0.37 kW
KVA CodeD
ManufacturerMarathon Electric
Manufacturer Model #048A11T2023
Manufacturer Part Number048A11T2023
Max Ambient40?C
Maximum Ambient Tempera.40? C
Motor Diameter5-5/8"
Motor OrientationHorizontal
Motor Shell Length6.25"
MountingBase/Stud
Mounting OrientationHorizontal
Mounting TypeResilient Base - Extend.
NEMA Frame48Y
Net Weight22 lbs
Nominal Voltage120 VAC, 240 VAC
Number of Poles6
Number of Speeds1
ODE Bearing TypeBall
Overall Length10.84", 10.84 "
Phase1
Product CategoryLow Voltage NEMA Farm /.
Product TypePSC (Permanent Split Ca.
RotationReversible, Selective C.
RPM1075, 1,075 RPM
RPM (Nameplate)1075
RPM (Number of Poles)6 (901 RPM to 1200 RPM)
Service Factor1
Shaft Diameter0.5 ", 1/2 (in.), 1/2"
Shaft Extension2.56 (in.)
Shaft Length2.56"
Shaft TypeSingle Special Extension
Ship Weight22 lbs.
Speeds1
Thermal ProtectionAutomatic
Type of Overload Protec.Automatic Lock Rotor On.
ULRecognized
Voltage115-230
Voltage (AC)115 VAC, 230 VAC
Volts115, 230, 115/230

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomelectricmotorwholesale.comX029174.01In StockMARATHON174.0 @ 1
thumbzoomGalcoX029-MARA240.921In StockMarathon Electric22.0240.92 @ 1
thumbzoomMRO Supply2270162242.21In StockMarathon Electric242.2 @ 1
thumbzoomapexindustrialautomation.comX029244.1315Marathon244.13 @ 1
thumbzoomemotorpro.comX029270.141In StockMarathon22.0270.14 @ 1
us.rs-online.com72650323271.371In StockMarathon Motors271.37 @ 1
thumbzoomNational Supply NetworkB868696294.611In StockMARATHON MOTORS294.61 @ 1
thumbzoomDreisilkerMA-RBC-X029295.781In StockMarathon295.78 @ 1
thumbzoomGlobal IndustrialWBB868696295.951In StockMarathon Motors295.95 @ 1
thumbzoomcbtcompany.comX029321.871In StockMarathon Electric Motors321.87 @ 1
thumbzoomZoroG602203769402.671In StockMarathon402.67 @ 1
