Marathon Electric X028

B007ZQPPPC

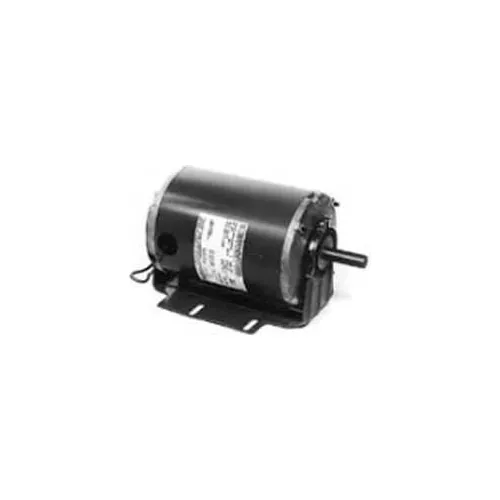

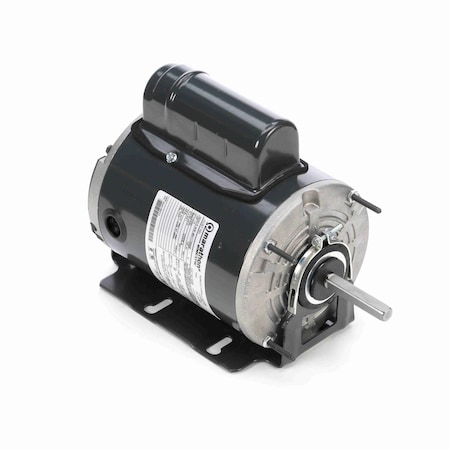

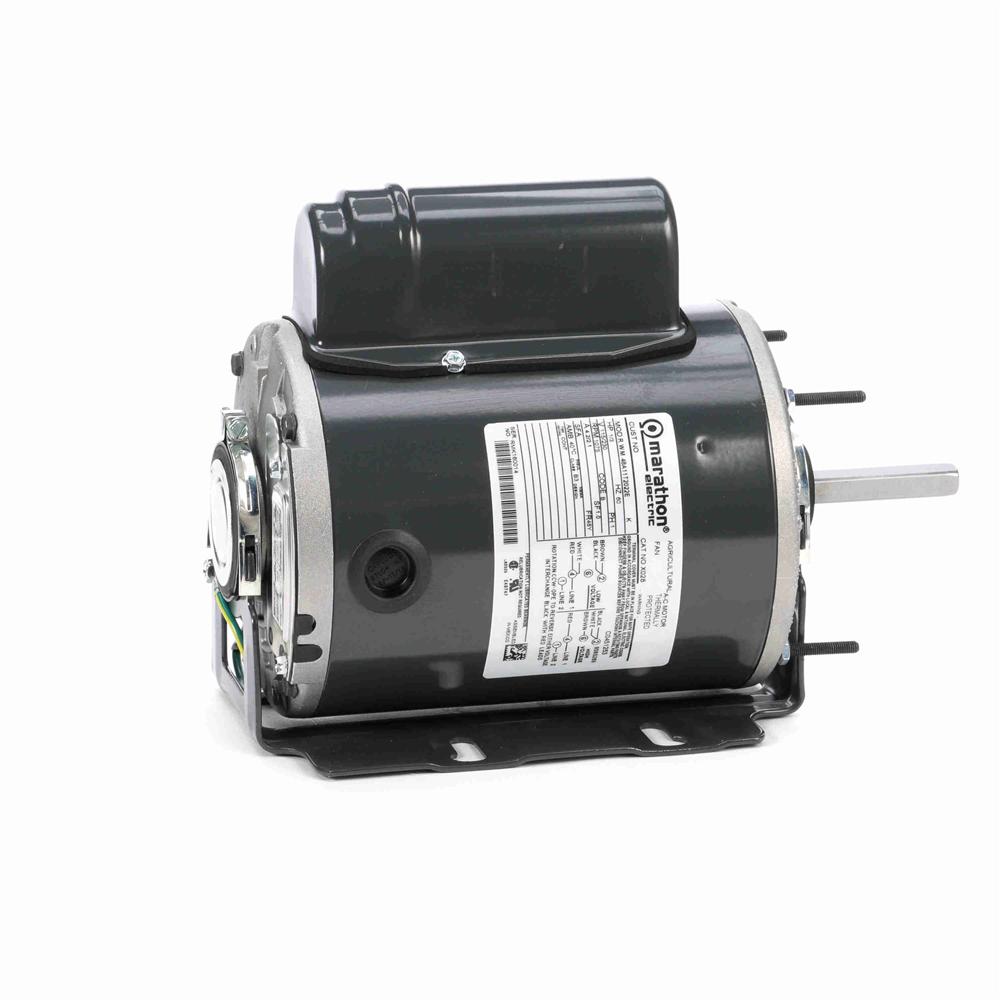

Marathon X028 48YZ Frame Totally Enclosed Farm Duty Exhaust Fan Motor 1/3 hp, 1075 RPM, 115/230 VAC, 1 Phase, 1 Speed, Ball Bearing, Permanent Split Capacitor, Resilient Base

Marathon X028 48YZ Frame Totally Enclosed Farm Duty Exhaust Fan Motor 1/3 hp, 1075 RPM, 115/230 VAC, 1 Phase, 1 Speed, Ball Bearing, Permanent Split Capacitor, Resilient Basezoom

Attributes

Key Value
Alternate Mfr Part Numb.048A11T2022
Amps4.2/2.1
ApprovalsCSA, UR
Bearing TypeBall
BearingsBall
BrandMarathon
C-Dimension10.84 (in.)
CapacitorIncluded
Catalog NumberX028
CEN
CompositionRolled Steel
CSAY
DE Bearing TypeBall
DEM ReferenceMA#X028
DutyContinuous
Duty CycleContinuous
Efficiency0.68
Efficiency %68 %
Electrical TypePermanent Split Capacit.
EnclosureTEAO, Totally Enclosed .
Enclosure MaterialSteel
Enclosure TypeTEAO (Totally Enclosed .
enclosure type:TEAO (Totally Enclosed .
Family SeriesMarathon Electric Motors
Frame48Y
Frame MaterialRolled Steel
frame material:Rolled Steel
frame size:48Y
Frame Type48Y
Frequency60, 60 Hz
frequency rating:60 Hz
Full Load Current4.2 A
full load current:4.20 / 2.10 A
Gross Weight20.99 lbs
Horsepower1/3 hp
HP1/3
Hz60
Insulation ClassB
IP Code43
Item NumberX028
Kilowatts0.25 kW
KVA CodeB
ManufacturerMarathon Electric
Manufacturer Model #048A11T2022
Manufacturer Part Number048A11T2022
Max Ambient40?C
Maximum Ambient Tempera.40? C
motor category:Aeration Fan Motor
Motor Diameter5-5/8"
motor horsepower:0.33 hp, 1/3 hp
Motor OrientationHorizontal
motor phase:1 ph
Motor Shell Length6.25"
motor supply voltage:115/230 V
MountingStud
Mounting OrientationHorizontal
Mounting TypeRound - Extended Studs
mounting type:Resilient Extended Thru.
NEMA Frame48Y
Net Weight20.99 lbs
Nominal Voltage120 VAC, 240 VAC
Number of Poles6
Number of Speeds1
ODE Bearing TypeBall
Overall Length10.84", 10.84 "
overall length (c-dimen.10.84 in
Phase1
Product CategoryLow Voltage NEMA Farm /.
Product TypePSC (Permanent Split Ca.
RotationReversible, Selective C.
RPM1075, 1,075 RPM
RPM (Nameplate)1075
RPM (Number of Poles)6 (901 RPM to 1200 RPM)
Service Factor1
service factor:1.00
Shaft Diameter0.5 ", 1/2 (in.), 1/2"
shaft diameter:0.50 in
Shaft Extension2.56 (in.)
Shaft Length2.56"
Shaft TypeSingle Special Extension
Ship Weight21 lbs.
Speeds1
standards met:UL, CSA
synchronous rpm:1200 rpm
Thermal ProtectionAutomatic
Type of Overload Protec.Automatic Lock Rotor On.
ULRecognized
Voltage115-230
Voltage (AC)115 VAC, 230 VAC
Volts115, 230, 115/230
weight:21 lbs
