Molex / Waldom 39-31-0120

mpn39-31-0120
brandname: Molex Incorporated
manufacturername: Molex Incorporated

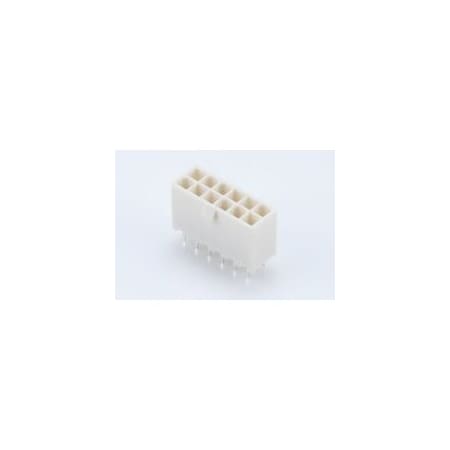

Molex / Waldom 39-31-0120 Connector Power

Molex / Waldom 39-31-0120 Connector Power

zoom

Brand: Molex / Waldom
PartNumber: 39-31-0120
PackageQuantity: 1
Manufacturer: Molex / Waldom
Label: Molex / Waldom

Attributes

Key	Value
Applications	General Purpose, Indust.
Base Product Number	003931
Category	Connectors, Interconnec.
Color	Natural
Connector Type	Header
Contact Finish	Tin Plated
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Finish Thicknes.	35.4?in (0.90?m)
Contact Finish Thicknes.	35.0?in (0.90?m)
Contact Length - Mating	-
Contact Length - Post	0.138"" (3.50mm)
Contact Material	Brass
Contact Plating Thickne.	0.889 ?m
Contact Shape	Square
Contact Type	Male Pin
Current Rating	9 A
Current Rating (Amps)	-
Family Name	Mini-Fit Jr.
Fastening Type	Locking Ramp
Features	-
Flammability Rating	UL 94V-0
Hole Center to Center	4.2 mm
Ingress Protection	-
Insulation Color	Natural
Insulation Height	0.504"" (12.80mm)
Insulation Material	Polyamide (PA66), Nylon.
Mated Stacking Heights	-
Material	Nylon
Material Flammability R.	UL94 V-0
Max. Temp.	240?C
Max. Voltage	600V
Mfr	Molex
Mounting Type	Through Hole
Number of Circuits	12
Number of Contacts	12
Number of Positions	12
Number of Positions Loa.	All
Number of Rows	2
Operating Temperature	-
Overall Contact Length	-
Package	Bulk
Package Quantity	1
Part Status	Active
Pitch - Mating	0.165"" (4.20mm)
Plating Material	Tin
Row Spacing - Mating	0.165"" (4.20mm)
Series	Mini-Fit Jr 5566, 5566 .
Shrouding	Shrouded - 4 Wall
Standards	CSA Certified; UL E29179
Style	Board to Cable/Wire
Terminal Finish	Tin Plated
Terminal Type	Through Hole
Termination	Solder
Voltage Rating	-

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Newark	56H8432	0.354	1	50		MOLEX		0.354 @ 50
	Waldom	MOLEX 39-31-0120	1.04	55	373		MOLEX		1.04 @ 55
	Power and Signal Group	0039310120	1.0555	225	50		Molex		1.0555 @ 225
	TTI	39-31-0120	1.13	10	330		Molex		1.13 @ 50
	Onlinecomponents.com	39-31-0120	1.22	1	50		MOLEX / WALDOM		1.22 @ 50
	jensentools.com	10188590	1.32	1	50		Molex		1.32 @ 50
	Digi-Key	3160232	1.627	1	50		Molex		1.627 @ 50
	Hotenda	H1373115	1.6962	1	280		Molex		1.6962 @ 50
	Allied Electronics	E2841829	1.72	900	50		Molex Incorporated		1.72 @ 900
	us.rs-online.com	71457054	1.77	1	50		Molex Incorporated		1.77 @ 50
	Radwell	39-31-0120	3.24	1	50		MOLEX	1.0	3.24 @ 50
	Zoro	G2755642	101.75	1	50		Molex		101.75 @ 50
