Omron Z-15GQ

B005T85A1W

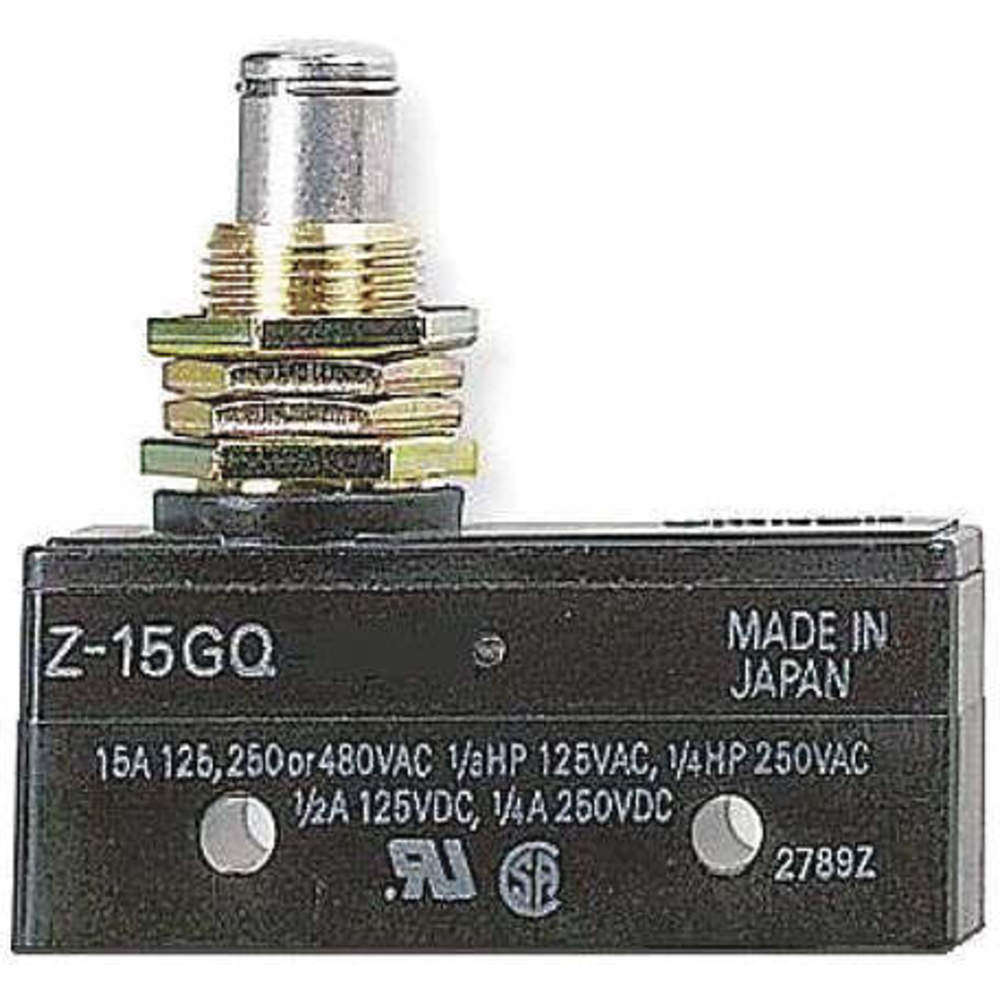

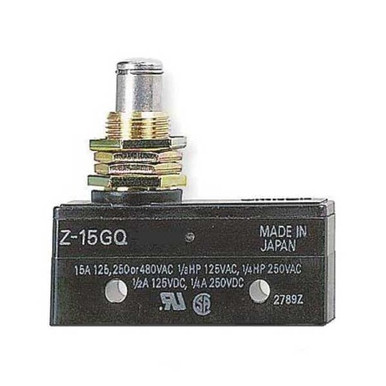

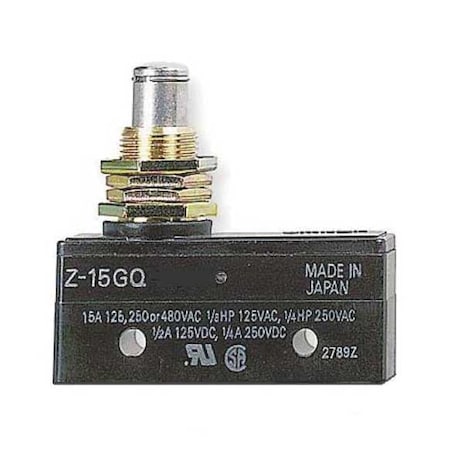

Omron Z-15GQ General Purpose Basic Switch, Panel Mount Plunger, Medium OP, Solder Terminal, 0.5mm Contact Gap, 15A Rated Current

Omron Z-15GQ General Purpose Basic Switch, Panel Mount Plunger, Medium OP, Solder Terminal, 0.5mm Contact Gap, 15A Rated Currentzoom

Attributes

Key Value
AC Contact Rating - Sna.15 A @ 480 V, 15 A @ 48.
Actuator Length0.88"
Actuator TypeOvertravel Plunger, Pan.
Actuator Type - Snap Ac.Panel Mount, Plunger
Alternate Mfr Part Numb.Z15GQ
Base Product NumberZ-15G
Basic Actuator Type - S.Plunger
BrandOmron
CategorySwitches
CircuitSPDT, On-Mom
Contact FormSPDT
Contact Form- SwitchesSPDT
Current Rating15a, 15 A
Current Rating (Amps)15A (AC), 6A (DC), Over.
Current Stock97
Current typeAC/DC
DC Contact Rating - Sna.15 A @ 14 V, 15 A @ 14V
Depth0.69"
Depth - Snap Action Swi.0.69 in
DescriptionSWITCH SNAP ACTION SPDT.
Detailed DescriptionSwitch SPDT Panel Mount
Differential Travel0.002" (0.05mm), 0.217".
Digi-Key Part NumberZ10597-ND
Electrical Connection -.Solder Lug
Electrical Life500,000 Cycles, 10,000,.
Features-, 250 ~ 350gf
Head TypePlunger
Height0.89"
Height - Snap Action Sw.0.89 in
Housing MaterialPhenolic
Ingress Protection-, IP00
International ShippingNo
ItemSnap Switch, Industrial.
Lead TimeExpected to ship in 1-2.
Length1.94"
Lever Actuator Length -.Not Applicable
ManufacturerOmron Automation and Sa.
Manufacturer Product Nu.Z-15GQ
Manufacturer Standard L.10 Weeks
Max. Pretravel0.016 in
Mechanical Life10,000,000 Cycles, 125 V
MfrOmron Automation and Sa.
Mounting Dimension1.00" Centers
Mounting Dimension - Sn.1.00 in Centers
Mounting TypeSolder Lug, Panel Mount
MpnZ-15GQ
Number of Circuits - Sn.1
Operating Force114gf, 19.06 oz, 250 ~ .
Operating Position500,000 Cycles, 0.859" .
Operating Temp. Range-13 Degrees to 176 Deg.
Operating Temperature-25?C ~ 80?C, 0.859" (2.
Over Travel0.217 in
Overtravel-25?C ~ 80?C, 0.217" (5.
PackageActive, Tray
Part StatusSPDT
Pretravel0.015" (0.4mm), 0.002" .
Product StatusActive
Release Force4.02 oz, 0.015" (0.4mm).
SeriesZ Series, Z, Tray
SKUZO-G0913717
Snap Action Switch TypeIndustrial Snap Action .
StandardsUL/CSA/EN 61058-1, UL; .
SubCategoryElectrical
Switch Function15A (AC), 6A (DC), On-M.
Terminal TypeSolder
Termination StyleSolder Lug, IP00
Type of ActuatorPanel Mount Plunger
Voltage Rating125 V, 125/250VAC
Voltage Rating - AC30 V, 125 V
Voltage Rating - DC30 V
Watertight - Snap Actio.No
Width - Snap Action Swi.1.94 in

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Onlinecomponents.comZ15GQ9.8622Omron9.86 @ 2
grainger.caWWG2KRL713.7903141In StockOMRON0.0913.790314 @ 1
AmazonTPB005T85A1W14.131In Stock15Omron14.13 @ 1
thumbzoomsustainablesupply.comC118123315.171In StockOmron0.0915.17 @ 1
thumbzoomkempstoncontrols.co.ukZ-15GQ16.8496381In StockOmron16.849638 @ 1
thumbzoomZoroG091371717.291170Omron0.0917.29 @ 1
Airline HydraulicsOMRON Z-15GQ17.67168Omron17.67 @ 1
RS Delivers776-852017.6761277Omron17.676 @ 1
thumbzoomNewark72Y119218.8314OMRON18.83 @ 1
Master ElectronicsZ15GQ21.721100Omron Automation21.72 @ 1
thumbzoomDigi-Key37003023.61126Omron Automation and Safety23.61 @ 1
us.rs-online.com7035490226.1716Omron Automation26.17 @ 1
thumbzoomsimsupply.comZO-G091371727.45197Omron27.45 @ 1
thumbzoomRaptor SuppliesAC2JTE29.33043751In StockOMRON29.3304375 @ 1
thumbzoomMisumi USAZ-15GQ29.851In Stock15OMRON29.85 @ 1
