Omron Z-15GS

mpnZ-15GS
brandname: Omron Automation and Safety
manufacturername: Omron Automation and Safety

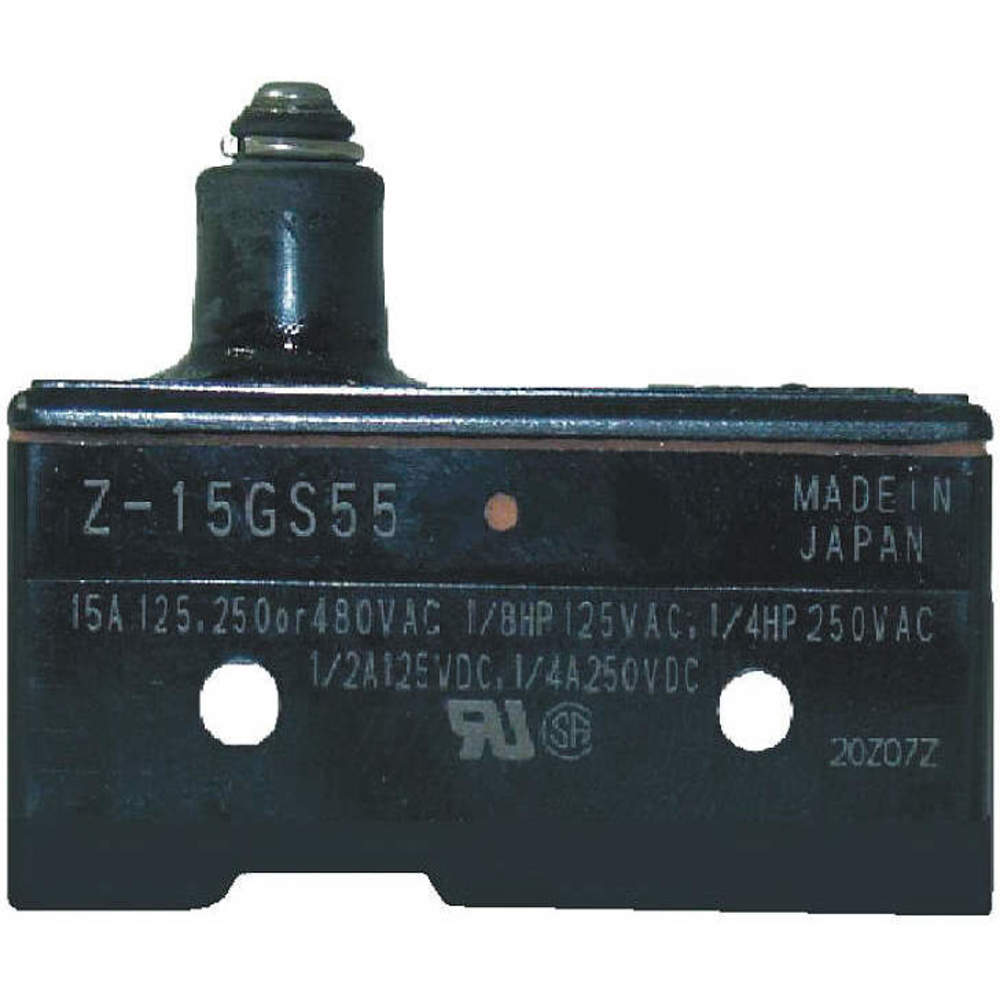

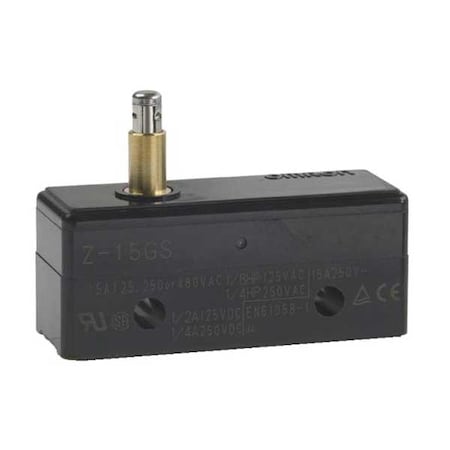

Omron Z-15GS General Purpose Basic Switch, Slim Spring Plunger, Solder Terminal, 0.5mm Contact Gap, 15A Rated Current

Omron Z-15GS General Purpose Basic Switch, Slim Spring Plunger, Solder Terminal, 0.5mm Contact Gap, 15A Rated Current

zoom

Brand: Omron
PartNumber: Z-15GS
Model: Z-15GS
PackageQuantity: 1
Binding: Misc.
Manufacturer: Omron
Label: Omron

Attributes

Key	Value
AC Contact Rating - Sna.	15 A @ 480 V
Actuator Length	0.54"
Actuator Type	Round (Pin Plunger)
Actuator Type - Snap Ac.	Plunger
Alternate Mfr Part Numb.	Z15GS
Brand	Omron
Circuit	SPDT
Contact Form- Switches	SPDT
Current Rating (Amps)	15A (AC), 6A (DC)
DC Contact Rating - Sna.	15 A @ 14 V
Depth	0.69"
Depth - Snap Action Swi.	0.69 in
Differential Travel	0.002" (0.05mm)
Electrical Life	500,000 Cycles
Features	-
Height	0.84"
Height - Snap Action Sw.	0.84 in
Housing Material	Phenolic
Ingress Protection	IP00
International Shipping	No
Item	Industrial Snap Action .
Length	1.94"
Lever Actuator Length -.	Not Applicable
Mechanical Life	20,000,000 Cycles
Mfr	Omron Automation and Sa.
Mounting Dimension	1.00" Centers
Mounting Dimension - Sn.	1.00 in Centers
Mounting Type	Chassis Mount
Mpn	Z-15GS
Operating Force	8.83 to 12.36 oz, 250 ~.
Operating Position	1.110" (28.2mm)
Operating Temp. Range	-13 Degrees to 176 Deg.
Operating Temperature	-25?C ~ 80?C
Overtravel	0.062" (1.6mm)
Part Status	Active
Pretravel	0.015" (0.4mm)
Release Force	114gf, 4.02 oz
Series	Z
SKU	ZO-G2168241
Standards	UL; CSA; EN 61058-1
SubCategory	Electrical
Switch Function	On-Mom
Terminal Type	Solder
Termination Style	Solder Lug
Type of Actuator	Slim Spring Plunger
UPC	4536854264542
Voltage Rating	125/250VAC
Voltage Rating - AC	125 V
Voltage Rating - DC	30 V
Width - Snap Action Swi.	1.94 in

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Zoro	G2168241	9.89	1	In Stock		Omron	0.04	9.89 @ 1
	sustainablesupply.com	C1181229	11.32	1	In Stock		Omron	0.04	11.32 @ 1
	Airline Hydraulics	OMRON Z-15GS	13.89	1	In Stock		Omron		13.89 @ 1
	kempstoncontrols.co.uk	Z-15GS	14.771367	1	In Stock		Omron		14.771367 @ 1
	simsupply.com	ZO-G2168241	16.28	1	In Stock		Omron		16.28 @ 1
	Newark	89C8888	16.41	1	20		OMRON INDUSTRIAL AUTOMATION		16.41 @ 1
	us.rs-online.com	71152822	19.72	1	12		Omron Automation		19.72 @ 1
	Raptor Supplies	AE4CFQ	30.4477875	1	In Stock		OMRON		30.4477875 @ 1
