Ruland ENSP30-8-A

mpnENSP30-8-A
brandname: Ruland
manufacturername: Ruland

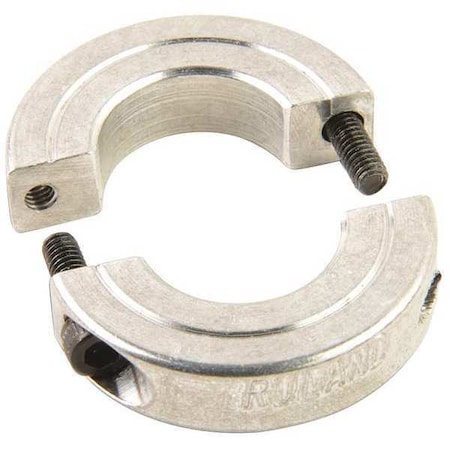

Ruland ENSP30-8-A 2024 Aluminum Shaft Collar, Thin Line, Two Piece, 0.315" Width, 1.181" OD, 0.5000" Bore

Ruland ENSP30-8-A 2024 Aluminum Shaft Collar, Thin Line, Two Piece, 0.315" Width, 1.181" OD, 0.5000" Bore

zoom

Brand: Ruland
PartNumber: ENSP30-8-A
Model: ENSP30-8-A
Size: 0.5000"
PackageQuantity: 1
Binding: Misc.
Manufacturer: Ruland Manufacturing Co., Inc.
Label: Ruland Manufacturing Co., Inc.

Attributes

Key	Value
Bore (B1)	0.5000 in
Bore Dia.	1/2 in
Bore Diameter	1/2 in
Bore Thread Size	Not Applicable
Bore Tolerance	+0.0020 in / +0.0005 in
Bore Width	Not Applicable
Clearance Dia.	1.27 in
Clearance Diameter	32.3 mm
Clearance Diameter (C) .	1.27 in
Collar Outside Diameter	30 mm
Collar Style	Clamp
Collar Width	8 mm
Country of Origin	USA
Dimension Type	Inch
Finish Specification	Bright, No Plating
For Shaft Diameter	1/2 in
Forged Clamp Screw	M3 x 10
Hex Wrench Size	2.5 mm
Inside Height to Flat	Not Applicable
Keyway Depth	Not Applicable
Keyway Width	Not Applicable
Lever Height	Not Applicable
Lever Length	Not Applicable
Manufacturer	Ruland Manufacturing
Material	2024 Aluminum
Material Specification	2024-T351 Aluminum Bar
Mount Hole Thread Size	Not Applicable
Note 1	Performance ratings are.
Number of Pieces	2
Number of Screws	2 ea
Outer Diameter (OD)	1.181 in
Outside Dia.	1 13/16 in
Recommended Gap	0.063 in
Recommended Shaft Toler.	+0.0000 in / -0.0005 in
Screw Finish	Black Oxide
Screw Location (R)	0.472 in
Screw Material	Alloy Steel
Screw Size	M3 x 10
Screw Thread Size	M3x10
Seating Torque	2.1 Nm
Tariff Code	8483.60.8000
Temperature	-40?F to 225?F (-40?C t.
UNSPC	31162811
UPC	634529139370
Weight (lbs)	0.028400
Width	5/16 in
Width (W)	0.315 in
Width Tolerance	+0.003 in / -0.010 in, .

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	us.rs-online.com	72621364	13.02	1	In Stock		Ruland Manufacturing		13.02 @ 1
	cbtcompany.com	ENSP30-8-A	13.29	1	In Stock		RULAND MANUFACTURING		13.29 @ 1
	Zoro	G2395045	13.99	1	1		Ruland	0.03	13.99 @ 1
	Ruland	ENSP30-8-A	15.25	1	In Stock		Ruland	0.0284	15.25 @ 1
	motionindustries.com	06266577	20.48	1	In Stock		Ruland Manufacturing Co Inc		20.48 @ 1
