Square D/Telemecanique LUCD12BL

B00CONMZB8

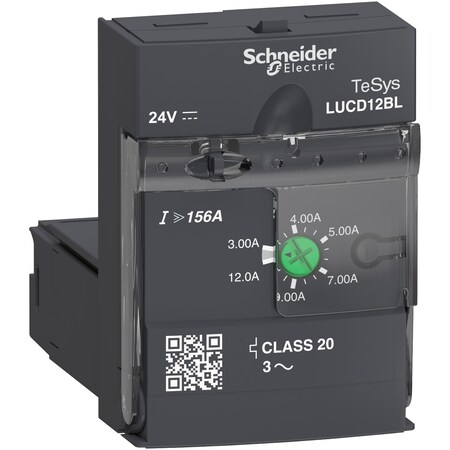

Square D Lucd12Bl 12A 24V Adv Ctrl Unit

Square D Lucd12Bl 12A 24V Adv Ctrl Unitzoom

Attributes

Key Value
[Uc] Control Circuit Vo.24 V DC
[Ue] Rated Operational .690 V AC
[Ui] Rated Insulation V.690 V IEC 60947-6-2 || .
[Uimp] Rated Impulse Wi.6 kV IEC 60947-6-2
Ambient Air Temperature.-25-70 ?C
Ambient Air Temperature.-40-85 ?C
ApplicationMotor control;motor pro.
BrandSchneider Electric
Catalog NumberLUCD12BL
China Rohs RegulationProduct out of China Ro.
Circularity ProfileENVEOLI100414
Coil Voltage24 V DC;20...27 V DC 24.
Coil Volts24V DC
Compatibility CodeLUCD
Control Circuit Voltage.20...27 V DC 24 V in op.
Country of OriginFrance
Depth60 mm
Device Applicationmotor control || motor .
Device Short NameLUCD
Environmental DisclosureENVPEP080204EN
Eu Rohs DirectiveCompliant with Exemptio.
FeaturesProtection against phas.
Fire Resistance960 ?C parts supporting.
Fixing Modeplug-in front face)
Function Availableprotection against phas.
Halogen Content Perform.Halogen free plastic pa.
Heat Dissipation2-2 W control circuit w.
Height66 mm
Hz40 to 60 Hz
Immunity To Microbreaks3 ms
Immunity To Radioelectr.10 V IEC 61000-4-6
Immunity To Voltage Dips70 % / 500 ms IEC 61000.
Ip Degree Of ProtectionIP20 front panel and wi.
ItemAdvcntrlunitcl203Ph 312.
Item Typeadvanced control unit
Load Type3-phase motor self-cool.
Made in USANo
ManufacturerSchneider Electric
Mercury FreeYes
Motor Power Kw5.5 kW 400...440 V AC 5.
MountingFront Side,Plug-In
Network Frequency40...60 Hz
Operating Altitude6561.68 ft (2000 m)
Operating Time35 ms opening with LUB1.
Operating Voltage690V AC
Overload Relay Amp Sett.3 to 12 A
Package Quantity1
Phase Failure Sensitivi.Yes
Power Supply24 VDC
Product CertificationsCE || UL || CSA || CCC .
Product Compatibilitypower base LUB12 || pow.
Product NameTeSys Ultra
Product Or Component Ty.advanced control unit
Product Specific Applic.basic protection and ad.
Protective TreatmentTH IEC 60068
Pvc FreeYes
RangeTeSys
Range Of ProductTeSys Ultra
Reach RegulationReference contains Subs.
Resetmanual reset
Reset TypeSOLID STATE (CLASS 20)
Resistance To Electrost.8 kV 3 in open air IEC .
Resistance To Fast Tran.2 kV 3 serial link IEC .
Resistance To Radiated .10 V/m 3 IEC 61000-4-3
Rohs Exemption Informat.Yes
Safe Separation Of Circ.400 V SELV between the .
Shock Resistance10 gn power poles open .
Size2.36
Special FeaturesProtection against phas.
StandardCE;UL;CSA;CCC;EAC;ASEFA.
StandardsEN 60947-6-2; IEC 60947.
Sub BrandTeSys Ultra;TeSys;LUCD
Sustainable Offer StatusGreen Premium product
Thermal Overload Classclass 20 40-60 Hz -25-7.
Thermal Protection Adju.3-12 A
Tripping Threshold14.2 x Ir +/- 20 %
Typical Current Consump.130 mA 24 V DC I maximu.
UPC785901269601
Utilisation CategoryAC-44 || AC-41 || AC-43
Vibration Resistance2 gn 5-300 Hz power pol.
Voltage Rating600 V CONFORMING TO UL .
Warranty18 months
Warranty DescriptionContractual Warranty:18.
WeeeThe product must be dis.
Width45 mm

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomNex InstrumentLUCD12BL74.01In StockSchneider Electric74.0 @ 1
Newark89H5283104.651In StockSCHNEIDER ELECTRIC104.65 @ 1
thumbzoomgordonelectricsupply.comLUCD12BL107.091In Stock10SQUARE D107.09 @ 1
standardelectricsupply.com2296945126.691In StockSchneider Electric126.69 @ 1
thumbzoomsustainablesupply.comC3039666133.031In StockSchneider Electric0.31133.03 @ 1
steinerelectric.com587807134.241In StockSquare D?134.24 @ 1
thumbzoommayerelectric.comSQDLUCD12BL142.251In StockSQUARE D142.25 @ 1
thumbzoomZoroG0561830149.991In StockSchneider Electric0.31149.99 @ 1
us.rs-online.com71417023178.311In StockSchneider Electric178.31 @ 1
thumbzoomNational Supply Network69664944193.681In StockSchneider Electric193.68 @ 1
thumbzoomcrescentelectric.com34437206.3511Schneider Electric206.35 @ 1
