Square D/Telemecanique LUCD12FU

B00CONN0QC

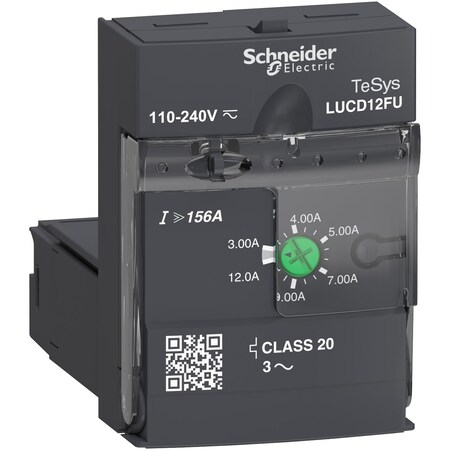

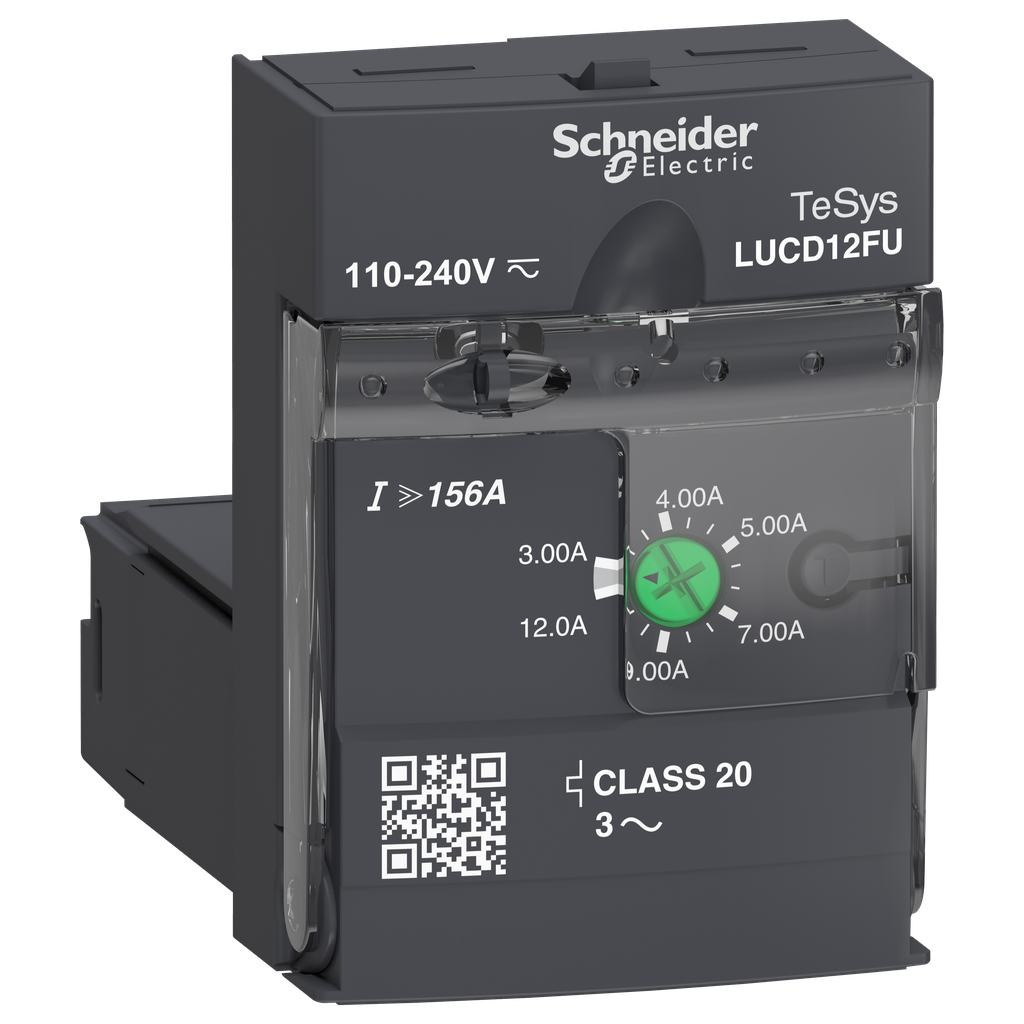

Square D Lucd12Fu 12A 110-240V Ctrl Unit

Square D Lucd12Fu 12A 110-240V Ctrl Unitzoom

Attributes

Key Value
[Uc] Control Circuit Vo.110...240 V AC || 110...
[Ue] Rated Operational .690 V AC
[Ui] Rated Insulation V.690 V IEC 60947-6-2 || .
[Uimp] Rated Impulse Wi.6 kV IEC 60947-6-2
Ambient Air Temperature.-25-70 ?C
Ambient Air Temperature.-40-85 ?C
ApplicationMotor control;motor pro.
BrandSchneider Electric
Catalog NumberLUCD12FU
China Rohs RegulationProduct out of China Ro.
Circularity ProfileENVEOLI100414
Coil Voltage110...240 V AC;110...22.
Coil Volts110 to 240V AC; 110 to .
Compatibility CodeLUCD
Control Circuit Voltage.88...264 V AC 110...240.
Country of OriginFrance
Depth60 mm
Device Applicationmotor control || motor .
Device Short NameLUCD
Environmental DisclosureENVPEP080204EN
Eu Rohs DirectiveCompliant
FeaturesProtection against phas.
Fire Resistance960 ?C parts supporting.
Fixing Modeplug-in front face)
Function Availableprotection against phas.
Halogen Content Perform.Halogen free plastic pa.
Heat Dissipation2-2 W control circuit w.
Height66 mm
Hz40 to 60 Hz
Immunity To Microbreaks3 ms
Immunity To Radioelectr.10 V IEC 61000-4-6
Immunity To Voltage Dips70 % / 500 ms IEC 61000.
Ip Degree Of ProtectionIP20 front panel and wi.
ItemAdvcntrlunitcl203Ph 312.
Item Typeadvanced control unit
Load Type3-phase motor self-cool.
Made in USANo
ManufacturerSchneider Electric
Mercury Freeyes
Motor Power Kw5.5 kW 400...440 V AC 5.
MountingFront Side,Plug-In
Network Frequency40...60 Hz
Non-Dissipating Shock W.1 kV serial mode IEC 60.
Number of Poles3
Operating Altitude6561.68 ft (2000 m)
Operating Time35 ms opening with LUB1.
Operating Voltage690V AC
Overload Relay Amp Sett.3 to 12 A
Phase Failure Sensitivi.yes
Power Supply110/240V
Product CertificationsCE || UL || CSA || CCC .
Product Compatibilitypower base LUB12 || pow.
Product NameTeSys Ultra
Product Or Component Ty.advanced control unit
Product Specific Applic.basic protection and ad.
Protective TreatmentTH IEC 60068
Pvc Freeyes
RangeTeSys
Range Of ProductTeSys Ultra
Reach RegulationReference contains Subs.
Resetmanual reset
Reset TypeSOLID STATE (CLASS 20)
Resistance To Electrost.8 kV 3 in open air IEC .
Resistance To Fast Tran.2 kV 3 serial link IEC .
Resistance To Radiated .10 V/m 3 IEC 61000-4-3
Rohs Exemption Informat.yes
Safe Separation Of Circ.400 V SELV between the .
SeriesLUCD
Shock Resistance10 gn power poles open .
Size2.36
Special FeaturesProtection against phas.
Specifications600 VAC, 3 ph, 12 A, 9 .
StandardCE;UL;CSA;CCC;EAC;ASEFA.
StandardsEN 60947-6-2; IEC 60947.
Sub BrandTeSys Ultra;TeSys;LUCD
Suitable For Use WithLUFC00, LUFDA01, LUFDA1.
Sustainable Offer StatusGreen Premium product
Thermal Overload Classclass 20 40-60 Hz -25-7.
Thermal Protection Adju.3-12 A
Tripping Threshold14.2 x Ir +/- 20 %
Type3-Phase Advanced Manual.
Typical Current Consump.280 mA 110...240 V AC I.
UPC785901269908
UPC Code785901269908
Utilisation CategoryAC-44 || AC-41 || AC-43
Vibration Resistance2 gn 5-300 Hz power pol.
Voltage Rating600 V CONFORMING TO UL .
Warranty18 months
Warranty DescriptionContractual Warranty:18.
WeeeThe product must be dis.
Width45 mm

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomNex InstrumentLUCD12FU67.01In StockSchneider Electric67.0 @ 1
thumbzoomgordonelectricsupply.comLUCD12FU107.091In Stock10SQUARE D107.09 @ 1
thumbzoomRadwellLUCD12FU120.011SCHNEIDER ELECTRIC TELEMECANIQUE120.0 @ 1
thumbzoomstandardelectricsupply.com2202664126.691In StockSquare D (Schneider Electric)126.69 @ 1
thumbzoomsustainablesupply.comC3039616133.031In StockSchneider Electric0.32133.03 @ 1
industrialautomationparts.comAE-009638136.01In StockSchneider Electric136.0 @ 1
thumbzoommostelectric.comLUCD12FU137.71In StockSQUARE D/TELEMECANIQUE137.7 @ 1
thumbzoommayerelectric.comSQDLUCD12FU142.251In StockSQUARE D142.25 @ 1
thumbzoomkempstoncontrols.co.ukLUCD12FU143.0878411In StockSchneider143.087841 @ 1
thumbzoomZoroG0561681149.991In StockSchneider Electric0.32149.99 @ 1
RS Delivers744-8238157.2361In StockSchneider Electric157.236 @ 1
us.rs-online.com70379552177.461In StockSchneider Electric177.46 @ 1
Newark89H5284179.671In StockSCHNEIDER ELECTRIC179.67 @ 1
thumbzoomNational Supply Network69664936196.381In StockSchneider Electric196.38 @ 1
thumbzoomcrescentelectric.com97632206.351In StockSchneider Electric206.35 @ 1
