Square D/Telemecanique 9080GP6

mpn9080GP6
brandname: Square D
manufacturername: Square D

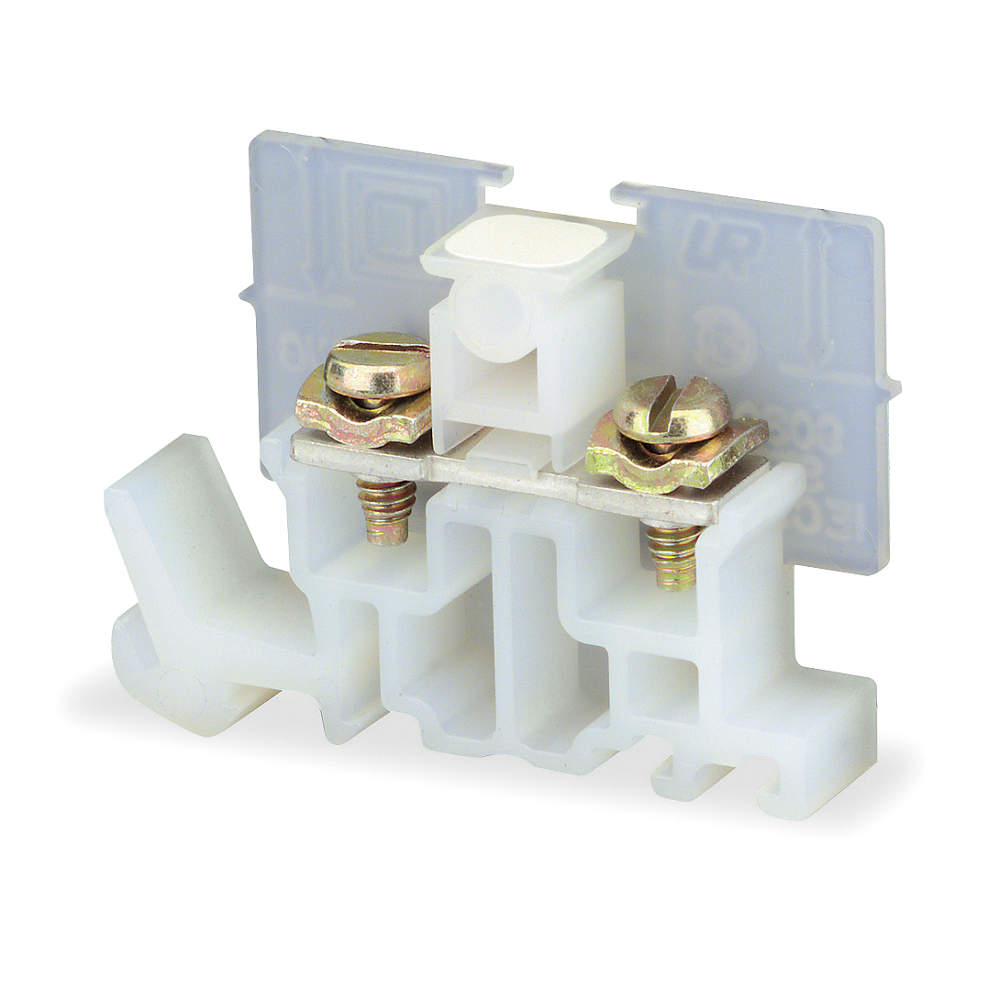

Square D 9080GP6 Terminal Block, 40 Amp

Brand: Square D/Telemecanique
PartNumber: 9080GP6
PackageQuantity: 1
Binding: Misc.
Manufacturer: Square D/Telemecanique
Label: Square D/Telemecanique

Attributes

Key	Value
2-Pole Jumper Compatibi.	2DD04
6-Pole Jumper Compatibi.	2DD05
6-Pole Jumpers	2DD05
Amps	40 A
Application	9080G,GP6B
Block Material	Nylon
Brand	Square D, Square D by S.
Catalog Number	9080GP6
Channel Size	35mm/GH
Circuit Protection Type	None
Color	Natural
Compatible Grainger Par.	2DC93, 2DC94, 2DC97, 2D.
Compatible Manufacturer.	9080 GH22, 9080 GH31, G.
Connection	Clamp terminal zinc pla.
Connection Type	Screw Clamp
Country of Origin	Mexico
Current	40 A
Current Rating	40 A
Current Stock	197
Depth	1.8 in
End Barrier Compatibili.	5B359
For Channel Rail Size	35 mm
For Conductor Material	Copper
For Conductor Type	Solid, Stranded
For Fuse Diameter	3 1/32 in
For Maximum Wire Size	12 AWG
For Minimum Wire Size	18 AWG
Height	1.48 in
Housing Colour	Natural
Housing Material	Nylon
Includes	Adhesive Backed Strips,.
International Shipping	No
Item	Terminal Block
Item Type	Terminal block;GP6B
Lead Time	Expected to ship in 1-2.
Made in USA	No
Manufacturer	Schneider Electric
Material	Nylon block;Tin plated .
Max. Wire Size	12 AWG
Maximum Operating Tempe.	257 Degrees F
Maximum Voltage	600V AC/DC
Min. Wire Size	18 AWG
Minimum Operating Tempe.	-40 Degrees F
Mounting	Din Rail
Mounting Type	DIN
Mpn	9080GP6
Number of Connections	2
Number of Poles	1
Number of Tiers	2
Overall Depth	0.37 in
Overall Length	1.48 in
Overall Width	1.8 in
Pieces per Foot	32
RoHS Compliant	Yes
Series	9080 Series
Size	0.37
SKU	ZO-G0598071
Special Features	SET OF 50
Standard	CE;UL recognized E60616.
Standards	UL94V2, CE, CSA Approve.
SubCategory	Electrical
Temp. Range	-40 Degrees to 275 Deg.
Terminal Block Type	Self-Lifting Pressure W.
Terminal Type	Self-Lifting Pressure W.
Termination Style	Screw
Torque	20 lb-in
UL 94 Flammability Rati.	V-2
UPC	785901155379
UPC Code	785901155379
Voltage	600V AC
Voltage Rating	600 V AC/DC
Warranty Description	Contractual Warranty:18.
Width	0.38 in
Wire Size	12 to 18 AWG, AWG 18....
Wire Size Ranges	18 AWG - 12 AWG

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Brand	Weight	Preferred Tier
us.rs-online.com	70007750	2.15	50	50	Square D		2.15 @ 50
Newark	50F4246	2.15	50	46	SQUARE D BY SCHNEIDER ELECTRIC		2.15 @ 50
steinerelectric.com	32306	2.49	1	46	Square D?		2.49 @ 1
Zoro	G0598071	2.59	1	976	Square D	0.02	2.59 @ 1
mostelectric.com	9080GP6	3.35	1	108	SQUARE D/TELEMECANIQUE		3.35 @ 1
sustainablesupply.com	C1203635	3.47	1	46	Square D	0.02	3.47 @ 1
crescentelectric.com	84065	4.49	1	30	Square D by Schneider Electric		4.49 @ 1
Raptor Supplies	AG7CHA	5.0169015	1	46	SQUARE D		5.0169015 @ 1
grainger.ca	SQD9080GP6	6.52499594	1	46	SQUARE D	0.02	6.52499594 @ 1
simsupply.com	ZO-G0598071	8.81	1	197	Square D		8.81 @ 1
National Supply Network	69682219	13.39	1	46	Square D		13.39 @ 1
standardelectricsupply.com	2255449	124.0	1	46	Square D		124.0 @ 1
