TB Woods 3V4124

B004KA9YG2

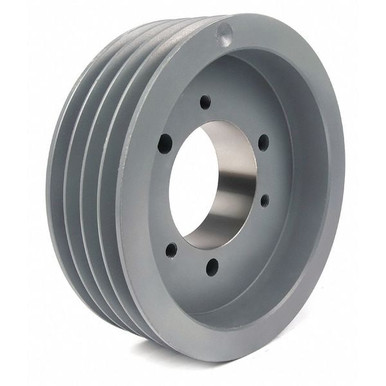

TB Woods 3V4124 Narrow V-Belt Sheave, 3V Belt Section, 4 Grooves, SH Bushing required, Cast Iron, 4.12" OD

TB Woods 3V4124 Narrow V-Belt Sheave, 3V Belt Section, 4 Grooves, SH Bushing required, Cast Iron, 4.12" ODzoom

Attributes

Key Value
3L Pitch DiameterNot Applicable
3V or 3VX Belt Pitch Di.4.12 in
3V Pitch Diameter4.12 in
3VX Pitch Diameter4.12 in
4L Pitch DiameterNot Applicable
5L Pitch DiameterNot Applicable
5V Pitch DiameterNot Applicable
5VX Pitch DiameterNot Applicable
A Pitch DiameterNot Applicable
AX Pitch DiameterNot Applicable
B Pitch DiameterNot Applicable
BalanceStandard, 1 plane
Belt section3V
Belt Section and Type (.3V Cogged, 3V Wedge, 3V.
Bore TypeBushed
Bore typeQuick disconnect bushing
BrandTb Woods
BushingSH
Bushing RequiredSH
BX Pitch DiameterNot Applicable
C Pitch DiameterNot Applicable
ColorGrey
Component WR2 (lbs ft2)0.06
ConstructionSolid
Current Stock11
CX Pitch DiameterNot Applicable
Datum diameter0
Dimension1.25
Dimension (E)0.25
Dimension (L)1.25
Dimension (M)0.41
Face Diameter4.12 in
Face width1.91
Face Width1.91 in
Face width (in)1.91
Fits Shaft Dia.1/2 in to 1-5/8 in
For Belt FamilyCogged Wedge, Wedge
For Belt Section (broad.3V or 3VX
For Belt Trade Size3V, 3VX
For Bushing SizeSH
For Bushing TypeQuick Detachable
For V-Belt Section3V, 3VX
For V-Belt TypeBanded, Cogged, Wedge
Groove cross section se.3V
Hub location0.81
Hub location (in)0.81
I.D.2.88
Industry Number3V4124
Inertia WR?7
Inside diameter (in)2.88
International ShippingNo
ItemStandard V-Belt Pulley
Length through Bore1 1/4 in
MaterialCast Iron
Material FabricationCast
Material typeCast Iron
Max RPM6070
Maximum Bore Diameter1 5/8 in
Minimum Bore Diameter1/2 in
Mpn3V4124
Number of Grooves4
Number of grooves4
O.D.4.12
Outside Diameter4.12 in
Outside diameter (in)4.12
Overall Width1 15/16 in
Pitch diameter4.12
Pitch Diameter4.12 in, Not Applicable
Pitch Diameter for V-Be.3V: 4.12 in
Pulley Bore TypeQuick Detachable Bushed.
Pulley ConstructionPlain
Pulley MaterialCast Iron
Pulley Outside Dia.4.12 in
Pulley TypeStandard V-Belt Pulley
RPM upper limit6070
Set Screw IncludedNo
SKUZO-G2819171
StandardsISO 9001:2015
SubCategoryPower Transmission
UPC698672050760
Weight3.2 lb

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG281917154.991In StockTb Woods3.1954.99 @ 1
thumbzoombscsource.com3V412461.291In StockTB Wood's61.29 @ 1
thumbzoomsimsupply.comZO-G281917163.9111Tb Woods63.9 @ 1
grainger.caWWG5YKT869.74995661In StockTB WOOD'S3.1969.7499566 @ 1
thumbzoomGuardian5551893072.551In StockTB Wood's72.55 @ 1
thumbzoomNational Supply Network5551893077.171In StockTB Wood's77.17 @ 1
thumbzoomMRO Supply34504284.731In StockTB Woods84.73 @ 1
thumbzoomRaptor SuppliesAE7HUJ127.3108591In StockTB WOODS127.310859 @ 1
