- mpn82641 8771000
- brandname: Belden
- manufacturername: Belden

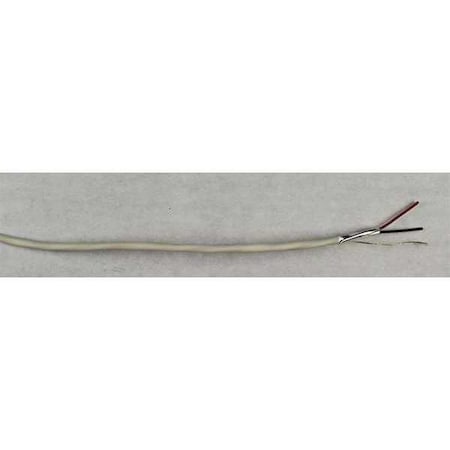

Belden 82641 Plenum Single-Pair Multi-Conductor Cable
- Brand: Belden
- PartNumber: 82641 8771000
- PackageQuantity: 1
- Binding: Electronics
- Manufacturer: Belden
- Label: Belden
Attributes
| Key | Value |
|---|
| Application | For computer and EIA RS. |
| Application - Communica. | Audio Systems, Control . |
| Bend Radius | 1 1/8 in |
| Cable Length | 1,000 ft |
| Cable Type | Multi-Conductor, STP, P. |
| Color | Natural |
| Conductor Insulation | Fluorinated Ethylene-Pr. |
| Conductor Material | Tinned Copper (TC), Cop. |
| Conductor Size | 24 AWG |
| Conductor Size - Data C. | 24 AWG |
| Conductor Strand | 7/32 |
| Configuration | 1 Pair |
| Country of Origin | US - United States |
| Diameter | 0.106 in |
| ECCN | EAR99 |
| Features | Drain Wire |
| Fire Rating - Data Cable | Plenum |
| Insulation Material | Fluorinated Ethylene Pr. |
| Item | Communication Cable |
| Item - Data Cable | Communication Cable |
| Jacket (Insulation) Dia. | 0.106" (2.69mm) |
| Jacket (Insulation) Mat. | Low Smoke Poly-Vinyl Ch. |
| Jacket (Insulation) Thi. | 0.0140" (0.356mm) |
| Jacket Color | Natural |
| Jacket Material | PVC, Low Smoke Polyviny. |
| Jacket Material - Wire . | PVC |
| Length | 1000.0' (304.8m), 1000 . |
| Mfr | Belden Inc. |
| NEC Article and Type | 800 CMP |
| No. of Conductors | 2 |
| Nominal Outside Dia. | 0.106 in |
| Number of Conductors | 2 (1 Pair Twisted), 2 |
| Number of Pairs | 1 |
| Operating Temperature | 0?C ~ 60?C |
| Outer Diameter | 0.106 in. |
| Outside Diameter | 0.1 in |
| Package | Spool |
| Package Type - Data Cab. | Reel in a Box |
| Packaging | Coil |
| Part Status | Active |
| Plenum / Riser Rated | Plenum Rated |
| Product Header | Paired Overall Beldfoil. |
| Ratings | - |
| Series | 82641 Series, - |
| Shield Coverage | 100% |
| Shield Material | Aluminum/Polyester Tape. |
| Shield Type | Foil |
| Shielded | Shielded |
| Shielding | Foil |
| Solid / Stranded | Stranded |
| Spool Length | 1,000 ft |
| Standards | UL NEC Type CMP/cUL CEC. |
| Stranding | 7x32 |
| Suggested Voltage Ratin. | 300 V |
| Temp. Range | 32 Degrees to 140 Degr. |
| Temperature, Rating | 0 to 60 C |
| Thickness | 0.006 in. (Insulation) |
| Total Number of Conduct. | 2 (1 Pair) |
| UNSPSC | 26121600 |
| Usage | Audio, Control, Instrum. |
| Voltage | 300 V |
| Voltage Rating | 300 V |
| Wire Gauge | 24 AWG |
| Wire Size | 24 AWG |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | alldataresource.com | B82641 | 4.41 | 1 | 22 | | Belden | | 4.41 @ 1 |
| Grainger | 48KR51 | 1840.0 | 1 | 22 | 19 | BELDEN | | 1840.0 @ 1 |
| Digi-Key | BEL6241-1000-ND | 2069.34 | 1 | 22 | | Belden Inc. | | 2069.34 @ 1 |
 | Markertek | BL-82641-1000 | 2701.0 | 1 | 22 | | Belden | | 2701.0 @ 1 |
 | Zoro | G3724309 | 3143.99 | 1 | 22 | | Belden | 14.0 | 3143.99 @ 1 |
| Graybar | 99914672 | 3421.8352 | 1000 | 22 | | Belden | | 3421.8352 @ 1000 |
 | Newark | 15B3186 | 3667.25 | 1 | 35 | | BELDEN | | 3667.25 @ 1 |
| us.rs-online.com | 70004812 | 3700.72 | 1 | 22 | | Belden | | 3700.72 @ 1 |
