- mpn46005
- brandname: Chicago-Latrobe
- manufacturername: Chicago-Latrobe

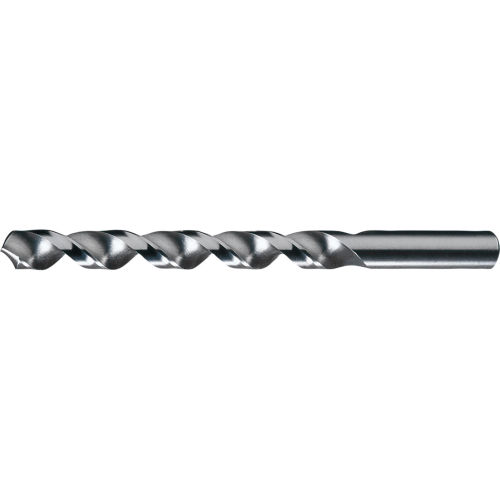

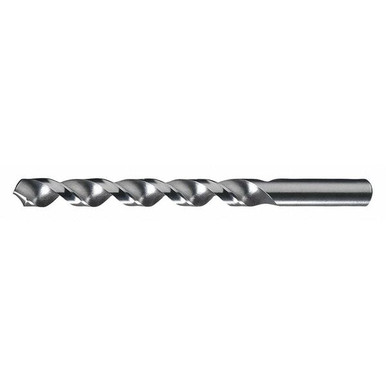

Chicago-Latrobe 46005 150B Jobber Length Drill Bit, 5/64 in Drill - Fraction, 0.0781 in Drill - Decimal Inch, 118 deg Point, HSS, Bright (Each)
- Brand: Chicago Latrobe
- PartNumber: 46005
- PackageQuantity: 12
- Manufacturer: Greenfield
- Label: Greenfield
Attributes
| Key | Value |
|---|
| Applicable Materials | Aluminum, Carbon Steel,. |
| Brand | Chicago-Latrobe |
| Current Stock | 42 |
| Cutting Depth | 1 in |
| Cutting Direction | Right Hand |
| Cutting Edge Material | HSS |
| Decimal Equivalent | 0.0781 |
| Depth x Dia. Ratio | 4xD |
| Depth:Dia. Ratio | 4xD |
| Diameter | 0.078125, 0.0781" |
| Diameter (Fraction) | 5/64" |
| Drill Bit Dimension Type | Fractional Inch |
| Drill Bit Finish | Bright |
| Drill Bit Grouping | Drill Bit |
| Drill Bit Material | High Speed Steel |
| Drill Bit Point Angle | 118 Degrees |
| Drill Bit Size | 5/64 in |
| Drill Construction | High Helix |
| Drill Diameter Measurem. | Imperial |
| Drill Diameter Tolerance | +0.0000 in/-0.0005 in |
| Drill Length Class | Jobber Length |
| Drill Point Length | 0.0235 in |
| Drill Size - Decimal In. | 0.0781 in |
| Drill Size - Fraction | 5/64 in |
| Drill Size System | Fractional |
| Drill Style | Jobber Drill |
| Finish | Bright |
| Flute Length | 1.0000", 1 in |
| Flute Length (Metric) | 25.40mm |
| Flute Type | Right Spiral, Spiral |
| Hand of Cut | Right |
| Hand of Spiral | Right |
| International Shipping | No |
| Item | Jobber Length Drill Bit |
| Material | HSS, High Speed Steel |
| Maximum Drilling Depth | 3/4 in |
| Mpn | 46005 |
| Number of Flutes | 2 |
| Overall Length | 2 in, 2.0000" |
| Overall Length (Metric) | 50.80mm |
| Point Angle | 118 deg, 118, 118? |
| Point Style | Radial |
| Point Type | Radial |
| Series | 150B |
| Shank Configuration | Straight |
| Shank Dia. | 5/64 in |
| Shank Length | 1.0000", 1 in |
| Shank Length (Metric) | 25.40mm |
| Shank Size | 5/64 in Dia x 1 in L, 0. |
| Shank Size (Metric) | 1.98mm |
| Shank Type | Straight |
| SKU | ZO-G2823602 |
| Style | 150B |
| SubCategory | Machining |
| Surface Condition | Bright |
| Through Coolant (Yes/No) | No |
| Tool Size | 5/64" |
| UPC | 662355460054 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Megadepot | 46005 | 1.55 | 1 | 12 | | Chicago-Latrobe | | 1.55 @ 12 |
 | MRO Supply | 6128982 | 1.55 | 23 | 12 | | Chicago-Latrobe | | 1.55 @ 23 |
 | heavydutydepot.com | 46005 | 1.55 | 65 | 12 | | Chicago-Latrobe | | 1.55 @ 65 |
 | Zoro | G2823602 | 2.14 | 1 | 66 | | Chicago-Latrobe | | 2.14 @ 12 |
 | usmegastore.com | 46005 | 2.27 | 1 | 12 | | Chicago-Latrobe | | 2.27 @ 12 |
 | National Supply Network | 81140055 | 3.5425 | 12 | 12 | | Chicago-Latrobe | | 3.5425 @ 12 |
 | Guardian | 81140055 | 3.62 | 1 | 12 | | Chicago-Latrobe | | 3.62 @ 12 |
 | simsupply.com | ZO-G2823602 | 8.34 | 1 | 42 | | Chicago-Latrobe | | 8.34 @ 12 |
 | Global Industrial | WBB2547130 | 19.3128 | 1 | 12 | | Chicago-Latrobe | | 19.3128 @ 12 |
