- mpn49204
- brandname: Chicago-Latrobe
- manufacturername: Chicago-Latrobe

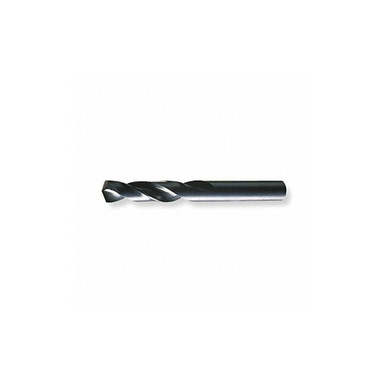

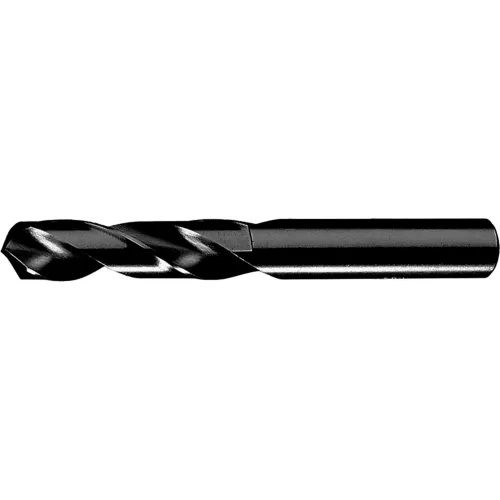

Chicago-Latrobe 49204 159 Heavy Duty Screw Machine Drill, 1/16 in Drill - Fraction, 0.0625 in Drill - Decimal Inch, HSS, Black Steam Oxide (12 Each)


- Brand: Chicago Latrobe
- PartNumber: 49204
- PackageQuantity: 12
- Manufacturer: Greenfield
- Label: Greenfield
Attributes
Key | Value |
---|
Applicable Materials | Alloy Steel, Carbon Ste. |
Brand | Chicago-Latrobe |
Color | Black Oxide |
Current Stock | 97 |
Cutting Depth | 3XD |
Cutting Direction | Right Hand |
Cutting Edge Material | HSS |
Decimal Equivalent | 0.0625 |
Depth x Dia. Ratio | 4xD |
Depth:Dia. Ratio | 4xD |
Diameter | 0.0625", 0.0625 |
Diameter (Fraction) | 1/16" |
Drill Bit Dimension Type | Fractional Inch |
Drill Bit Finish | Black Oxide |
Drill Bit Grouping | Drill Bit |
Drill Bit Material | High Speed Steel |
Drill Bit Point Angle | 135 Degrees |
Drill Bit Size | 1/16 in |
Drill Construction | Heavy-Duty |
Drill Diameter Measurem. | Imperial |
Drill Diameter Tolerance | +0.0000 in /-0.0005 in |
Drill Length Class | Screw Machine Length |
Drill Point Length | 0.0129 in |
Drill Size - Decimal In. | 0.0625 in |
Drill Size - Fraction | 1/16 in |
Drill Size System | Fractional |
Drill Style | Screw Machine Drill |
Finish | Black Steam Oxide |
Flute Length | 0.6250", 5/8 in |
Flute Length (Metric) | 15.88mm |
Flute Type | Right Spiral, Spiral |
Grade | Heavy Duty |
Hand of Cut | Right |
Hand of Spiral | Right |
International Shipping | No |
Item | Screw Machine Drill Bit |
Lead Time | Expected to ship in 1-2. |
Material | HSS, High Speed Steel |
Maximum Drilling Depth | 5/8 in |
Measurement System | Imperial |
Mpn | 49204 |
Number of Flutes | 2 |
Overall Length | 1-5/8 in, 1.6250", 1 5/. |
Overall Length (Metric) | 41.27mm |
Point Angle | 135 deg, 135? |
Point Style | Split |
Point Type | Split |
Series | 159 |
Shank Configuration | Straight |
Shank Dia. | 1/16 in |
Shank Length | 1 in, 1.0000" |
Shank Length (Metric) | 25.40mm |
Shank Size | 1/16 in Dia x 1 in L, 0. |
Shank Size (Metric) | 1.59mm |
Shank Type | Straight |
Sizes Included | 1/16" |
SKU | ZO-G3487276 |
Style | 159 |
SubCategory | Machining |
Surface Condition | Steam Oxide |
Tool Size | 1/16" |
Type | Heavy Duty |
UPC | 662355492048 |
All Prices
Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
---|
  | MRO Supply | 6130274 | 1.22 | 29 | 12 | | Chicago-Latrobe | | 1.22 @ 29 |
  | Global Industrial | WBB2545834 | 1.42 | 12 | 12 | | Chicago-Latrobe | | 1.42 @ 12 |
  | Zoro | G3487276 | 1.55 | 1 | 304 | | Chicago-Latrobe | 0.02 | 1.55 @ 12 |
  | Megadepot | 49204 | 1.58 | 1 | 12 | | Chicago-Latrobe | | 1.58 @ 12 |
  | heavydutydepot.com | 49204 | 1.64 | 61 | 12 | | Chicago-Latrobe | | 1.64 @ 61 |
  | Raptor Supplies | AB2HDP | 2.033577 | 1 | 12 | | CHICAGO-LATROBE | | 2.033577 @ 12 |
  | National Supply Network | 81382046 | 3.0525 | 12 | 12 | | Chicago-Latrobe | | 3.0525 @ 12 |
  | simsupply.com | ZO-G3487276 | 7.85 | 1 | 97 | | Chicago-Latrobe | | 7.85 @ 12 |
