- mpnC09576
- brandname: CLEVELAND
- manufacturername: CLEVELAND

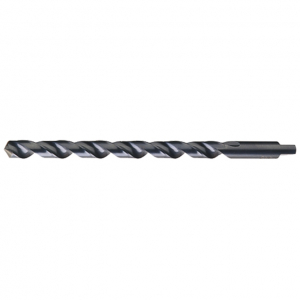

Cleveland 2540 High Speed Steel Long Length Drill Bit, Black Oxide, Round Shank with Flats, 118 Degree Notch Point, 19/32" (Pack of 1)
- Brand: Cleveland
- PartNumber: C09576
- Model: C09576
- Size: 19/32"
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Greenfield Industries
- Label: Greenfield Industries
Attributes
| Key | Value |
|---|
| Application | Automotive For Stainles. |
| Brand | CLEVELAND |
| Catalog Page | N/A |
| Construction: | Heavy-Duty |
| Coolant Fed | Non-Coolant Through |
| Coolant Through | No |
| Country of Origin | USA |
| Country of Origin (subj. | United States |
| Cutting Direction | Right Hand |
| Decimal Equivalent | 0.5938 |
| Decimal Equivalent: | 0.5938"/ 15.08mm |
| Depth x Dia. Ratio | 4xD |
| Depth:Dia. Ratio | 4xD |
| Diameter Fractional: | 19/32" |
| Drill Bit Dimension Type | Fractional Inch |
| Drill Bit Finish | Black Oxide |
| Drill Bit Grouping | Drill Bit |
| Drill Bit Material | High Speed Steel |
| Drill Bit Point Angle | 118 ?, 118 Degrees |
| Drill Bit Point Type | Notched Point |
| Drill Bit Size | 19/32 in |
| Drill Diameter Tolerance | +0.0000 in /-0.0012 in |
| Drill Length Class | Taper Length |
| Drill Point Length | 0.1784 in |
| Finish - Machining | Black Oxide |
| Flute Length | 6-1/2 in, 6 1/2 in |
| Flute Type | Spiral |
| Grade | Heavy Duty |
| Hand of Spiral Cut: | RHS/RHC |
| Helix Angle | 21 Degrees /34 Degrees,. |
| Item | Taper Length Drill Bit |
| Item? | 439P02 |
| Length of Flute: | 4.8750"/ 123.82mm |
| List Number | 2540 |
| List Style: | 2540 |
| Material | HSS |
| Material - Machining | High Speed Steel |
| Material Grade - Machin. | Heavy Duty |
| Material: | High Speed Steel |
| Maximum Drilling Depth | 6-1/2 in, 6 1/2 in |
| Measurement System | Fractional Inch |
| Mfr. Model? | C09576 |
| Number of Flutes | 2 |
| Overall Length | 8-3/4 in, 8 3/4 in |
| Overall Length: | 8.7500"/222.25mm |
| Point Type | Notched |
| Point: | 118? Notched |
| Primary Material Applic. | Cast Iron, Steel, Cast . |
| Primary Material Applic. | K, P, K; P |
| Secondary Material Appl. | Alloy Steel, Cast Iron,. |
| Secondary Material Appl. | K; M; P, K, M, P |
| Series | 2540 |
| Shank Dia. | 1/2 in |
| Shank Length | 3 7/8 in, 3-7/8 in |
| Shank Size: | 0.5000"/ 12.70mm |
| Shank Type | Straight |
| Shank Type - Machining | Straight |
| Shank: | Tanged |
| Sizes Included | 19/32" |
| Spiral Direction | Right Hand |
| Standards | AIS |
| Style | 2540 |
| Surface Condition | Steam Oxide |
| Surface Condition: | Steam Oxide |
| Tool Size | 19/32" |
| UNSPSC | 27112801 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | MRO Supply | 6110173 | 50.54 | 1 | In Stock | | Cleveland | | 50.54 @ 1 |
 | usmegastore.com | C09576 | 53.53 | 1 | In Stock | | Cleveland | | 53.53 @ 1 |
 | Zoro | G2997263 | 66.09 | 1 | In Stock | 8 | Cleveland | 0.7 | 66.09 @ 1 |
 | sustainablesupply.com | C2975760 | 68.45 | 1 | In Stock | | Cleveland | 0.7 | 68.45 @ 1 |
| Grainger | 439P02 | 80.71 | 1 | In Stock | | CLEVELAND | | 80.71 @ 1 |
