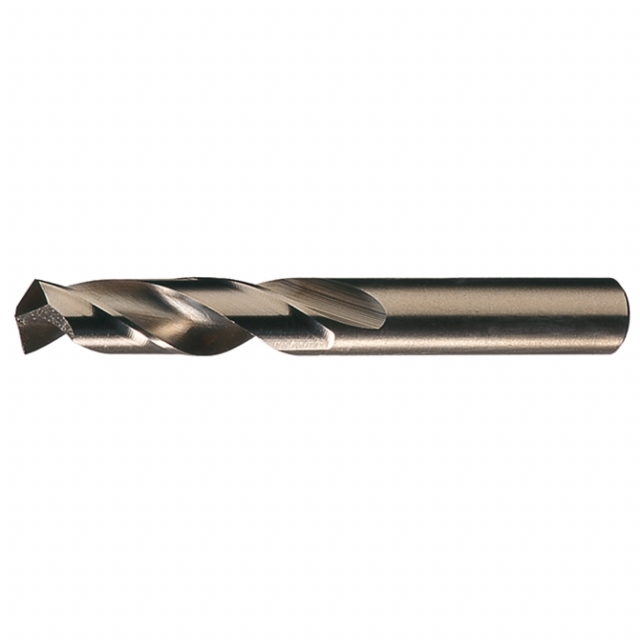

Cleveland Twist 15/64" Dia. 2-7/16" OAL Cobalt Screw Machine Drill

Cleveland Twist 15/64" Dia. 2-7/16" OAL Cobalt Screw Machine Drill

zoom

Brand: CLEVELAND
PartNumber: C14638
Manufacturer: Cleveland Twist Drill
Label: Cleveland Twist Drill

Attributes

Key	Value
Applicable Materials	Carbon Steel, Cast Iron.
Bit Dia.	15/64"
Brand	Cleveland
Construction:	Heavy-Duty
Current Stock	29
Cutting Depth	1-5/16 in
Cutting Direction	Right Hand
Cutting Edge Material	M42 HSS-Co 8
Decimal Equivalent	0.2344
Decimal Equivalent:	0.2344"/5.95mm
Depth x Dia. Ratio	4xD
Depth:Dia. Ratio	4xD
Diameter Fractional:	15/64"
Drill Bit Dimension Type	Fractional Inch
Drill Bit Finish	Straw/Bronze
Drill Bit Grouping	Drill Bit
Drill Bit Material	Cobalt
Drill Bit Point Angle	135 Degrees
Drill Bit Size	15/64 in
Drill Diameter Measurem.	Imperial
Drill Diameter Tolerance	+0.0000 in /-0.0007 in
Drill Length Class	Screw Machine Length
Drill Point Length	0.0485 in
Drill Size - Decimal In.	0.2344 in
Drill Size - Fraction	15/64 in
Drilling Length	1.313"
Finish	Straw/Gold Oxide
Flute Length	1-5/16 in, 1 5/16 in
Flute Type	Right Spiral, Spiral
Hand of Spiral Cut:	RHS/RHC
International Shipping	No
Item	Screw Machine Drill Bit
Length of Flute:	1.3125"/33.34mm
List Style:	2133
Material	M42 HSS-Co 8, HSS-CO 8%.
Material:	Cobalt
Maximum Drilling Depth	1 5/16 in
Mpn	C14638
Number of Flutes	2
Overall Length	2-7/16 in, 2 7/16 in
Overall Length:	2.4375"/61.91mm
Point Angle	135 deg
Point Type	Split
Point:	135? Split
Series	2133
Shank Dia.	15/64 in
Shank Length	1 1/8 in
Shank Size	15/64 in Dia x 1-1/8 in.
Shank Size:	0.2344"/5.95mm
Shank Type	Straight
Shank:	Straight
Sizes Included	15/64"
SKU	ZO-G3002032
Style	2133
SubCategory	Machining
Surface Condition	Straw
Surface Condition:	Straw/Gold Oxide
Tool Size	15/64"
Type	General Purpose Heavy D.
UPC	697334146384

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	MRO Supply	6111006	3.71	10	10		Cleveland		3.71 @ 10
	Megadepot	C14638	3.89	1	10		Cleveland		3.89 @ 10
	usmegastore.com	C14638	4.6	1	10		Cleveland		4.6 @ 10
	sustainablesupply.com	C2974714	4.72	1	10		Cleveland	0.02	4.72 @ 10
	Zoro	G3002032	5.49	1	37		Cleveland	0.26	5.49 @ 10
	bscsource.com	C14638	6.29	1	10		Cleveland		6.29 @ 10
	National Supply Network	63794150	7.469	1	10		Cleveland		7.469 @ 10
	Guardian	63794150	8.4	1	10		Cleveland		8.4 @ 10
	simsupply.com	ZO-G3002032	12.94	1	10		Cleveland		12.94 @ 10
