Cleveland C14640

mpnC14640
brandname: CLEVELAND
manufacturername: CLEVELAND

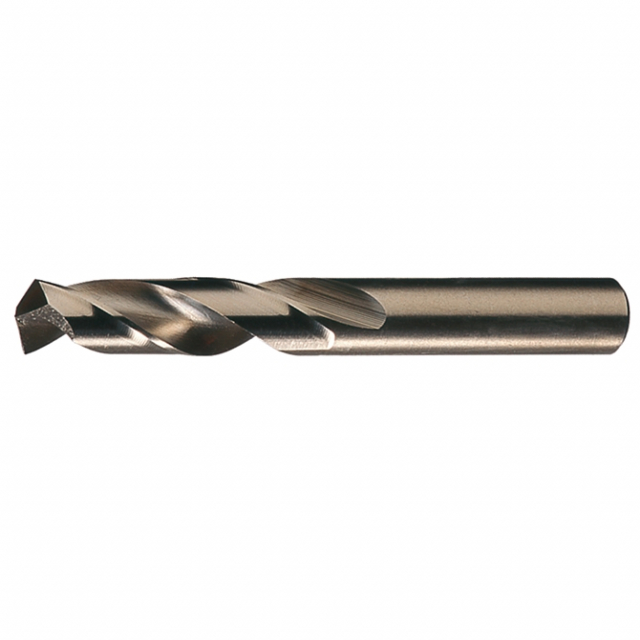

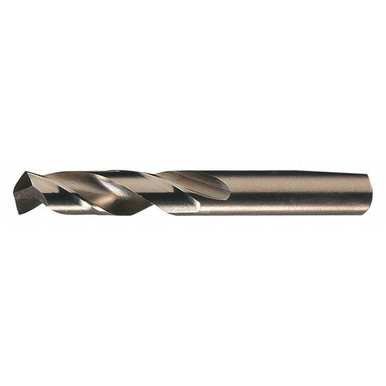

Cleveland 2133 Style Cobalt Steel Short Length Drill Bit, Bronze Oxide, Round Shank, 135 Degree Split Point, Letter Size B (Pack of 10)

Brand: Cleveland
PartNumber: C14640
Size: B
PackageQuantity: 1
Binding: Misc.
Manufacturer: Greenfield Industries
Label: Greenfield Industries

Attributes

Key	Value
Applicable Materials	Carbon Steel, Cast Iron.
Application	For Drilling Carbon Ste.
Bit Dia.	B
Brand	Cleveland
Construction:	Heavy-Duty
Coolant Fed	Non-Coolant Through
Coolant Through	No
Country of Origin (subj.	United States
Current Stock	13
Cutting Depth	1-3/8 in
Cutting Direction	Right Hand
Cutting Edge Material	M42 HSS-Co 8
Decimal Equivalent	0.2380
Decimal Equivalent:	0.2380"/6.05mm
Depth x Dia. Ratio	4xD
Depth:Dia. Ratio	4xD
Diameter Wire:	3
Drill Bit Dimension Type	Letter
Drill Bit Finish	Straw/Bronze
Drill Bit Grouping	Drill Bit
Drill Bit Material	Cobalt
Drill Bit Point Angle	135 Degrees
Drill Bit Point Type	Split Point
Drill Bit Size	B
Drill Diameter Measurem.	Imperial
Drill Diameter Tolerance	+0.0000 in /-0.0007 in
Drill Length Class	Screw Machine Length
Drill Point Length	0.0000
Drill Size - Decimal In.	0.238 in
Drill Size - Letter	B
Drilling Length	1-3/8"
Finish	Straw/Gold Oxide
Finish - Machining	Straw/Bronze
Flute Length	1 3/8 in, 1-3/8 in
Flute Type	Right Spiral, Spiral
Grade	Heavy Duty
Hand of Spiral Cut:	RHS/RHC
Helix Angle	28 Degrees
International Shipping	No
Item	Screw Machine Drill Bit
Length of Flute:	1.3750"/34.92mm
List Number	2133
List Style:	2133
Material	M42 HSS-Co 8, HSS-CO 8%.
Material - Machining	Cobalt
Material Grade - Machin.	M42
Material:	Cobalt
Maximum Drilling Depth	1 3/8 in
Measurement System	Letter
Mpn	C14640
Number of Flutes	2
Number of Pieces	0
Overall Length	2-1/2 in, 2 1/2 in
Overall Length:	2.5000"/63.50mm
Point Angle	135 deg
Point Type	Split
Point:	135? Split
Primary Material Applic.	Cast Iron, Stainless St.
Primary Material Applic.	K, M, P
Series	2133
Shank Dia.	15/64 in
Shank Length	1 1/8 in
Shank Shape	Straight
Shank Size	0.238 in Dia x 1.125 in.
Shank Size:	0.2380"/6.05mm
Shank Type	Straight
Shank Type - Machining	Straight
Shank:	Straight
Sizes Included	B
SKU	ZO-G3002041
Spiral Direction	Right Hand
Standards	ASME B94.11M-1993
Style	2133
SubCategory	Machining
Surface Condition	Straw
Surface Condition:	Straw/Gold Oxide
Tool Size	B
Type	General Purpose Heavy D.
UPC	697334146407
