Cleveland C14709

mpnC14709
brandname: CLEVELAND
manufacturername: CLEVELAND

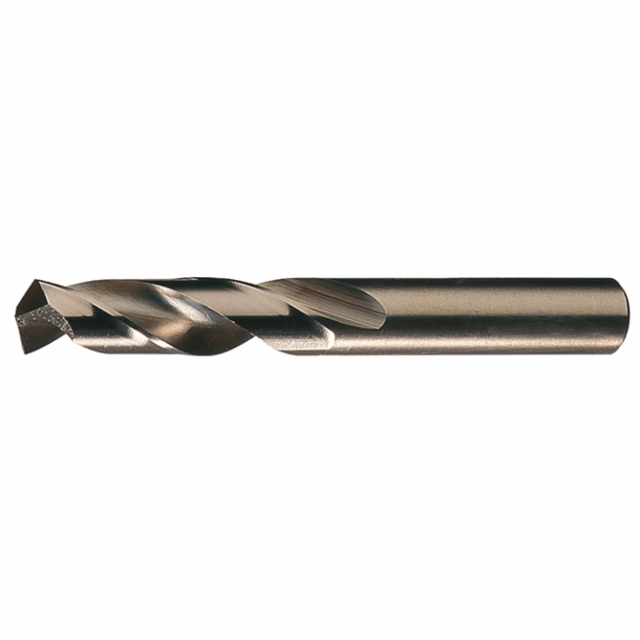

Cleveland 2133 Style Cobalt Steel Short Length Drill Bit, Bronze Oxide, Round Shank, 135 Degree Split Point, 25/64" (Pack of 1)

Cleveland 2133 Style Cobalt Steel Short Length Drill Bit, Bronze Oxide, Round Shank, 135 Degree Split Point, 25/64" (Pack of 1)

zoom

Brand: Cleveland
PartNumber: C14709
Size: 25/64"
PackageQuantity: 1
Binding: Misc.
Manufacturer: Greenfield Industries
Label: Greenfield Industries

Attributes

Key	Value
Applicable Materials	Carbon Steel, Cast Iron.
Bit Dia.	25/64"
Construction:	Heavy-Duty
Cutting Depth	1-7/8 in
Cutting Direction	Right Hand
Cutting Edge Material	M42 HSS-Co 8
Decimal Equivalent	0.3906
Decimal Equivalent:	0.3906"/9.92mm
Depth x Dia. Ratio	4xD
Depth:Dia. Ratio	4xD
Diameter Fractional:	25/64"
Drill Bit Dimension Type	Fractional Inch
Drill Bit Finish	Straw/Bronze
Drill Bit Grouping	Drill Bit
Drill Bit Material	Cobalt
Drill Bit Point Angle	135 Degrees
Drill Bit Size	25/64 in
Drill Diameter Measurem.	Imperial
Drill Diameter Tolerance	+0.0000 in /-0.0010 in
Drill Length Class	Screw Machine Length
Drill Point Length	0.0809 in
Drill Size - Decimal In.	0.3906 in
Drill Size - Fraction	25/64 in
Drilling Length	1-7/8"
Finish	Straw/Gold Oxide
Flute Length	1 7/8 in, 1-7/8 in
Flute Type	Right Spiral, Spiral
Hand of Spiral Cut:	RHS/RHC
Item	Screw Machine Drill Bit
Length of Flute:	1.8750"/47.63mm
List Style:	2133
Material	M42 HSS-Co 8, HSS-CO 8%.
Material:	Cobalt
Maximum Drilling Depth	1 7/8 in
Number of Flutes	2
Overall Length	3-1/4 in, 3 1/4 in
Overall Length:	3.2500"/82.55mm
Point Angle	135 deg
Point Type	Split
Point:	135? Split
Series	2133
Shank Dia.	25/64 in
Shank Length	1 3/8 in
Shank Size	25/64 in Dia x 1-3/8 in.
Shank Size:	0.3906"/9.92mm
Shank Type	Straight
Shank:	Straight
Sizes Included	25/64"
Style	2133
Surface Condition	Straw
Surface Condition:	Straw/Gold Oxide
Tool Size	25/64"
Type	General Purpose Heavy D.

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	MRO Supply	6111039	9.32	4	In Stock		Cleveland		9.32 @ 4
	Megadepot	C14709	11.26	1	In Stock		Cleveland		11.26 @ 1
	usmegastore.com	C14709	11.72	1	In Stock		Cleveland		11.72 @ 1
	sustainablesupply.com	C2767554	12.04	1	In Stock		Cleveland	0.08	12.04 @ 1
	bscsource.com	C14709	15.99	1	In Stock		Cleveland		15.99 @ 1
	Guardian	63794259	21.1	1	In Stock		Cleveland		21.1 @ 1
	National Supply Network	63794259	26.24	1	In Stock		Cleveland		26.24 @ 1
	Zoro	G3002470	51.45	1	25		Cleveland	0.47	51.45 @ 1
