Dayton ARDUPG3222502L12A

B007IB9820

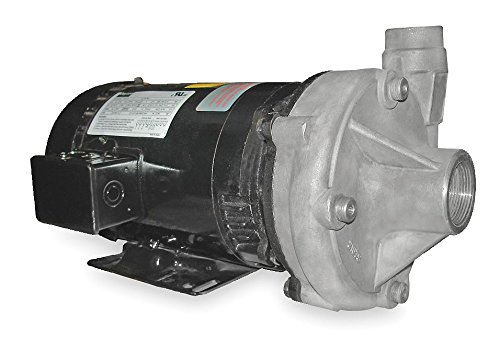

Pump,3 HP,3 Ph,208 to 240/480VAC

Pump,3 HP,3 Ph,208 to 240/480VACzoom

Attributes

Key Value
Agency ComplianceUL Approval in Motor
Amps8.3-7.6/3.8
Bearing TypeBall
Best Efficiency Flow95 gpm
Best Efficiency GPM @ H.95 @ 57 ft
Best Efficiency Head57 ft
BrandDayton
Compatible Discharge Pi.1 1/4 in
Compatible Intake Pipe .1 1/2 in
Compatible with Media T.Non-Flammable Liquids
Current Stock3
Discharge Rotation90 Degrees Increments
Discharge TypeNPT
DutyContinuous
Duty CycleContinuous
FeaturesContinuous High Pressur.
Feet of Head (Minimum)10 ft
Flow Rate @ 1 ft of Hea.Not Applicable
Flow Rate @ 10 ft of He.107 gpm
Flow Rate @ 100 ft of H.43 gpm
Flow Rate @ 120 ft of H.17 gpm
Flow Rate @ 140 ft of H.Not Applicable
Flow Rate @ 15 ft of He.105 gpm
Flow Rate @ 160 ft of H.Not Applicable
Flow Rate @ 180 ft of H.Not Applicable
Flow Rate @ 20 ft of He.103 gpm
Flow Rate @ 200 ft of H.Not Applicable
Flow Rate @ 220 ft of H.Not Applicable
Flow Rate @ 240 ft of H.Not Applicable
Flow Rate @ 260 ft of H.Not Applicable
Flow Rate @ 280 ft of H.Not Applicable
Flow Rate @ 30 ft of He.98 gpm
Flow Rate @ 300 ft of H.Not Applicable
Flow Rate @ 40 ft of He.92 gpm
Flow Rate @ 5 ft of Hea.Not Applicable
Flow Rate @ 50 ft of He.87 gpm
Flow Rate @ 60 ft of He.79 gpm
Flow Rate @ 70 ft of He.72 gpm
Flow Rate @ 80 ft of He.63 gpm
Flow Rate @ 90 ft of He.55 gpm
For Use With Potable Sy.No
Frame56J
Frequency60 Hz
GPM of Water @ 10 Ft. o.107
GPM of Water @ 100 Ft. .43
GPM of Water @ 110 Ft. .32
GPM of Water @ 120 Ft. .17
GPM of Water @ 130 Ft. .2
GPM of Water @ 15 Ft. o.105
GPM of Water @ 20 Ft. o.103
GPM of Water @ 25 Ft. o.100
GPM of Water @ 30 Ft. o.98
GPM of Water @ 40 Ft. o.92
GPM of Water @ 50 Ft. o.87
GPM of Water @ 60 Ft. o.79
GPM of Water @ 70 Ft. o.72
GPM of Water @ 80 Ft. o.63
GPM of Water @ 90 Ft. o.55
Height9 in
Horsepower3 hp
Housing MaterialStainless Steel
Housing Material - PumpsStainless Steel
HP3
HP - Pumps3 hp
Hz60
Impeller DesignClosed
Impeller MaterialStainless Steel
Impeller TypeClosed
IncludesManual
Inlet1-1/2"
Inlet Pressure200 psi
Inlet Size - Pumps1-1/2 in NPT
Intake and Discharge Si.1 1/2 in , 1 1/4 in
Intake TypeNPT
International ShippingNo
ItemCentrifugal Pump
Item - Straight Centrif.Straight Centrifugal Hi.
Lead TimeExpected to ship in 1-2.
Length17 1/4 in
Length (Straight Wirewa.17 1/4 in
Manufacturer Warranty L.1 yr
Manufacturers Warranty .1 yr
Max. Case Pressure200 psi
Max. Dia. Solids5/16 in
Max. Head131 ft
Max. Liquid Temp.200 Degrees F
Max. Pressure56 psi
Max. Pressure - Pumps56 psi
Max. Specific Gravity1.0
Maximum Feet of Head130 ft
Maximum Media Temperatu.200 Degrees F
Maximum RPM3,450 RPM
Minimum Media Temperatu.40 Degrees F
Motor EnclosureTEFC, Totally Enclosed .
Motor Enclosure - PumpsTotally Enclosed Fan-Co.
Motor Enclosure TypeTEFC
Motor Frame Designation56J
Motor RPM3,450 RPM
Motor TypeTEFC
Mpn2ZXL6
Nameplate Voltage208-230/460V AC
Nominal Voltage208-230/460V AC
Outlet1-1/4"
Outlet Size - Pumps1-1/4 in NPT
Overall Height8.9 in
Overall Length17.2 in
Overall Width8.8 in
Phase3, Three
Phase - Pumps3
Phase Broad3
Port Rotation4 Position Increments
Prop 65WARNING: Cancer and Rep.
Pump Housing MaterialStainless Steel
Pump Housing Material B.SS
Pumping ApplicationAggressive Liquid Appli.
Seal MaterialViton
Seal TypeMechanical
Shaft MaterialStainless Steel
Shut Off Pressure (Maxi.56 psi
SKUZO-G3222502
Solid Diameter (Maximum)0.31 in
Specific Gravity (Maxim.1
StandardsUL Listed (Motor Only)
SubCategoryPumps
UPC190735242698
Voltage208-230/460VAC
Voltage - Pumps208 to 240/480V AC
Wetted MaterialCarbon, Ceramic, Stainl.
Wetted MaterialsCarbon, Ceramic, Stainl.
Width8 3/4 in

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG32225021101.351In StockDayton72.581101.35 @ 1
thumbzoomsimsupply.comZO-G32225021227.2213Dayton1227.22 @ 1
grainger.caGGM2ZXL61287.790327741In StockDAYTON70.01287.79032774 @ 1
AmazonTPB007IB98201496.781In Stock3Dayton1496.78 @ 1
thumbzoomsustainablesupply.comC17405661504.061In StockDayton72.581504.06 @ 1
thumbzoomRaptor SuppliesAC4HRC1809.69358051In StockDAYTON1809.6935805 @ 1
