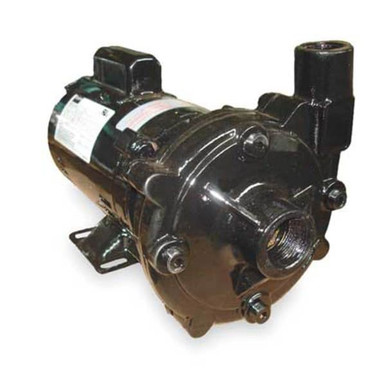

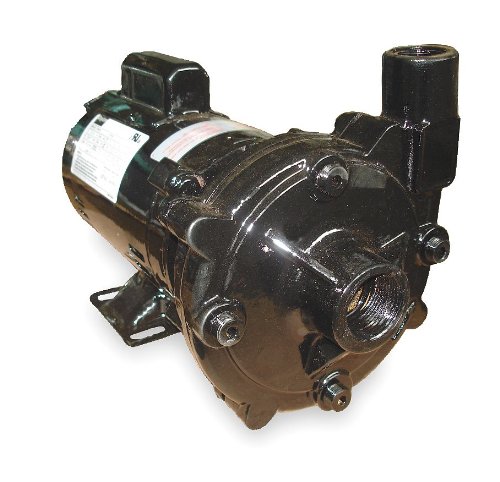

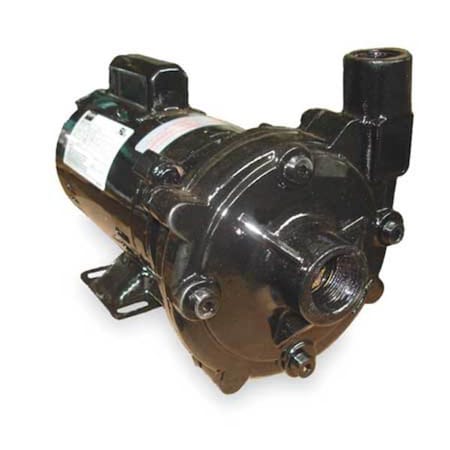

Dayton 2ZXL7 Centrifugal Pump, 1/2 HP, 1Ph, 115/230V
- Brand: Dayton
- PartNumber: 2ZXL7
- Model: 2ZXL7
- PackageQuantity: 1
- Manufacturer: DAYTON
- Label: DAYTON
Attributes
| Key | Value |
|---|
| Agency Compliance | UL Approval in Motor |
| Amps | 8.4/4.8 |
| Bearing Type | Ball |
| Best Efficiency GPM @ H. | 29 @ 47 ft. |
| Best Efficiency Range G. | 14-36 @ 70-30 Ft. |
| Brand | Dayton |
| Compatible Discharge Pi. | 1 in |
| Compatible Intake Pipe . | 1 1/4 in |
| Duty | Continuous |
| Frame | 56J |
| GPM of Water @ 10 Ft. o. | 42 |
| GPM of Water @ 15 Ft. o. | 40 |
| GPM of Water @ 20 Ft. o. | 39 |
| GPM of Water @ 25 Ft. o. | 37 |
| GPM of Water @ 30 Ft. o. | 36 |
| GPM of Water @ 40 Ft. o. | 32 |
| GPM of Water @ 50 Ft. o. | 28 |
| GPM of Water @ 60 Ft. o. | In Stock |
| GPM of Water @ 70 Ft. o. | 15 |
| Height | 8-1/2", 8 1/2 in |
| Housing Material - Pumps | Cast Iron |
| HP - Pumps | 1/2 hp, 1/2 |
| Hz | 60 |
| Impeller Material | Brass |
| Impeller Type | Closed |
| Includes | Manual |
| Inlet Pressure | 200 PSI |
| Inlet Size - Pumps | 1 1/4 in NPT, 1-1/4 in . |
| Intake and Discharge Si. | 1 1/4 in , 1 in |
| International Shipping | No |
| Item | Centrifugal Pump |
| Item - Straight Centrif. | Straight Centrifugal Hi. |
| Length | 14 3/4 in, 14-3/4" |
| Length (Straight Wirewa. | 14 3/4 in |
| Manufacturer Warranty L. | 1 yr |
| Manufacturers Warranty . | 1 yr., 1 yr |
| Max. Case Pressure | 200 PSI |
| Max. Dia. Solids | 5/16", 5/16 in |
| Max. GPM @ Head | 42 @ 10 |
| Max. Head | 82 ft., 82 ft |
| Max. Liquid Temp. | 200 Degrees F |
| Max. Pressure - Pumps | 35 psi |
| Max. Specific Gravity | 1.0 |
| Min. GPM @ Head | 15 @ 70 |
| Motor Enclosure - Pumps | Open Dripproof |
| Motor RPM | 3450 |
| Motor Type | ODP |
| Mpn | 2ZXL7 |
| Outlet Size - Pumps | 1 in NPT |
| Overall Height | 8.5 in |
| Overall Length | 14.7 in |
| Overall Width | 7.9 in |
| Phase - Pumps | 1 |
| Port Rotation | 4 Position Increments |
| Prop 65 | WARNING: Cancer and Rep. |
| Seal Material | Viton |
| SKU | ZO-G1198757 |
| Solid Diameter (Maximum) | 0.31 in |
| SubCategory | Pumps |
| UPC | 190735242704 |
| Voltage - Pumps | 120/240V AC, 120/240 VAC |
| Wetted Materials | Cast Iron, Brass, Viton. |
| Width | 8", 8 in |
