Dwyer DPG-206

mpnDPG-206
brandname: DWYER
manufacturername: DWYER

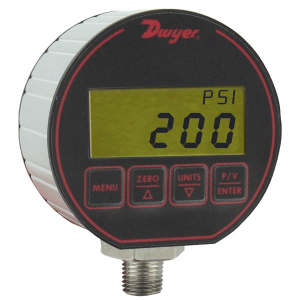

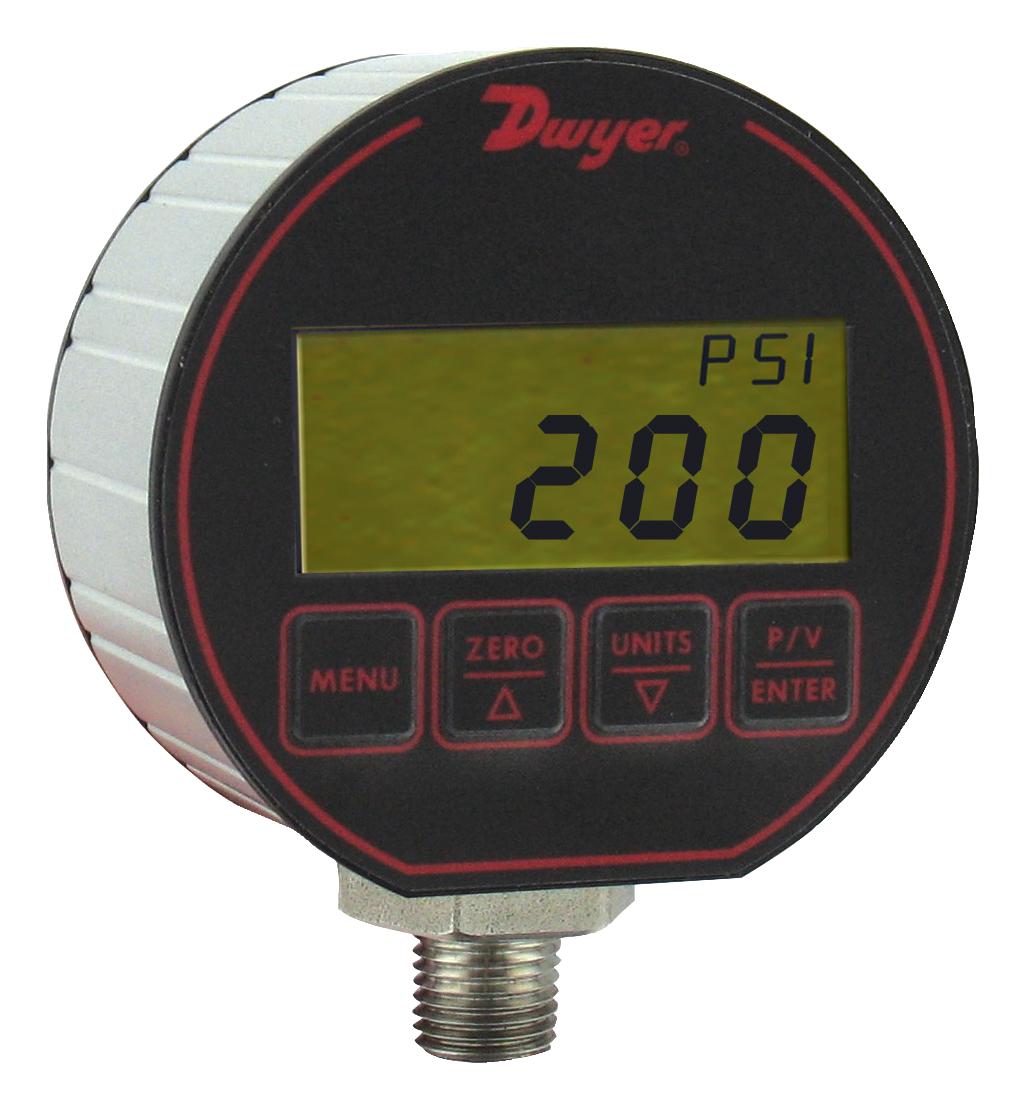

Transducer with Display, 0 to 200 Psi

Brand: Dwyer
PartNumber: DPG-206
PackageQuantity: 1
Manufacturer: DWYER INSTRUMENTS
Label: DWYER INSTRUMENTS

Attributes

Key	Value
Accuracy	0.25% F.S. ?1 least sig.
Approvals	CE
Cable Length	3 ft
Calibration Certificate	No
Case Material	Polycarbonate, Aluminum
Case Size	3 "
Case Style	Round
Connection	1/4 NPT
Digital Gauge Accuracy	+/-0.25%
Display	4 digit (.425" H x .234.
Electrical Connections	3 ft (.91 m) cable
Electrical Rating	0.5A @ 125 VAC resistiv.
Enclosure Rating	Designed to meet NEMA 4.
Family Series	Dwyer Instruments Panel.
Gauge Connection Locati.	Bottom
Gauge Connection Size	1/4 in
Gauge Connection Type	MNPT
Gauge Nominal Dial Size	3 in
Gauge Operating Temp. R.	0 Degrees to 158 Degre.
Gauge Primary Range Val.	0 to 200
Gauge Process Connectio.	1/4 in
Gross Weight	0 lbs
Height	3 5/8 in
Housing	Black polycarbonate fro.
Item	Digital Vacuum Gauge wi.
Item Number	DPG-206
Lead Length (In.)	36
Length	1 5/8 in
Loop Resistance	600 ohms maximum
Manufacturer	Dwyer Instruments
Manufacturer Part Number	DPG-206
Manufacturers Warranty .	1 yr
Mounting Orientation	Mount in any position
NEMA Rating	NEMA 4X
Net Weight	0.5525 lbs
Nominal Dial Size	3 in
Number of Display Digits	4
Operating Temp.	0 to 158
Output	4 to 20ma
Output Signal	4-20 mA
Power Consumption	0.8 W max
Power Requirements	12-24 VAC +/- 20% 50-40.
Pressure Limit	2x pressure range for m.
Process Connection	1/4" male NPT
Product Series	DPG
Relay Differential	1 least significant dig.
Series	DPG-200
Service	Liquids and non-combust.
Set Point Adjustment	Via menu
Size	3.00" OD x 1.90" deep (.
Switch Type	2 SPDT Form C contacts
Temperature Limits	0 to 158?F (0 to 70?C)
Thermal Effect	Between 70 to 158?F = 0.
Weight	8.84 oz (275 g)
Wetted Materials	Type 316L SS, 316L Stai.

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Brand	Weight	Preferred Tier
Zoro	G0058362	451.99	1	In Stock	Dwyer	0.89	451.99 @ 1
us.rs-online.com	71302667	456.17	1	In Stock	Dwyer Instruments		456.17 @ 1
Galco	DPG-206-DWYR	463.36	1	In Stock	Dwyer Instruments	0.5525	463.36 @ 1
cappusa.com	3100772	465.61	1	In Stock	Dwyer		465.61 @ 1
Radwell	DPG-206	470.0	1	In Stock	DWYER		470.0 @ 1
Megadepot	DPG-206	493.1	1	In Stock	Dwyer	0.5525	493.1 @ 1
industrialzone.com	DPG-206	498.0	1	In Stock	Dwyer	1.0	498.0 @ 1
sustainablesupply.com	C1759007	504.3	1	In Stock	Dwyer Instruments	0.95	504.3 @ 1
Newark	82AK6484	518.95	1	In Stock	DWYER		518.95 @ 1
usmegastore.com	DPG-206	518.95	1	In Stock	Dwyer	0.5525	518.95 @ 1
alliedcontrols.com	DPG-206	605.0	1	In Stock	Dwyer		605.0 @ 1
Kele	DPG-206	607.85	1	In Stock	Dwyer Instruments		607.85 @ 1
Raptor Supplies	AD7PJB	1182.6591075	1	In Stock	DWYER INSTRUMENTS		1182.6591075 @ 1
