Marathon Electric X000

B0042GF3QO

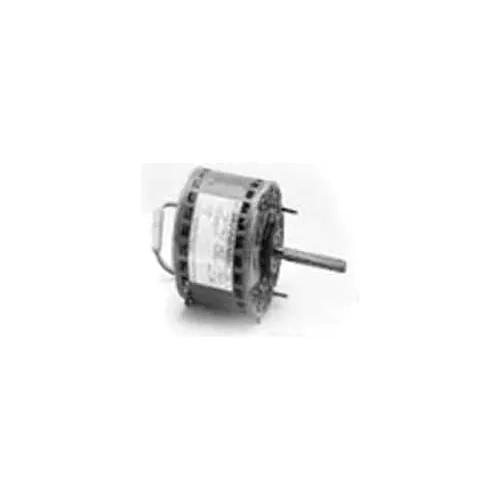

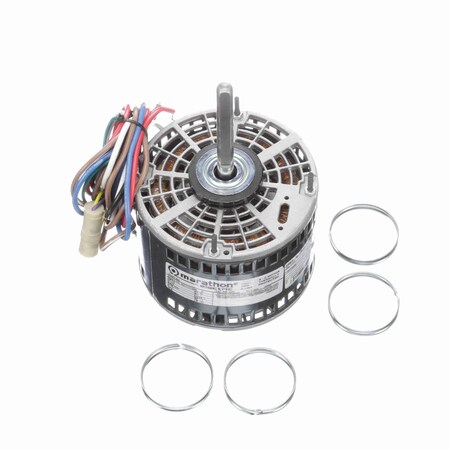

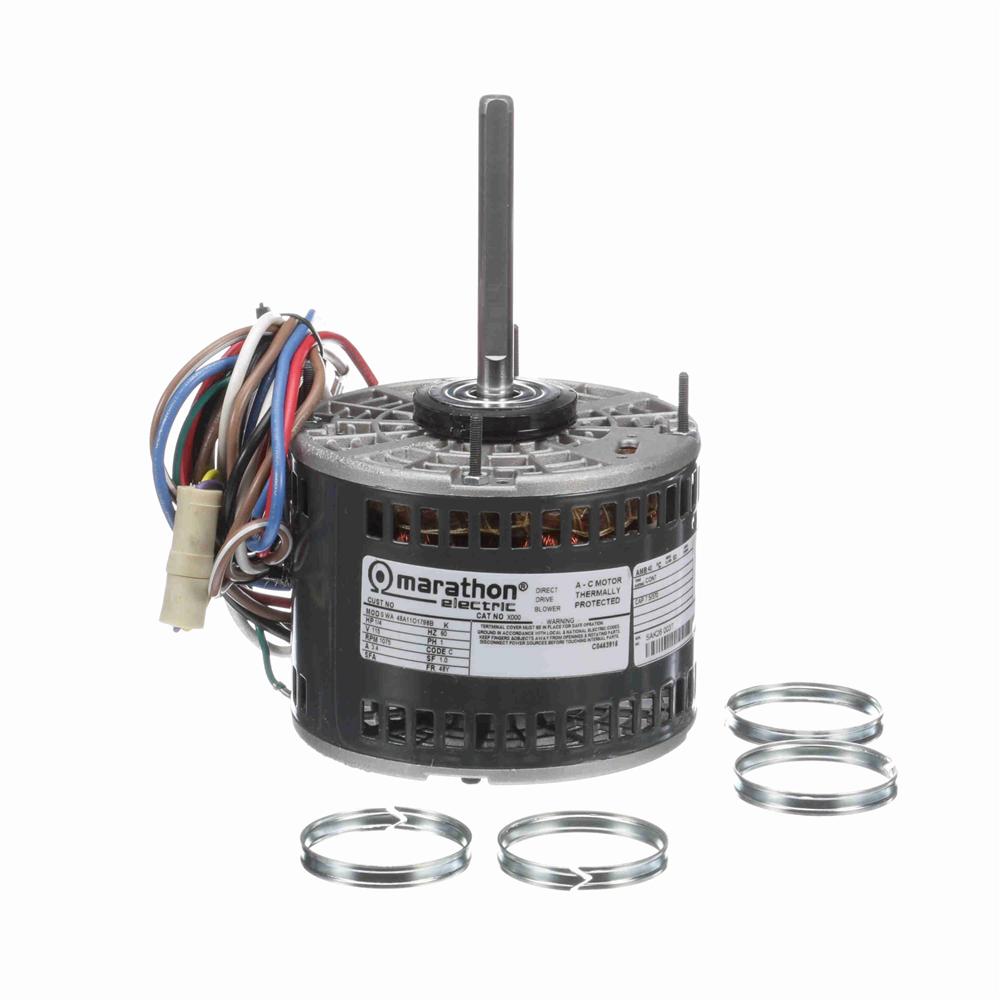

Marathon X000 48Y Frame Open Air Over 48A11O1798 Direct Drive Motor 1/4 hp, 1075 RPM, 115 VAC, 1 Phase, 3 Speeds, Ball Bearing, Permanent Split Capacitor, Thru-Bolt

Marathon X000 48Y Frame Open Air Over 48A11O1798 Direct Drive Motor 1/4 hp, 1075 RPM, 115 VAC, 1 Phase, 3 Speeds, Ball Bearing, Permanent Split Capacitor, Thru-Boltzoom

Attributes

Key Value
Alternate Mfr Part Numb.048A11O1798
Amps3.4
ApprovalsCSA, UR
Bearing TypeBall
BearingsBall
BrandMarathon
C-Dimension9.25 (in.) (in.)
Capacitor7.5MFD/370VAC Required
Catalog NumberX000
CEN
CompositionRolled Steel
Country of Origin (subj.Mexico
CSAY
Current Rating3.4 A
DE Bearing TypeBall
DEM ReferenceNOHP
DutyContinous
Duty CycleContinuous
Efficiency55, 0.55
Efficiency %55 %
Electrical TypePermanent Split Capacit.
EnclosureOPAO, Open Air Over
Enclosure MaterialSteel
Enclosure TypeOAO (Open Air Over), Op.
Family SeriesMarathon Electric Motors
Frame48Z, 48Y
Frame MaterialRolled Steel
Frame Type48Y
Frequency60, 60 Hz
Gross Weight0 lbs
Horsepower1/4 hp
Horsepower Rating0.25 HP
HP1/4
Hz60
Insulation ClassB
Insulation TypeClass B
IP Code10
Item NumberX000
Kilowatts0.19 kW
KVA CodeC
ManufacturerMarathon Electric
Manufacturer Model #048A11O1798
Manufacturer Part Number048A11O1798
Max Ambient40?C
Maximum Ambient Tempera.40? C
Motor Diameter5-5/8"
Motor OrientationHorizontal
Motor Shell Length3.75"
MountingBase/Stud
Mounting OrientationHorizontal
Mounting TypeResilient Ring - Extend.
Net Weight12 lbs
Number of Poles6
Number of Speeds3
ODE Bearing TypeBall
Overall Length9.25", 9.25 "
Phase1, 1 Phase
Product CategoryHVAC/R Motors > Fan an.
Product TypePSC (Permanent Split Ca.
RotationReversible, Selective C.
RPM1075 RPM, 1075, 1,075 R.
RPM (Nameplate)1075
RPM (Number of Poles)6 (901 RPM to 1200 RPM)
Service Factor1
Shaft Diameter0.5 ", 1/2 (in.), 1/2"
Shaft Extension4.06 (in.) (in.)
Shaft Length4.06"
Shaft TypeSingle Special Extension
Ship Weight12 lbs.
Special FeaturesService Factor - 1
Speeds3
StandardsUL Recognized
Supply Voltage115 VAC
Thermal ProtectionAutomatic
TypePermanent Split Capacit.
Type of Overload Protec.Automatic Lock Rotor On.
ULRecognized
UPC Code722856038524
Voltage115
Voltage (AC)115 VAC
Volts115

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomMRO Supply2269558120.541In StockMarathon Electric120.54 @ 1
thumbzoomelectricmotorwholesale.comX000125.01In StockMARATHON125.0 @ 1
thumbzoomGalcoX000-MARA126.791In StockMarathon Electric12.0126.79 @ 1
thumbzoomapexindustrialautomation.comX000128.48124Marathon128.48 @ 1
thumbzoomemotorpro.comX000141.531In StockMarathon12.0141.53 @ 1
thumbzoomGlobal IndustrialWBB871763149.951In StockMarathon Motors149.95 @ 1
us.rs-online.com72238259150.31In StockMarathon Motors150.3 @ 1
thumbzoomNational Supply NetworkB871763153.381In StockMARATHON MOTORS153.38 @ 1
thumbzoomDreisilkerMA-RBC-X000155.661In StockMarathon155.66 @ 1
thumbzoomindustrialstores.comX000156.91In Stock10Marathon Motors156.9 @ 1
thumbzoomZoroG2533919158.351In StockMarathon158.35 @ 1
thumbzoommidwestapplianceparts.comX000-MT-P164.491In StockMarathon164.49 @ 1
kirbyrisk.com507225184.31In StockMarathon184.3 @ 1
thumbzoomGuardianMARSX000186.361In StockMarathon186.36 @ 1
