Marathon Electric X004

B0196KV800

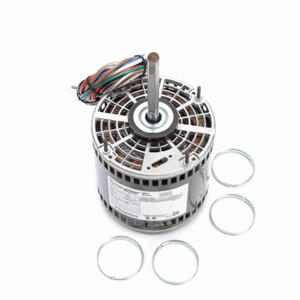

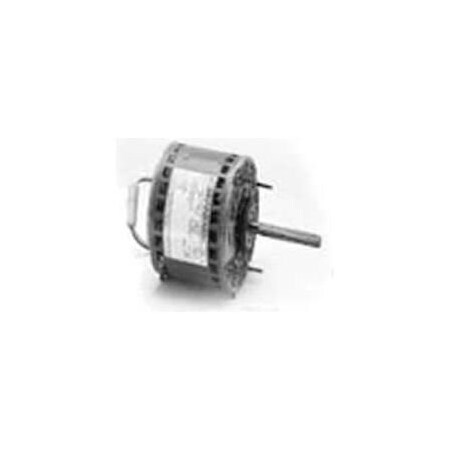

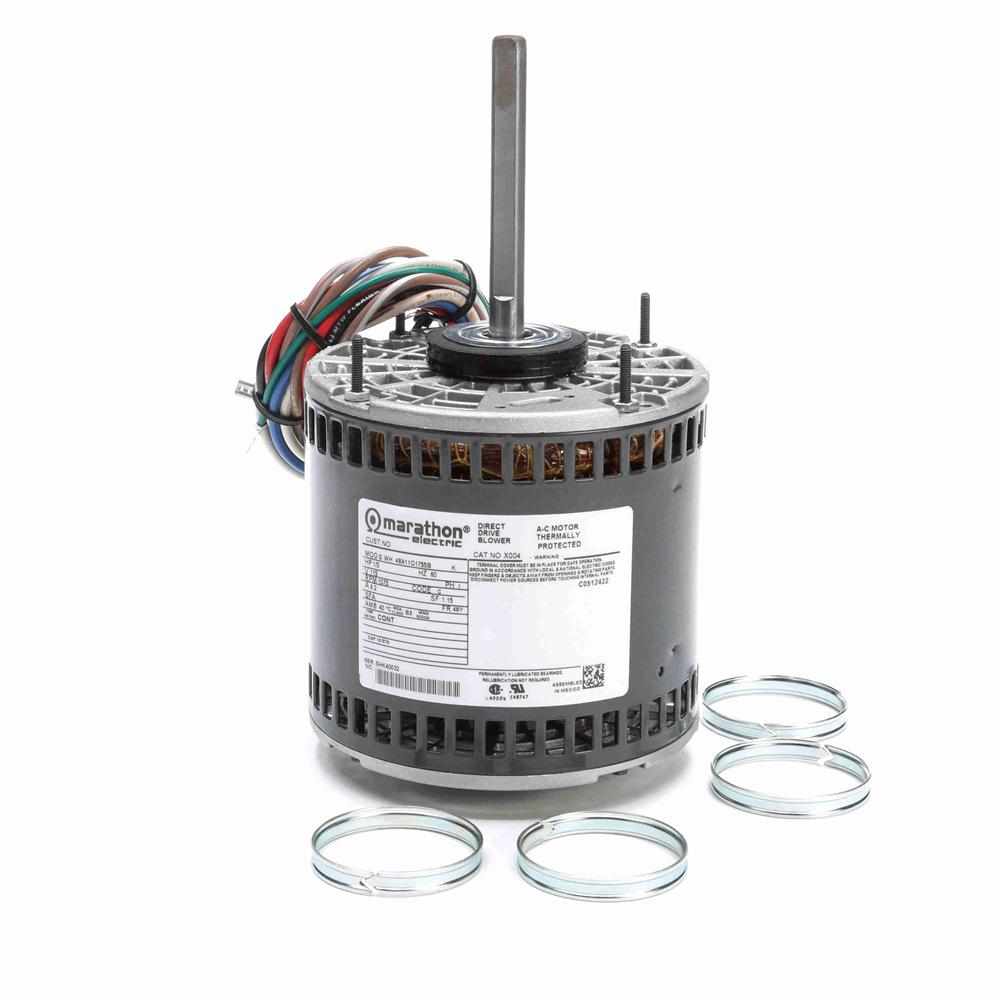

Marathon X004 48Y Frame 48A11O1755 Open Air Over Direct Drive Motor, 1 Phase, Permanent Split Capacitor, Ball Bearing, 1/2 hp, 1075 RPM, 3 Speed, 115 VAC

Marathon X004 48Y Frame 48A11O1755 Open Air Over Direct Drive Motor, 1 Phase, Permanent Split Capacitor, Ball Bearing, 1/2 hp, 1075 RPM, 3 Speed, 115 VACzoom

Attributes

Key Value
Alternate Mfr Part Numb.048A11O1755
Amps6.2
ApprovalsCSA, UR
Bearing TypeBall
BearingsBall
BrandMarathon
C-Dimension10.25 (in.) (in.)
Capacitor10MFD/370VAC Required
Catalog NumberX004
CEN
CompositionRolled Steel
CSAY
DE Bearing TypeBall
DEM ReferenceNOHP
DutyContinuous
Duty CycleContinuous
Efficiency0.616
Efficiency %63.4 %
Electrical TypePermanent Split Capacit.
EnclosureOPAO, Open Air Over
Enclosure MaterialSteel
Enclosure TypeOAO (Open Air Over), Op.
Family SeriesMarathon Electric Motors
Frame48Y
Frame MaterialRolled Steel
Frame Type48Y
Frequency60, 60 Hz
Gross Weight0 lbs
Horsepower1/2 hp
HP1/2
Hz60
Insulation ClassB
IP Code10
Item NumberX004
Kilowatts0.37 kW
KVA CodeC
ManufacturerMarathon Electric
Manufacturer Model #048A11O1755
Manufacturer Part Number048A11O1755
Max Ambient40?C
Maximum Ambient Tempera.40? C
Motor Diameter5-5/8"
Motor OrientationHorizontal
Motor Shell Length4.75"
MountingBase/Stud
Mounting OrientationHorizontal
Mounting TypeResilient Ring - Extend.
Net Weight17 lbs
Number of Poles6
Number of Speeds3
ODE Bearing TypeBall
Overall Length10.25", 10.25 "
Package Quantity1
Phase1
Product CategoryHVAC/R Motors > Fan an.
Product TypePSC (Permanent Split Ca.
RotationReversible, Selective C.
RPM1075, 1,075 RPM
RPM (Nameplate)1075
RPM (Number of Poles)6 (901 RPM to 1200 RPM)
Service Factor1.15
Shaft Diameter0.5 ", 1/2 (in.), 1/2"
Shaft Extension4.06 (in.) (in.)
Shaft Length4.06"
Shaft TypeSingle Special Extension
Ship Weight17 lbs.
Speeds3
Thermal ProtectionAutomatic
Type of Overload Protec.Automatic Lock Rotor On.
ULRecognized
Voltage115
Voltage (AC)115 VAC
Volts115

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomktool.netX004137.421In StockMarathon Motors137.42 @ 1
thumbzoomMRO Supply2269548137.591In StockMarathon Electric137.59 @ 1
thumbzoomelectricmotorwholesale.comX004145.01In StockMARATHON145.0 @ 1
thumbzoomemotorpro.comX004164.631In StockMarathon17.0164.63 @ 1
thumbzoomindustrialstores.comX004165.1311Marathon Motors165.13 @ 1
thumbzoomVoomi SupplyX004170.741In StockMARATHON MOTORS170.74 @ 1
thumbzoomNational Supply NetworkB871786176.771In StockMARATHON MOTORS176.77 @ 1
thumbzoomapexindustrialautomation.comX004189.281518Marathon189.28 @ 1
thumbzoommidwestapplianceparts.comX004-MT-P191.3511Marathon191.35 @ 1
thumbzoomGalcoX004-MARA194.261In StockMarathon Electric17.0194.26 @ 1
us.rs-online.com72650101218.811In StockMarathon Motors218.81 @ 1
thumbzoomDreisilkerMA-RBC-X004240.421In StockMarathon240.42 @ 1
thumbzoomZoroG804937158262.991In StockMarathon Motors262.99 @ 1
motionindustries.com04740840298.761In StockMarathon Electric298.76 @ 1
kirbyrisk.com507229300.191In StockMarathon300.19 @ 1
uri.comX004436.31In StockMarathon17.0436.3 @ 1
