- mpnX006
- brandname: MARATHON
- manufacturername: MARATHON

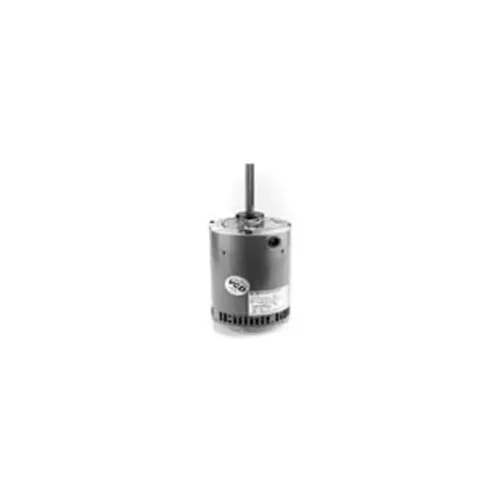

Marathon X006 Motor
- Brand: Marathon Electric
- PartNumber: X006
- Manufacturer: Marathon
- Label: Marathon
Attributes
| Key | Value |
|---|
| Alternate Mfr Part Numb. | 048A11O2001 |
| Amps | 1.5-1.45 |
| Approvals | CSA, UR |
| Bearing Type | Ball |
| Bearings | Ball |
| Capacitor | 5MFD/370VAC Required |
| Composition | Rolled Steel |
| Current Rating | 1.5 to 1.5 A |
| Duty Cycle | Continuous |
| Efficiency | 66.2, 0.662 |
| Efficiency % | 66.2 % |
| Enclosure | Open Air Over |
| Enclosure Material | Steel |
| Enclosure Type | OAO (Open Air Over), Op. |
| enclosure type: | OAO (Open Air-Over) |
| Family Series | Marathon Electric Motors |
| Frame | 48Y |
| frame material: | Rolled Steel |
| frame size: | 48Y |
| Frequency | 60 Hz |
| frequency rating: | 60 Hz |
| Gross Weight | 0 lbs |
| Horsepower | 1/4 hp |
| Horsepower Rating | 0.25 HP |
| HP | 1/4 |
| Hz | 60 |
| Insulation Class | B |
| Insulation Type | Class B |
| Item Number | X006 |
| Kilowatts | 0.19 kW |
| Manufacturer | Marathon Electric |
| Manufacturer Model # | 048A11O2001 |
| Manufacturer Part Number | 048A11O2001 |
| Maximum Ambient Tempera. | 40? C |
| motor category: | Blower/Fan Motor |
| Motor Diameter | 5-5/8" |
| motor horsepower: | 1/4 hp, 0.25 hp |
| motor phase: | 1 ph |
| Motor Shell Length | 3.75" |
| motor supply voltage: | 208-230 V |
| Mounting | Base/Stud |
| Mounting Orientation | Horizontal |
| Mounting Type | Resilient Ring - Extend. |
| mounting type: | Resilient Base/Extended. |
| Net Weight | 11 lbs |
| Number of Poles | 6 |
| Number of Speeds | 1 |
| Overall Length | 9.25", 9.25 " |
| Phase | 1, 1 Phase |
| Product Type | PSC (Permanent Split Ca. |
| Rotation | Reversible |
| RPM | 1075 RPM, 1075, 1,075 R. |
| Service Factor | 1 |
| service factor: | 1.00 |
| Shaft Diameter | 0.5 ", 1/2" |
| Shaft Length | 4.06" |
| Ship Weight | 11 lbs. |
| Special Features | Service Factor - 1 |
| Standards | UL Recognized |
| standards met: | UL, CSA |
| Supply Voltage | 208-230 VAC |
| synchronous rpm: | 1200 rpm |
| Thermal Protection | Automatic |
| Type | Permanent Split Capacit. |
| UPC Code | 722856038586 |
| Voltage (AC) | 208-230 VAC |
| Volts | 208, 230 |
| weight: | 11 lbs |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | motionindustries.com | 03940039 | 145.39 | 1 | In Stock | | Marathon Electric | | 145.39 @ 1 |
 | Galco | X006-MARA | 176.0 | 24 | In Stock | | Marathon Electric | 11.0 | 176.0 @ 24 |
 | emotorpro.com | X006 | 180.96 | 1 | In Stock | | Marathon | 11.0 | 180.96 @ 1 |
| us.rs-online.com | 72238251 | 210.9 | 1 | In Stock | | Marathon Motors | | 210.9 @ 1 |
 | Global Industrial | WBB871728 | 650.0 | 1 | In Stock | | Marathon Motors | | 650.0 @ 1 |
