Marathon Electric X022

mpnX022
brandname: MARATHON
manufacturername: MARATHON

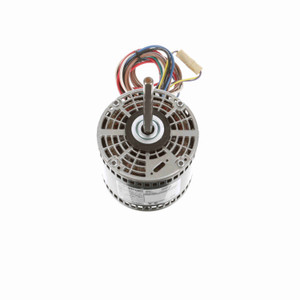

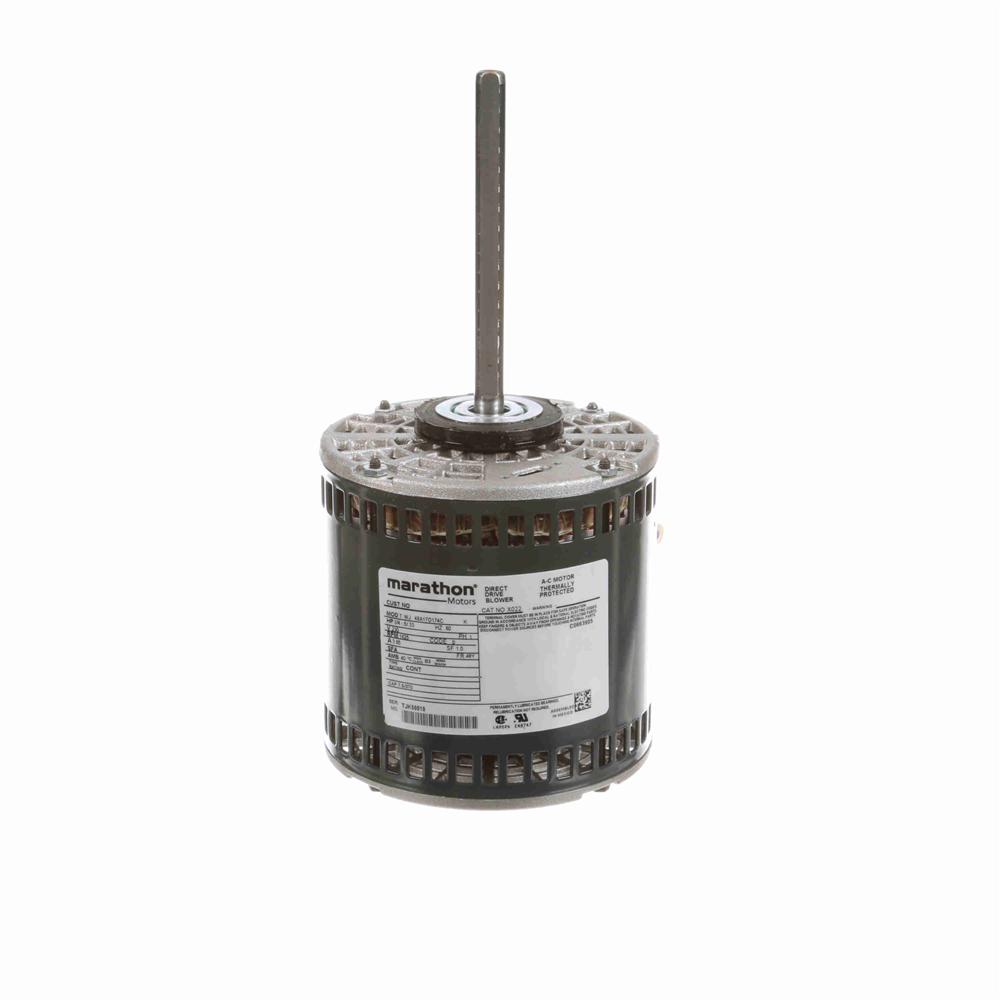

Marathon X022 48Y Frame Open Air Over 48A17O174 Direct Drive Motor 3/4 hp, 1625 RPM, 230 VAC, 1 Phase, 3 Speeds, Ball Bearing, Permanent Split Capacitor, Thru-Bolt

Brand: Marathon Electric
PartNumber: X022
Model: MX022
PackageQuantity: 1
Binding: Misc.
Manufacturer: Marathon Electric
Label: Marathon Electric

Attributes

Key	Value
Alternate Mfr Part Numb.	048A17O174
Amps	3.65, 3.7
Approvals	CSA, UR
Bearing Type	Ball
Bearings	Ball
Brand	Marathon
C-Dimension	11.94 (in.) (in.)
Capacitor	7.5MFD/370VAC Required
Catalog Number	X022
CE	N
Composition	Rolled Steel
CSA	Y
Current Rating	3.7 A
DE Bearing Type	Ball
DEM Reference	NOHP
Duty	Continous
Duty Cycle	Continuous
Efficiency	0.73, 73
Efficiency %	73 %
Electrical Type	Permanent Split Capacit.
Enclosure	OPAO, Open Air Over
Enclosure Material	Steel
Enclosure Type	OAO (Open Air Over), Op.
Family Series	Marathon Electric Motors
Frame	48Y
Frame Material	Rolled Steel
Frame Type	48Y
Frequency	60, 60 Hz
Gross Weight	0 lbs
Horsepower	3/4 hp
Horsepower Rating	0.75 HP
HP	3/4
Hz	60
Insulation Class	B
Insulation Type	Class B
IP Code	10
Item Number	X022
Kilowatts	0.56 kW
KVA Code	D
Manufacturer	Marathon Electric
Manufacturer Model #	048A17O174
Manufacturer Part Number	048A17O174
Max Ambient	40?C
Maximum Ambient Tempera.	40? C
Motor Diameter	5-5/8"
Motor Orientation	Horizontal
Motor Shell Length	5"
Mounting	Resilient Ring
Mounting Orientation	Horizontal
Mounting Type	Resilient Rings
Net Weight	18 lbs
Number of Poles	4
Number of Speeds	3
ODE Bearing Type	Ball
Overall Length	11.94", 11.94 "
Phase	1, 1 Phase
Product Category	HVAC/R Motors > Fan an.
Product Type	PSC (Permanent Split Ca.
Rotation	Reversible, Selective C.
RPM	1,625 RPM, 1625 RPM, 16.
RPM (Nameplate)	1625
RPM (Number of Poles)	4 (1201 RPM to 1800 RPM)
Service Factor	1
Shaft Diameter	0.5 ", 1/2 (in.), 1/2"
Shaft Extension	5.56 (in.) (in.)
Shaft Length	5.56"
Shaft Type	Single Special Extension
Ship Weight	18 lbs.
Special Features	Service Factor - 1
Speeds	3
Standards	UL Recognized
Supply Voltage	230 VAC
Thermal Protection	Automatic
Type	Permanent Split Capacit.
Type of Overload Protec.	Automatic Lock Rotor On.
UL	Recognized
UPC Code	722856038708
Voltage	230
Voltage (AC)	230 VAC
Volts	230

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Brand	Weight	Preferred Tier
Galco	X022-MARA	69.08	90	In Stock	Marathon Electric	18.0	69.08 @ 90
MRO Supply	2269535	69.44	1	In Stock	Marathon Electric		69.44 @ 1
us.rs-online.com	72237908	85.01	1	In Stock	Marathon Motors		85.01 @ 1
electricmotorwholesale.com	X022	162.0	1	1	MARATHON		162.0 @ 1
Dreisilker	MA-RBC-X022	262.27	1	In Stock	Marathon		262.27 @ 1
emotorpro.com	X022	268.17	1	In Stock	Marathon	18.0	268.17 @ 1
midwestapplianceparts.com	X022-MT-P	278.13	1	In Stock	Marathon		278.13 @ 1
