Marathon Electric X027

B007ZQPP3O

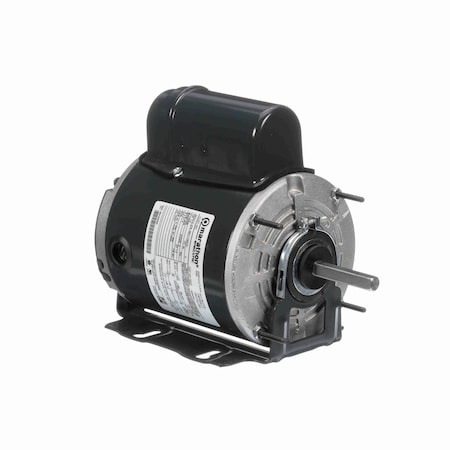

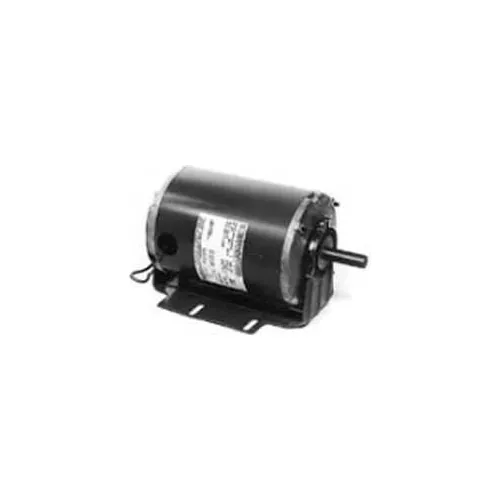

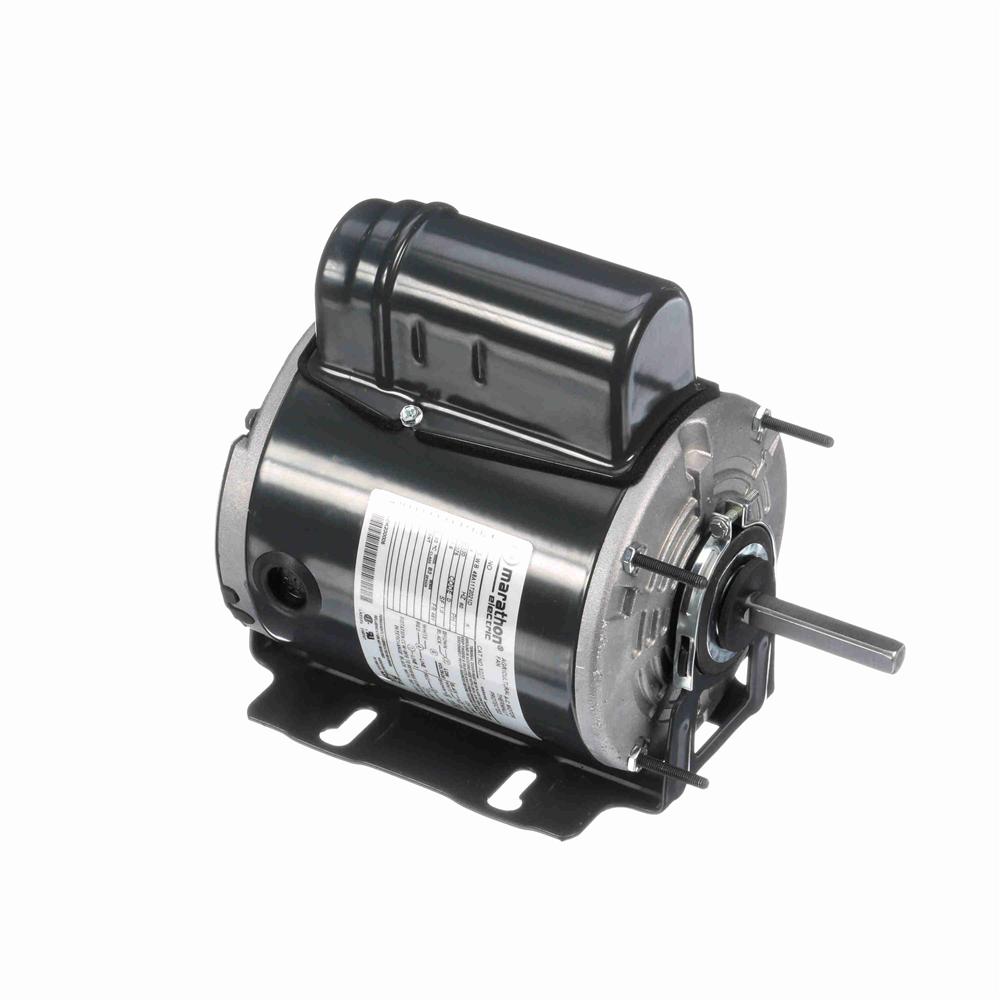

Marathon X027 48YZ Frame Totally Enclosed Farm Duty Exhaust Fan Motor 1/4 hp, 1075 RPM, 115/230 VAC, 1 Phase, 1 Speed, Ball Bearing, Permanent Split Capacitor, Resilient Base

Marathon X027 48YZ Frame Totally Enclosed Farm Duty Exhaust Fan Motor 1/4 hp, 1075 RPM, 115/230 VAC, 1 Phase, 1 Speed, Ball Bearing, Permanent Split Capacitor, Resilient Basezoom

Attributes

Key Value
Alternate Mfr Part Numb.048A11T2021
Amps3.2/1.6
BearingsBall
BrandMarathon
C-Dimension10.09 (in.)
Capacitor15MFD/370VAC Required
Catalog NumberX027
CEN
Country of Origin (subj.Mexico
CSAY
Current Rating3.2 ; 1.6 A
DE Bearing TypeBall
DEM ReferenceMA#X027
DutyContinuous
Duty CycleContinuous
Efficiency0.595, 59.5
Electrical TypePermanent Split Capacit.
EnclosureTEAO
Enclosure MaterialSteel
Enclosure TypeTEAO (Totally Enclosed .
Frame48Y
Frame MaterialRolled Steel
Frame Type48Y
Frequency60, 60 Hz
Gross Weight0 lbs
Horsepower Rating0.25 HP
HP1/4
Hz60
Insulation ClassB
Insulation TypeClass B
IP Code43
KVA CodeD
Manufacturer Model #048A11T2021
Max Ambient40?C
Maximum Ambient Tempera.40? C
Motor Diameter5-5/8"
Motor OrientationHorizontal
Motor Shell Length5.5"
MountingStud
Mounting OrientationHorizontal
Mounting TypeRound - Extended Studs
Number of Speeds1
ODE Bearing TypeBall
Overall Length10.09"
Phase1, 1 Phase
Product CategoryLow Voltage NEMA Farm /.
Product TypePSC (Permanent Split Ca.
RotationReversible, Selective C.
RPM1075 RPM, 1075
RPM (Nameplate)1075
RPM (Number of Poles)6 (901 RPM to 1200 RPM)
Service Factor1
Shaft Diameter1/2 (in.), 1/2"
Shaft Extension2.56 (in.)
Shaft Length2.56"
Shaft TypeSingle Special Extension
Ship Weight15 lbs.
Special FeaturesService Factor - 1
Speeds1
StandardsUL Recognized
Supply Voltage115/230 VAC
Thermal ProtectionAutomatic
TypePermanent Split Capacit.
Type of Overload Protec.Automatic Lock Rotor On.
ULRecognized
UPC Code722856028020
Voltage115-230
Volts115, 230, 115/230

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomelectricmotorwholesale.comX027154.01In StockMARATHON154.0 @ 1
thumbzoomapexindustrialautomation.comX027219.1516Marathon219.15 @ 1
thumbzoomMRO Supply2270158226.111In StockMarathon Electric226.11 @ 1
thumbzoomemotorpro.comX027232.921In StockMarathon15.0232.92 @ 1
thumbzoomGlobal IndustrialWBB868908249.951In StockMarathon Motors249.95 @ 1
thumbzoomNational Supply NetworkB868908250.941In StockMARATHON MOTORS250.94 @ 1
thumbzoomGalcoX027-MARA259.01In StockMarathon Electric259.0 @ 1
thumbzoomDreisilkerMA-RBC-X027276.141In StockMarathon276.14 @ 1
us.rs-online.com72238317298.941In StockMarathon Motors298.94 @ 1
thumbzoomZoroG906629401337.151In Stock10Marathon337.15 @ 1
