- mpnX241
- brandname: MARATHON
- manufacturername: MARATHON

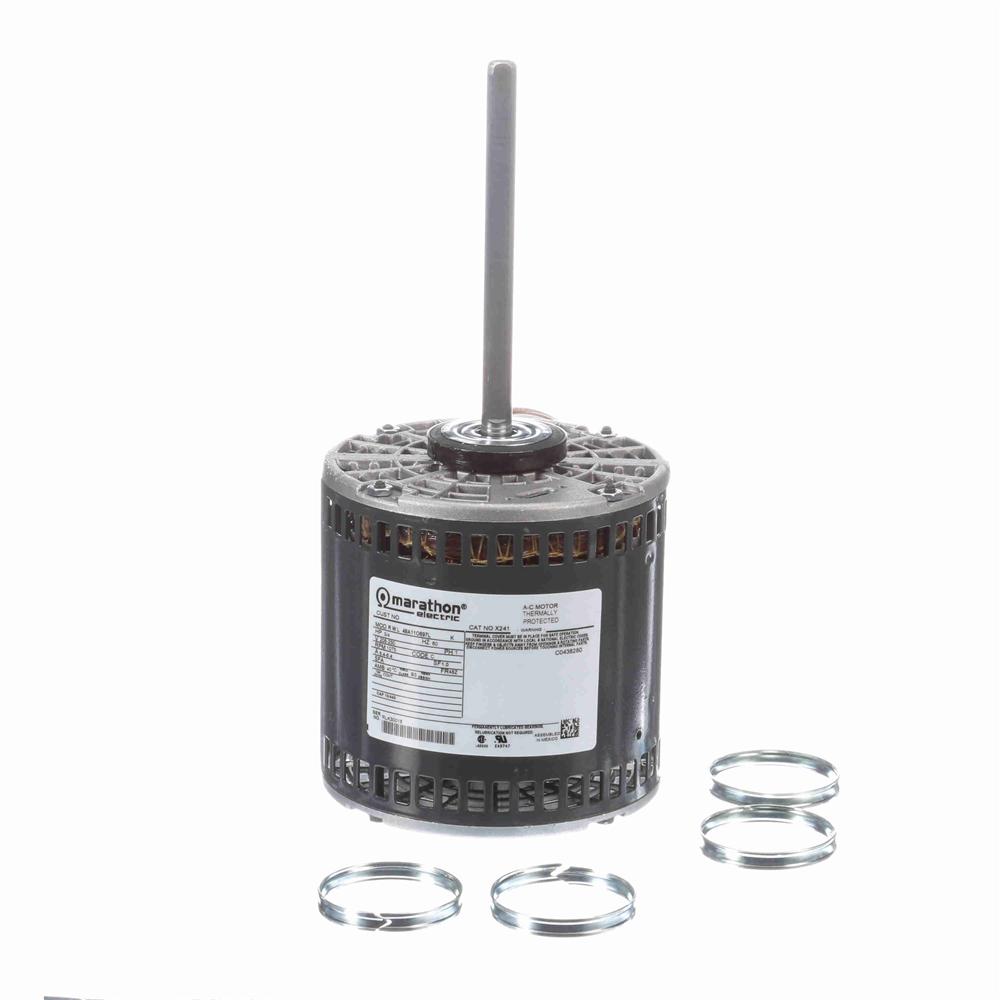

Marathon X241 Motor
- Brand: Marathon Electric
- PartNumber: X241
- PackageQuantity: 1
- Manufacturer: Marathon
- Label: Marathon
Attributes
| Key | Value |
|---|
| Alternate Mfr Part Numb. | 048A11O697 |
| Amps | 5.4-5.4 |
| Approvals | CSA, UR |
| Bearing Type | Ball |
| Bearings | Ball |
| Brand | Marathon |
| C-Dimension | 12.50 (in.) (in.) |
| Capacitor | 10MFD/440VAC Required |
| Catalog Number | X241 |
| CE | N |
| Composition | Rolled Steel |
| CSA | Y |
| Current Rating | 5.4 to 5.4 A |
| DE Bearing Type | Ball |
| DEM Reference | NOHP |
| Duty | Continous |
| Duty Cycle | Continuous |
| Efficiency | 0.66, 66 |
| Efficiency % | 66 % |
| Electrical Type | Permanent Split Capacit. |
| Enclosure | Open Air Over |
| Enclosure Material | Steel |
| Enclosure Type | OAO (Open Air Over), Op. |
| enclosure type: | OAO (Open Air-Over) |
| Family Series | Marathon Electric Motors |
| Frame | 48Z |
| Frame Material | Rolled Steel |
| frame material: | Rolled Steel |
| frame size: | 48Y |
| Frame Type | 48Z |
| Frequency | 60, 60 Hz |
| frequency rating: | 60 Hz |
| full load efficiency: | 66.00 % |
| Gross Weight | 0 lbs |
| Horsepower | 3/4 hp |
| Horsepower Rating | 0.75 HP |
| HP | 3/4 |
| Hz | 60 |
| Insulation Class | B |
| Insulation Type | Class B |
| IP Code | 10 |
| Item Number | X241 |
| Kilowatts | 0.56 kW |
| KVA Code | C |
| Manufacturer | Marathon Electric |
| Manufacturer Model # | 048A11O697 |
| Manufacturer Part Number | 048A11O697 |
| Max Ambient | 40?C |
| Maximum Ambient Tempera. | 40? C |
| motor category: | Blower/Fan Motor |
| Motor Diameter | 5-5/8" |
| motor horsepower: | 0.75 hp, 3/4 hp |
| Motor Orientation | Horizontal |
| motor phase: | 1 ph |
| Motor Shell Length | 5" |
| motor supply voltage: | 208-230 V |
| Mounting | Resilient Ring |
| Mounting Orientation | Horizontal |
| Mounting Type | Resilient Rings |
| mounting type: | Resilient Ring |
| Net Weight | 17 lbs |
| Number of Poles | 6 |
| Number of Speeds | 2 |
| ODE Bearing Type | Ball |
| Overall Length | 12.5", 12.5 " |
| Phase | 1, 1 Phase |
| Product Category | HVAC/R Motors > Fan an. |
| Product Type | PSC (Permanent Split Ca. |
| Rotation | Reversible, Selective C. |
| RPM | 1075 RPM, 1075, 1,075 R. |
| RPM (Nameplate) | 1075 |
| RPM (Number of Poles) | 6 (901 RPM to 1200 RPM) |
| Service Factor | 1 |
| service factor: | 1.00 |
| Shaft Diameter | 0.5 ", 1/2 (in.), 1/2" |
| Shaft Extension | 6.06 (in.) (in.) |
| Shaft Length | 6.06" |
| Shaft Type | Single Special Extension |
| Ship Weight | 17 lbs. |
| Special Features | Service Factor - 1 |
| Speeds | 2 |
| Standards | UL Recognized |
| standards met: | UL, CSA |
| Supply Voltage | 208-230 VAC |
| synchronous rpm: | 1200 rpm |
| Thermal Protection | Automatic |
| Type | Permanent Split Capacit. |
| Type of Overload Protec. | Automatic Lock Rotor On. |
| UL | Recognized |
| UPC Code | 722856049049 |
| Voltage (AC) | 208-230 VAC |
| Volts | 208, 230, 208-230 |
| weight: | 17 lbs |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Galco | X241-MARA | 69.34 | 75 | In Stock | | Marathon Electric | 17.0 | 69.34 @ 75 |
| us.rs-online.com | 72237888 | 85.32 | 1 | In Stock | | Marathon Motors | | 85.32 @ 1 |
 | motionindustries.com | 04739444 | 236.65 | 1 | In Stock | | Marathon Electric | | 236.65 @ 1 |
 | emotorpro.com | X241 | 308.77 | 1 | In Stock | | Marathon | 17.0 | 308.77 @ 1 |
 | Dreisilker | MA-RBC-X241 | 337.17 | 1 | In Stock | | Marathon | | 337.17 @ 1 |
 | Guardian | MARSX241 | 398.25 | 1 | In Stock | | Marathon | | 398.25 @ 1 |
| cbtcompany.com | X241 | 575.0 | 1 | In Stock | | Marathon Electric Motors | | 575.0 @ 1 |
