- mpnX298
- brandname: MARATHON
- manufacturername: MARATHON

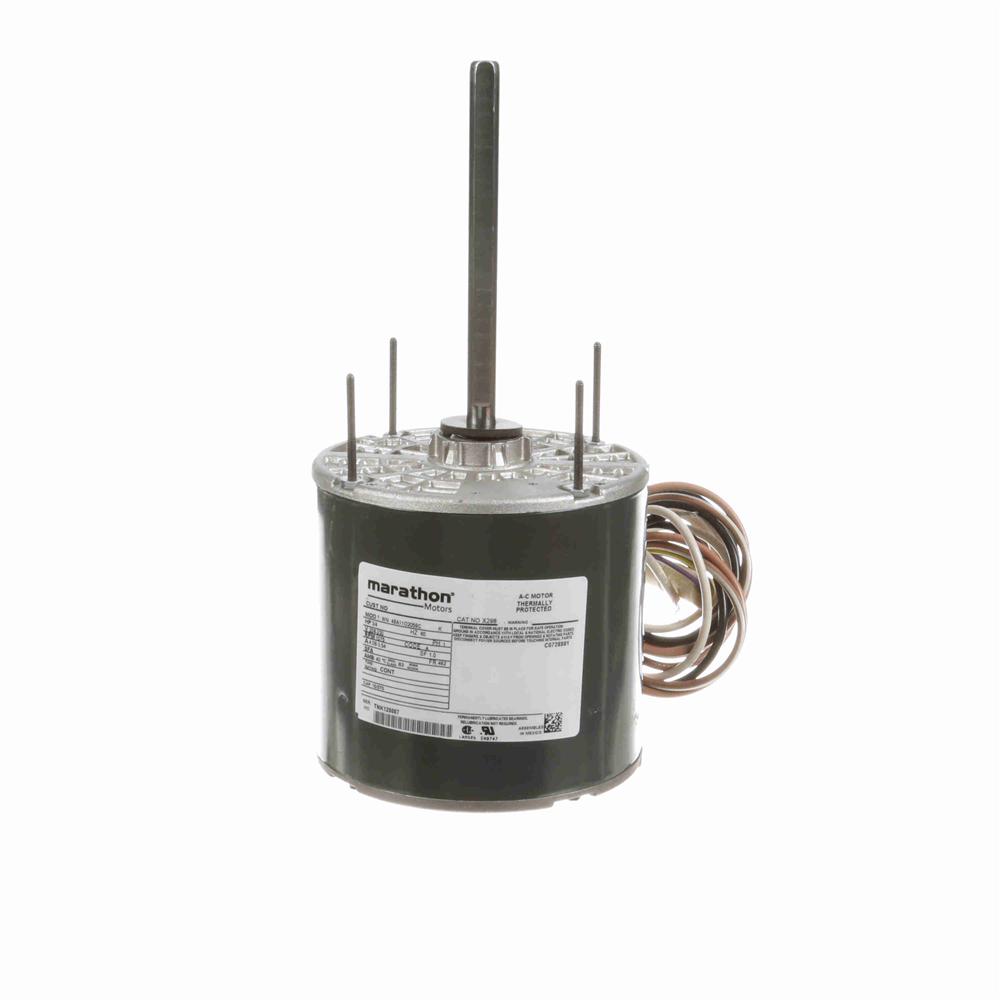

X298 48A11O2059 3/4 Hp 208-230 48Y FR. 1075/1 Rpm Thru-Bolt
- Brand: Marathon Electric
- PartNumber: X298
- PackageQuantity: 1
- Manufacturer: Marathon Electric
- Label: Marathon Electric
Attributes
| Key | Value |
|---|
| Alternate Mfr Part Numb. | 048A11O2059 |
| Amps | 4-4.2 |
| Approvals | CSA, UR |
| Bearing Type | Ball |
| Bearings | Ball |
| Capacitor | 15MFD/370VAC Required |
| Composition | Rolled Steel |
| Current Rating | 4.1 to 3.5 A |
| Duty Cycle | Continuous |
| Efficiency | 0.7, 70 |
| Efficiency % | 70 % |
| Enclosure | Open Air Over |
| Enclosure Material | Steel |
| Enclosure Type | OAO (Open Air Over), Op. |
| Family Series | Marathon Electric Motors |
| Frame | 48Z |
| Frequency | 60 Hz |
| Gross Weight | 0 lbs |
| Horsepower | 3/4 hp |
| Horsepower Rating | 0.75 HP |
| HP | 3/4 |
| Hz | 60 |
| Insulation Class | B |
| Insulation Type | Class B |
| Item Number | X298 |
| Kilowatts | 0.56 kW |
| Manufacturer | Marathon Electric |
| Manufacturer Model # | 048A11O2059 |
| Manufacturer Part Number | 048A11O2059 |
| Maximum Ambient Tempera. | 40? C |
| Motor Diameter | 5-5/8" |
| Motor Shell Length | 4.75" |
| Mounting | Stud |
| Mounting Orientation | Vertical Shaft Up |
| Mounting Type | Round - Extended Studs |
| Net Weight | 17 lbs |
| Number of Poles | 6 |
| Number of Speeds | 1 |
| Overall Length | 12.91", 12.91 " |
| Phase | 1, 1 Phase |
| Product Type | PSC (Permanent Split Ca. |
| Rotation | Reversible |
| RPM | 1075 RPM, 1075, 1,075 R. |
| Service Factor | 1 |
| Shaft Diameter | 0.5 ", 1/2" |
| Shaft Length | 6.06" |
| Ship Weight | 17 lbs. |
| Special Features | Service Factor - 1 |
| Standards | UL Recognized |
| Supply Voltage | 208-230 VAC |
| Thermal Protection | Automatic |
| Type | Permanent Split Capacit. |
| UPC Code | 722856037657 |
| Voltage (AC) | 208-230 VAC |
| Volts | 208, 230 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Square One | X298 | 164.68 | 1 | In Stock | | Marathon | | 164.68 @ 1 |
 | emotorpro.com | X298 | 183.03 | 1 | In Stock | | Marathon | 17.0 | 183.03 @ 1 |
 | Galco | X298-MARA | 256.0 | 75 | In Stock | | Marathon Electric | 17.0 | 256.0 @ 75 |
| us.rs-online.com | 72237887 | 306.7 | 1 | In Stock | | Marathon Motors | | 306.7 @ 1 |
