Marathon Electric X017

B0042GIHU8

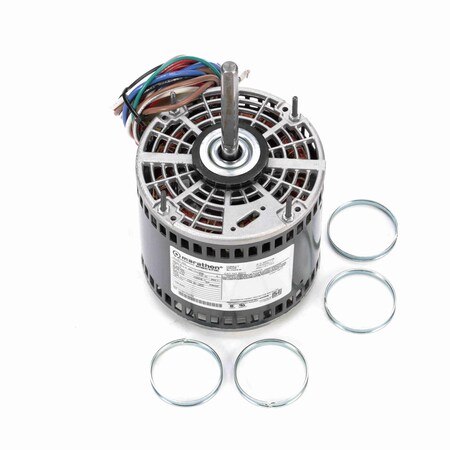

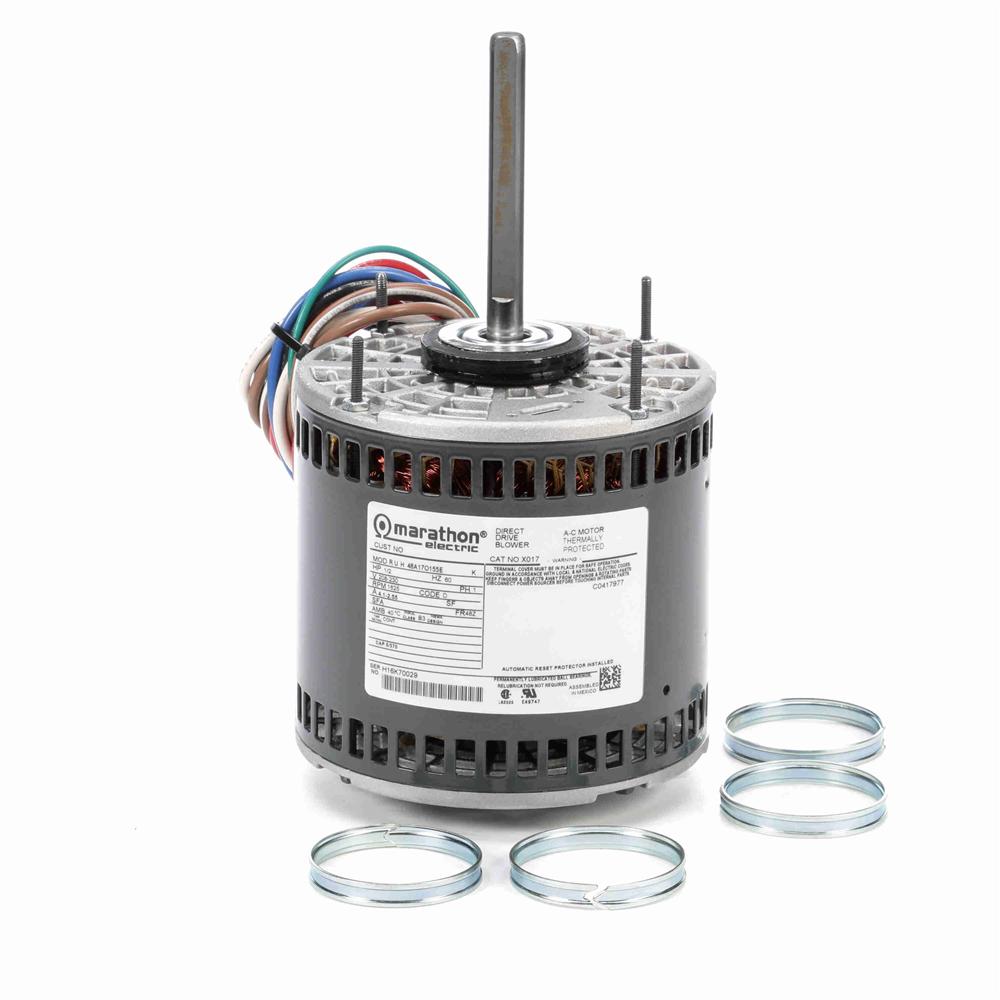

Marathon X017 48Y Frame Open Air Over 48A17O155 Direct Drive Motor 1/2 hp, 1625 RPM, 208-230 VAC, 1 Phase, 3 Speeds, Ball Bearing, Permanent Split Capacitor, Thru-Bolt

Marathon X017 48Y Frame Open Air Over 48A17O155 Direct Drive Motor 1/2 hp, 1625 RPM, 208-230 VAC, 1 Phase, 3 Speeds, Ball Bearing, Permanent Split Capacitor, Thru-Boltzoom

Attributes

Key Value
Alternate Mfr Part Numb.048A17O155
Amps4.1-4.1, 4.1-2.55
ApprovalsCSA, UR
Bearing TypeBall
BearingsBall
BrandMarathon
C-Dimension10.25 (in.) (in.)
Capacitor5MFD/370VAC Required
Catalog NumberX017
CEN
CompositionRolled Steel
Country of Origin (subj.Mexico
CSAY
DE Bearing TypeBall
DEM ReferenceNOHP
DutyContinous
Duty CycleContinuous
Efficiency0.72
Efficiency %72 %
Electrical TypePermanent Split Capacit.
EnclosureOPAO, Open Air Over
Enclosure MaterialSteel
Enclosure TypeOAO (Open Air Over), Op.
Family SeriesMarathon Electric Motors
Frame48Z
Frame MaterialRolled Steel
Frame Type48Z
Frequency60, 60 Hz
Gross Weight0 lbs
Horsepower1/2 hp
HP1/2
Hz60
Insulation ClassB
IP Code10
Item NumberX017
Kilowatts0.37 kW
KVA CodeD
ManufacturerMarathon Electric
Manufacturer Model #048A17O155
Manufacturer Part Number048A17O155
Max Ambient40?C
Maximum Ambient Tempera.40? C
Motor Diameter5-5/8"
Motor OrientationHorizontal
Motor Shell Length4.75"
MountingBase/Stud
Mounting OrientationHorizontal
Mounting TypeResilient Ring - Extend.
Net Weight16 lbs
Number of Poles4
Number of Speeds3
ODE Bearing TypeBall
Overall Length10.25", 10.25 "
Phase1
Product CategoryHVAC/R Motors > Fan an.
Product TypePSC (Permanent Split Ca.
RotationReversible, Selective C.
RPM1,625 RPM, 1625
RPM (Nameplate)1625
RPM (Number of Poles)4 (1201 RPM to 1800 RPM)
Service Factor1
Shaft Diameter0.5 ", 1/2 (in.), 1/2"
Shaft Extension4.06 (in.) (in.)
Shaft Length4.06"
Shaft TypeSingle Special Extension
Ship Weight16 lbs.
Speeds3
Type of Overload Protec.Automatic Lock Rotor On.
ULRecognized
Voltage208-230
Voltage (AC)208-230 VAC
Volts208-230, 230, 208

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomelectricmotorwholesale.comX017149.01In StockMARATHON149.0 @ 1
thumbzoomGalcoX017-MARA200.341In StockMarathon Electric16.0200.34 @ 1
thumbzoomMRO Supply2269568202.541In StockMarathon Electric202.54 @ 1
us.rs-online.com72650107225.661In StockMarathon Motors225.66 @ 1
thumbzoomZoroG2530784242.311In StockMarathon242.31 @ 1
thumbzoomDreisilkerMA-RBC-X017247.351In StockMarathon247.35 @ 1
thumbzoomemotorpro.comX017248.141In StockMarathon16.0248.14 @ 1
thumbzoomNational Supply NetworkB871945252.561In StockMARATHON MOTORS252.56 @ 1
thumbzoommidwestapplianceparts.comX017-MT-P257.361In StockMarathon257.36 @ 1
kirbyrisk.com505018308.831In StockMarathon308.83 @ 1
thumbzoomGuardianMARSX017311.671In StockMarathon311.67 @ 1
