- mpn430452412
- brandname: MOLEX
- manufacturername: MOLEX

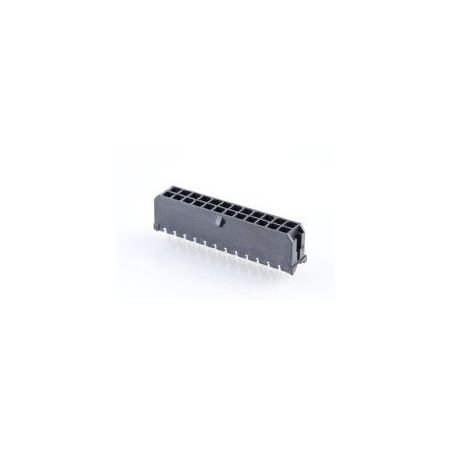

0430452412 Conn Power HDR 24 POS 3mm Solder ST Thru-Hole 24 Terminal 1 Port Micro-Fit 3.0 Tray, (10 Items)
Attributes
| Key | Value |
|---|
| Agency Approvals | CSA ; UL ; TUV |
| Alternate Mfr Part Numb. | 43045-2412 |
| Alternate Part No. | 538-43045-2412 |
| Angle | Vertical |
| Application | Wire-to-Board |
| Applications | Automotive, General Pur. |
| Base Product Number | 043045 |
| Brand | Molex |
| Category | Connectors, Interconnec. |
| Color | Black |
| Connector Shape | Square |
| Connector Type | Header |
| Contact Finish | Tin Plated |
| Contact Finish - Mating | Tin |
| Contact Finish - Post | Tin |
| Contact Finish Thicknes. | 100.0?in (2.54?m) |
| Contact Finish Thicknes. | - |
| Contact Length - Mating | - |
| Contact Length - Post | 0.125" (3.18mm) |
| Contact Material | Brass |
| Contact Plating | Tin |
| Contact Plating Thickne. | 0.254 ?m |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Current Rating | 8.5 A, 5 A |
| Current Rating (Amps) | 8A |
| Description | CONN HEADER VERT 24POS . |
| Detailed Description | Connector Header Throug. |
| Digi-Key Part Number | WM4716-ND |
| Family Name | Micro-Fit 3.0 |
| Fastening Type | Locking Ramp |
| Features | Board Guide, Glow-Wire . |
| Flammability Rating | UL 94V-0 |
| Gender | Male |
| Hole Center to Center | 3 mm |
| Housing Material | Polyester, Thermoplastic |
| Ingress Protection | - |
| Insulation Color | Black |
| Insulation Height | 0.390" (9.91mm) |
| Insulation Material | Liquid Crystal Polymer . |
| Manufacturer | Molex |
| Manufacturer Part No. | 43045-2412 |
| Manufacturer Product Nu. | 0430452412 |
| Manufacturer Standard L. | 21 Weeks |
| Mated Stacking Heights | - |
| Material | High Temperature Thermo. |
| Material Flammability R. | UL94 V-0 |
| Max. Temp. | 260?C |
| Max. Voltage | 600V |
| Mfr | Molex |
| Mounting Angle | Vertical |
| Mounting Type | Through Hole |
| Number of Circuits | 24 |
| Number of Contacts | 24 |
| Number of Positions | 24 |
| Number of Positions Loa. | All |
| Number of Rows | 2 |
| Operating Temperature | -40 to +105 ?C, -40?C ~. |
| Orientation | Vertical |
| Overall Contact Length | - |
| Overall Length | 0.551 " |
| Package | Tray |
| Packaging | Tray |
| Part # Aliases | 0430452412 43045-2412-PB |
| Pin Spacing | 0.118 " |
| Pitch | 3.00 mm (0.118"), 3 mm |
| Pitch - Mating | 0.118" (3.00mm) |
| Plating Material | Tin |
| Primary Type | Soft Shell |
| Product Category | Headers & Wire Housings |
| Product Header | Micro-Fit 3.0? Wire-to-. |
| Product Status | Active |
| Product Type | Header Assemblies |
| Representative Standard | UL / TUV / CSA |
| Row Spacing | 3 mm |
| Row Spacing - Mating | 0.118" (3.00mm) |
| Series | Micro-Fit 3.0 43045, 43. |
| Shrouding | Shrouded - 4 Wall |
| Special Features | Low-Halogen |
| Standards | CSA Certified; UL E2917. |
| Style | Board to Cable/Wire |
| Temperature Range | -40 to 105 C |
| Terminal Finish | Tin Plated |
| Terminal Type | Through Hole - Kinked P. |
| Termination | Kinked Pin, Solder, Thr. |
| Termination Style | Through Hole - Kinked P. |
| Tradename | Micro-Fit 3.0 |
| Type | Vertical Header, Pin He. |
| UPC Code | 800754376631 |
| Voltage Rating | 600V, 600 V |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
| Waldom | MOLEX 43045-2412 | 1.3 | 45 | 17607 | | MOLEX | | 1.3 @ 45 |
| Power and Signal Group | 0430452412 | 1.5449 | 576 | 64 | | Molex | | 1.5449 @ 576 |
 | NEP Electronics | 43045-2412 | 1.8088 | 45 | 16587 | | Molex | | 1.8088 @ 45 |
| Onlinecomponents.com | 43045-2412 | 2.61 | 1 | 941 | | MOLEX / WALDOM | | 2.61 @ 1 |
| RS Delivers | 670-0573P | 2.9604 | 1 | 10 | | Molex | | 2.9604 @ 1 |
 | Component Electronics | 299-14110 | 4.62 | 1 | 40 | | Molex | | 4.62 @ 1 |
 | Misumi USA | 43045-2412 | 5.23 | 1 | 64 | | Molex | | 5.23 @ 1 |
| us.rs-online.com | 70090952 | 5.98 | 1 | 69 | | Molex Incorporated | | 5.98 @ 1 |
 | Digi-Key | 531416 | 5.99 | 1 | 4466 | | Molex | | 5.99 @ 1 |
 | swatee.com | 43045-2412 | 6.02 | 1 | 192 | | Molex | | 6.02 @ 1 |
 | TME | MX-43045-2412 | 7.06 | 1 | 195 | | MOLEX | | 7.06 @ 1 |
 | Newark | 98K9332 | 7.48 | 1 | 318 | | MOLEX | | 7.48 @ 1 |
 | Radwell | 43045-2412 | 9.0 | 10 | 64 | | MOLEX | | 9.0 @ 10 |
 | Zoro | G500442482 | 94.15 | 1 | 64 | | Molex | | 94.15 @ 1 |
