- mpn760485001
- brandname: Molex
- manufacturername: Molex

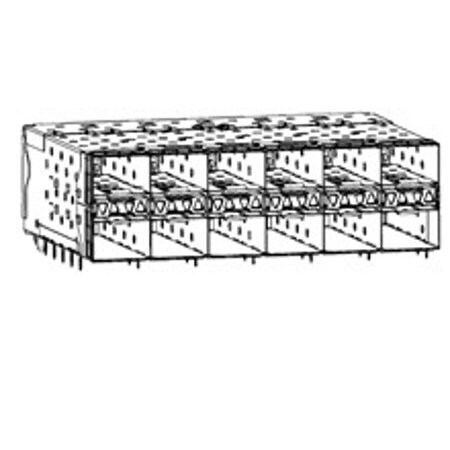

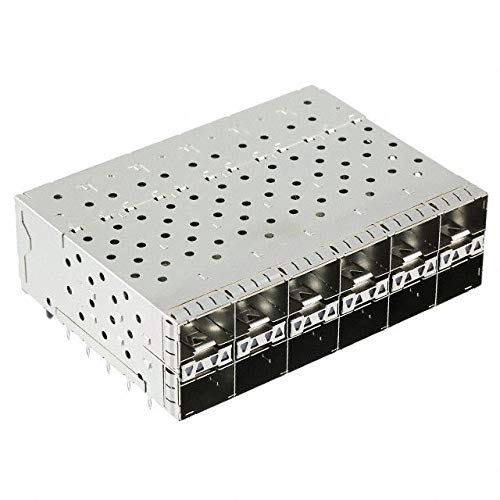

Molex / Waldom 76048-5001 Connector Telephone and Telecom


- Brand: Molex / Waldom
- PartNumber: 76048-5001
- Model: 760485001
- PackageQuantity: 1
- Binding: Electronics
- Manufacturer: Molex / Waldom
- Label: Molex / Waldom
Attributes
Key | Value |
---|
Alternate Part No. | 538-76048-5001 |
Base Product Number | 076048 |
Brand | Molex |
Category | Connectors, Interconnec. |
Color | Black, Black, Clear |
Connector Style | Receptacle with Cage, G. |
Connector Type | SFP+, Female |
Contact Finish | Gold Plated, Gold |
Contact Finish Thickness | 30.0?in (0.76?m) |
Contact Material | Tin |
Contact Plating | Gold |
Contact Plating Thickne. | 0.762 ?m |
Current Rating | 0.5 A, 500 mA |
Features | Board Guide, EMI Shield. |
Flammability Rating | UL 94 V-0, UL 94V-0 |
Gender | Female |
Hole Center to Center | 0.8 mm |
Manufacturer | Molex |
Manufacturer Part No. | 76048-5001 |
Material | High Temperature Thermo. |
Max. Temp. | 85?C |
Max. Voltage | 120V AC/DC |
Mfr | Molex |
Mounting Style | Through Hole |
Mounting Type | Through Hole, Right Ang. |
Number of Contacts | 240 |
Number of Ports | 12 |
Number of Positions | 12, 240 (20 x 12) |
Number of Rows | 2 |
Operating Temperature R. | - 40 C to + 85 C |
Package | Tray |
Package Quantity | 1 |
Packaging | Tray |
Part # Aliases | 0760485001 |
Part Status | Active |
Pitch | 0.8 mm |
Product | SFP Connectors |
Product Category | I/O Connectors |
Series | 76048 |
Standards | CSA Certified; UL E29179 |
Terminal Finish | Tin Plated |
Terminal Type | Through Hole - Complian. |
Termination | Press-Fit |
Termination Style | Through Hole |
Voltage Rating | 120 VAC/DC |
All Prices
Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
---|
| Allied Electronics | E5297253 | 98.33 | 6 | In Stock | | Molex Incorporated | | 98.33 @ 6 |
| Digi-Key | 2788740 | 112.585 | 1 | In Stock | | Molex | | 112.585 @ 1 |
  | jensentools.com | 10196680 | 118.41 | 1 | In Stock | | Molex | | 118.41 @ 1 |
  | Zoro | G005951106 | 119.99 | 1 | In Stock | | Molex | | 119.99 @ 1 |
| Newark | 56R9652 | 134.99 | 48 | In Stock | | MOLEX | | 134.99 @ 25 |
  | swatee.com | 76048-5001 | 263.78 | 1 | 7 | | Molex | | 263.78 @ 1 |
