- mpnV4E35K4M71100
- brandname: MULTIFAN
- manufacturername: MULTIFAN

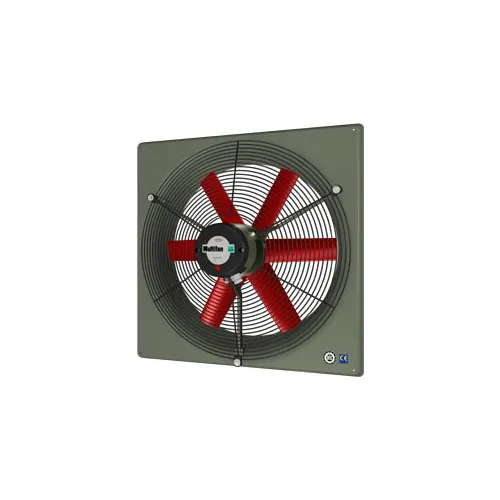

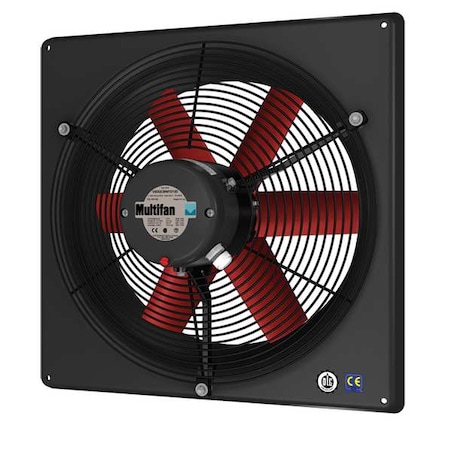

Multifan V4E35K4M71100 Panel Fan, 120V, 14"
- Brand: Multifan
- PartNumber: V4E35K4M71100
- Model: V4E35K4M71100
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Vostermans Companies
- Label: Vostermans Companies
Attributes
| Key | Value |
|---|
| Assembled | Fully Assembled |
| Bearing Type | Permanently Lubricated . |
| Blade Dia. | 14 in |
| Blade Diameter | 14 in |
| Blade Material | Polypropylene |
| Brand | Multifan |
| CFM @ 0.000-In. SP | 2,160 cfm |
| CFM @ 0.050-In. SP | 2,100 |
| CFM @ 0.125-In. SP | 2,025 cfm |
| Country of Origin (subj. | Netherlands |
| Current Stock | 11 |
| Dimension A (In.) | 17 1/2 in |
| Dimension B (In.) | 19 7/16 in |
| Dimension C (In.) | 15 3/8 in |
| Dimension D (In.) | 7 9/16 in |
| Dimension E (In.) | 3 5/16 in |
| Drive Package Included | No |
| Drive Type | Direct Drive |
| Duct Shape | Not Applicable |
| Electrical Connection | Hardwired |
| Enclosure Design | Totally Enclosed Motor |
| Exhaust Airflow @ 0.000. | 2,150 cfm |
| Exhaust Airflow @ 0.100. | 2,000 cfm |
| Exhaust Airflow @ 0.125. | 1,980 cfm |
| Exhaust/Supply Fan Item | Exhaust Fan |
| Exhaust/Supply Fan Moto. | 5/32 hp |
| Fan Style | Panel |
| Fan Voltage | 120V AC |
| For Cut-Out Height | 15 1/2 in |
| For Cut-Out Width | 15 1/2 in |
| For Minimum Wall Thickn. | 3/4 in |
| Frame Material | Fiberglass |
| Frequency | 60 Hz |
| Full Load Amps | 1.7 |
| Full Load Current | 1.7 A |
| Full Load Watts | 180 W |
| Guard Finish | Powder Coated |
| Guard Material | Steel |
| Guard Type | Intake |
| Guard Type_Subheads | With Intake Guards |
| Height (In.) | 19 3/8 in |
| Housing Material | Aluminum |
| Hz | 60 |
| Includes | Intake Guard |
| Includes Dehumidistat | No |
| Includes Motor | Yes |
| Intake Guard Material | Steel |
| International Shipping | No |
| Item | Exhaust Fan |
| Manufacturer Warranty L. | 3 yr |
| Max. Ambient Temp. (F) | 140 Degrees F |
| Max. Depth (In.) | 10 7/8 in |
| Maximum Airflow | 2,160 cfm |
| Maximum Ambient Operati. | 104 Degrees F, 104 Deg. |
| Maximum Exhaust Airflow. | 0 to 10,000 cfm |
| Method of Construction | Cast |
| Motor Enclosure | Totally Enclosed Air-Ov. |
| Motor Enclosure Design | Totally Enclosed Air Ov. |
| Motor Enclosure Design_. | Totally Enclosed Motor |
| Motor Horsepower | 1/8 hp |
| Motor Insulation | Class F |
| Motor RPM | 1,620 RPM |
| Motor Speed | 1,670 RPM |
| Motor Speed Range | 1601 to 1800 RPM |
| Motor Type | Permanent Split Capacit. |
| Mounting Orientation | Horizontal, Vertical |
| Mounting Position | Wall |
| Mpn | V4E35K4M71100 |
| Nameplate Voltage | 120V AC |
| Nominal Voltage | 115V AC |
| Number of Blades | 6 |
| Number of Speeds | Variable |
| Overall Depth | 12 1/2 in |
| Overall Height | 20 7/8 in |
| Overall Width | 20 7/8 in |
| Phase | 1 |
| Profile Height Family | High |
| Propeller Material | Polypropylene |
| SKU | ZO-G7530056 |
| Speed Controllable | Yes |
| Speed Controller | 1DGZ5 |
| Sq. Opening Required (I. | 15 1/2 in |
| Square Opening Required | 10-1/2 to 20 in |
| Supply Airflow @ 0.000 . | 2,130 cfm |
| Thermal Protection | Yes |
| Type | Corrosion Resistant, Me. |
| Vent Design | Ductless |
| Ventilation Type | Exhaust |
| Wattage | 170 W |
| Width (In.) | 19 3/8 in |
| Wire Guard Finish | Black Powder Coated |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Global Industrial | WB245811 | 615.0 | 1 | In Stock | 24 | Multifan | | 615.0 @ 1 |
| grainger.ca | WWG21A088 | 723.41809826 | 1 | In Stock | | MULTIFAN | 1.0 | 723.41809826 @ 1 |
 | Zoro | G7530056 | 803.76 | 1 | In Stock | 26 | Multifan | 24.8 | 803.76 @ 1 |
 | simsupply.com | ZO-G7530056 | 1243.78 | 1 | 11 | | Multifan | | 1243.78 @ 1 |
