Square D by Schneider Electric TM171ODM22R

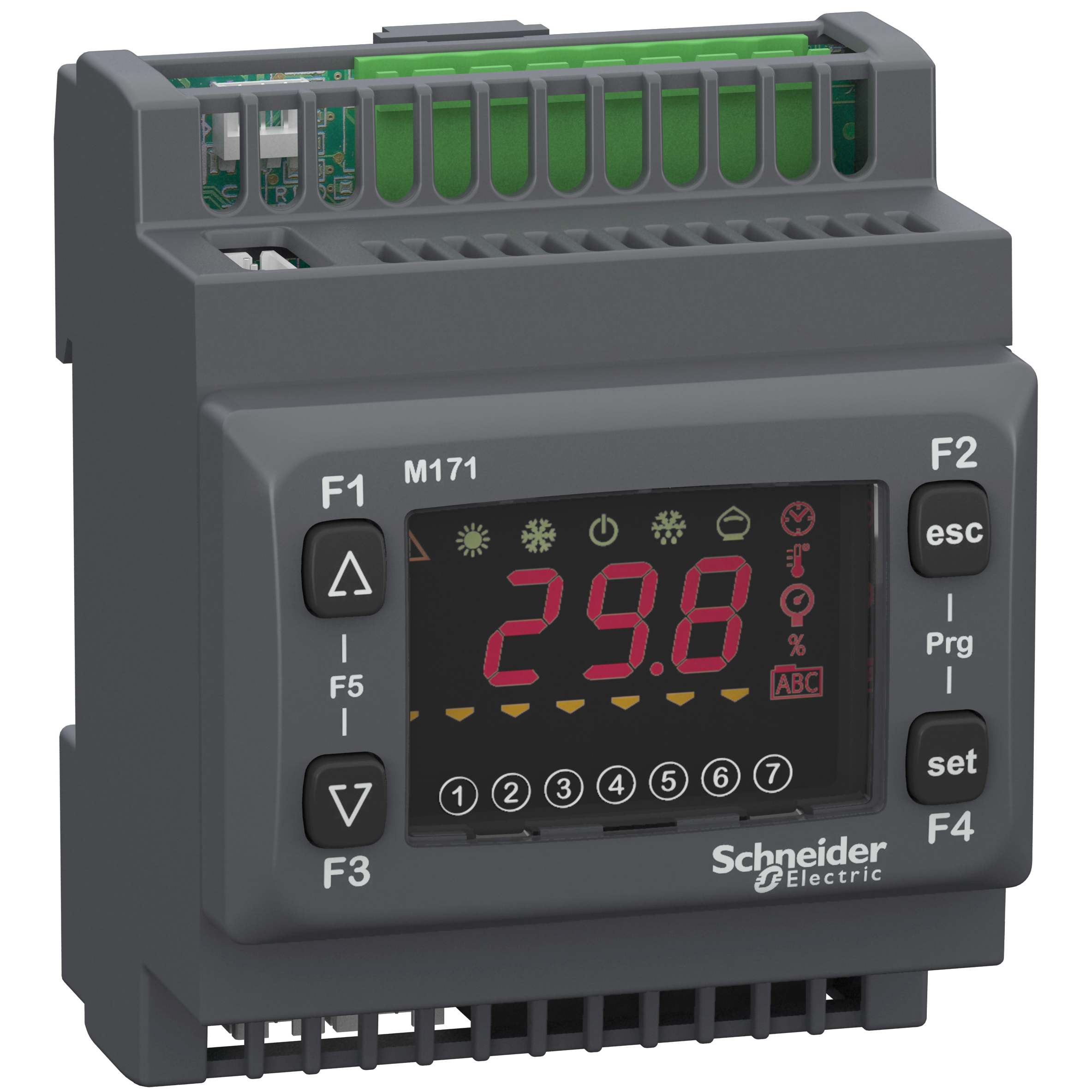

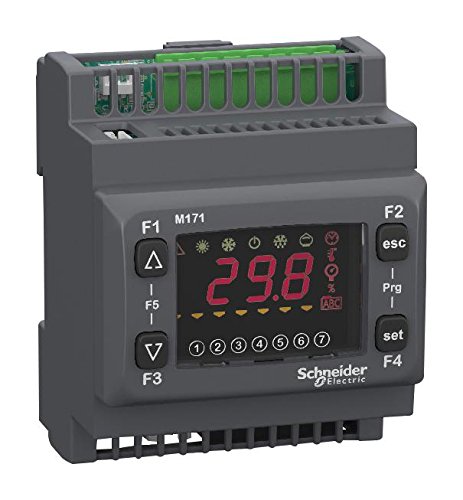

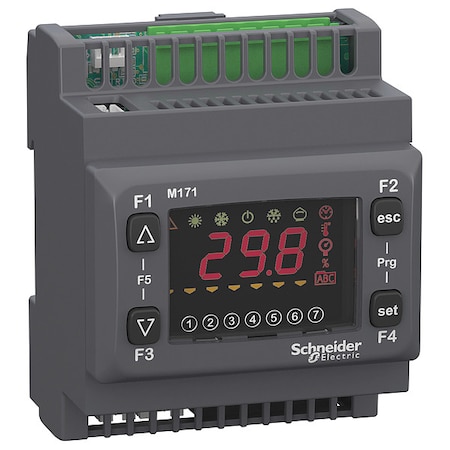

SQUARE D BY SCHNEIDER ELECTRIC TM171ODM22R Optimized Logic Controller, Modicon M171 Series PLCs, 22 I/O, Digital, Analog, 12 to 24 Vac, 24 Vdc

SQUARE D BY SCHNEIDER ELECTRIC TM171ODM22R Optimized Logic Controller, Modicon M171 Series PLCs, 22 I/O, Digital, Analog, 12 to 24 Vac, 24 Vdczoom

Attributes

Key Value
[Us] Rated Supply Volta.12...24 V +/- 10 % AC |.
Ambient Air Temperature.-20-55 ?C UL 60730-1
Ambient Air Temperature.-40-85 ?C
Amps2.0 A
Analogue Input Number2 configurable || 3 ana.
Analogue Input Typevoltage 0...5 V ratiome.
Analogue Output Number2 PWM/PPM || 3 voltage .
BrandSchneider Electric
California Proposition .Lead and lead compounds.
Catalog NumberTM171ODM22R
China Rohs RegulationX
Circularity ProfileENVEOLI1710004EN
ClockYes
CommunicationRS485/LAN Expansion Bus
Contacts Usagevolt-free contacts
Controller TypeI/O
Country of OriginItaly
Country of Origin (subj.Italy
Depth2.99 in, 76 mm
Description/Special Fea.contacts usage Volt-fre.
Dimensions2.91 in W x 2.99 in D x.
Directives2006/95/EC - low voltag.
Discrete Input Logicsink or source (positiv.
Discrete Input Number6
Discrete Output Current2 A relay
Discrete Output Number1 open collector || 3 r.
Display4 Seven-Segment Display
Display Typefour 7-segment display .
Environmental DisclosureENVPEP1710004EN
Eu Rohs DirectivePro-active compliance (.
Family NameModicon Controllers Fam.
For Use WithModicon M340 Automation.
Height1.26 in, 32 mm, 1.26
Input Voltage12 to 24V AC/DC
Input/Output Number5 analog output || 6 di.
Ip Degree Of ProtectionIP20
IP RatingIP20
ItemController
Local Signalling6 LEDs (red) || 5 LEDs .
Made in USANo
ManufacturerSchneider Electric
Mercury FreeYes
Mounting Supportflush mounting
Mounting typeDIN Rail/Flush
Mounting TypeDIN Rail Mount
Net Weight0.164 kg
Number of Inputs22
Number of inputs22
Number Of Inputs/Outputs22
Number of outputs22
Number of Outputs22
Number Of Port1 LAN expansion bus || .
Output TypeAnalog, Relay
Overvoltage CategoryII
Pollution Degree2
Port Type1 LAN Expansion Bus, 1 .
Power Consumption In W4 W
Product CertificationsCSA || EAC || CE || cUR.
Product Or Component Ty.Controller
Product Specific Applic.HVAC and pumping soluti.
Product TypeController
Range Of ProductModicon M171/M172
Reach Free Of SvhcYes
Reach RegulationFree of Substances of V.
Realtime Clockbuilt-in -20-55 ?C
Relative Humidity10-90 % non-condensing
Rohs Exemption Informat.Yes
Sensor Power Supply12-12 V DC 85 mA || 5-5.
SeriesM171, M171 Series
Slots1 LAN expansion bus, 1 .
StandardsEN/IEC 60730
Supply Voltage24 VDC
Sustainable Offer StatusGreen Premium product
Temperature Rating (Deg.-20 to 55
TimersProgrammable
TypeOptimized Display
UPC785901711759
UPC Code785901711759
VariantProgrammable
Voltage Rating12 to 24 VAC/24 VDC
WeeeThe product must be dis.
Width2.91 in, 74 mm, 2.91

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
gordonelectricsupply.comTM171ODM22R172.11In Stock10SQD172.1 @ 1
thumbzoomstandardelectricsupply.com2335302193.761In StockSquare D (Schneider Electric)193.76 @ 1
thumbzoomNewark13AC1889203.161In StockSQUARE D BY SCHNEIDER ELECTRIC203.16 @ 1
thumbzoommayerelectric.comSQDTM171ODM22R216.941In StockSQUARE D0.3608216.94 @ 1
thumbzoomZoroG3462524232.821In Stock30Schneider Electric0.61232.82 @ 1
thumbzoomcrescentelectric.com1420205233.961In StockSchneider Electric233.96 @ 1
us.rs-online.com70988611234.951In StockSchneider Electric234.95 @ 1
