Schneider Electric EDB34015AABA

B00CONP650

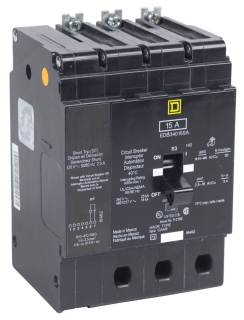

SCHNEIDER ELECTRIC 480Y/277-VOLT 15-AMP EDB34015AABA Miniature Circuit Breaker 480Y/277V 15A

SCHNEIDER ELECTRIC 480Y/277-VOLT 15-AMP EDB34015AABA Miniature Circuit Breaker 480Y/277V 15Azoom

Attributes

Key Value
[Ue] Rated Operational .480Y/277 V AC
Ambient Air Temperature.40 ?C
Amperage (Molded Case B.15 Amp
Amperage Rating15
ApplicationNF panelboard;HID rated.
Awg GaugeAWG 12...AWG 6 aluminiu.
BrandSquare D by Schneider E.
Breaking Capacity18 kA 277 V AC || 25 kA.
Breaking Capacity CodeD
Catalog NumberEDB34015AABA
China Rohs RegulationProduct out of China Ro.
Circuit Breaker Applica.HID rated || HACR rated
ComponentMolded Case Circuit Bre.
ConnectionLugs aluminium;AWG 12...
Country of OriginMexico
Depth4.05 in
Device Compositionalarm switch || auxilia.
Device Short NameEDB
DisplayEDB34015AABA Mini Circu.
Electrical Connectionlugs aluminium
Eu Rohs DirectiveCompliant
FrameE-Frame
Height5.66 in, 5.66
Height UOMInch
Holding Current270 A
Interrupt Rating18 KA 277 V AC-25 KA 24.
Item Typeminiature circuit-break.
Length4.05
Length UOMInch
Line Rated Current15 A
Local Signallingtrip indicator
Made in USANo
ManufacturerSquare D, Schneider Ele.
Maximum Voltage (Molded.277 VAC, 480Y VAC
Mercury FreeYes
Module TypeE-Frame
Mounting Modebolt-on
Net Weight4 lb(US)
Number Of Poles3
Number of Poles3
Number Of Spaces4
Number Of Spaces Requir.4
Operating Temperature40 A Degrees C
Poles (Molded Case Brea.Three Pole
Product CertificationscULus
Product DestinationNF panelboard
Product Or Component Ty.miniature circuit-break.
Protection Typeoverload || short-circu.
Range Of Product125 A Frame EDB-EGB-EJB
Reach RegulationReference contains Subs.
Rohs Exemption Informat.Yes
Special Featurestrip indicator
StandardcULus
Sub BrandEDB
Tightening Torque3.4-3.4 N.m 2.5-16 mm? .
Trip Range875 AMPS
Trip Typethermal-magnetic
Trip Unit Rating875-875 A
Trip Unit Technologythermal-magnetic
UPC785901285175
Voltage Rating480Y/277 V AC
Warranty18 months
Warranty DescriptionContractual Warranty:18.
Width3.92, 3.92 in
Width UOMInch

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomgordonelectricsupply.comEDB34015AABA865.01In Stock10SQUARE D865.0 @ 1
thumbzoommayerelectric.comSQDEDB34015AABA949.231In StockSQUARE D4.0949.23 @ 1
Newark79C6301959.171In StockSQUARE D BY SCHNEIDER ELECTRIC959.17 @ 1
thumbzoomcrescentelectric.com3730191025.741In StockSquare D by Schneider Electric1025.74 @ 1
rspsupply.comSCHNEIDER EDB34015AABA1068.791In StockSchneider Electric1068.79 @ 1
Graybar220908691120.43681In StockSquare D (Schneider Electric)1120.4368 @ 1
