TE Connectivity 796190-1

mpn796190-1
brandname: TE Connectivity
manufacturername: TE Connectivity

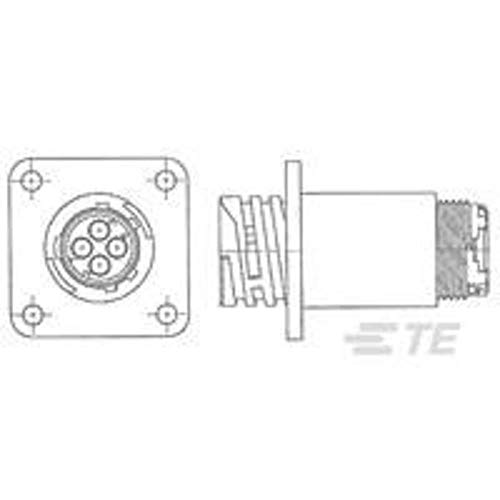

CONN RCPT SIZE 23 BLACK

CONN RCPT SIZE 23 BLACK

zoom

Brand: TE Connectivity
PartNumber: 796190-1
Model: 796190-1
PackageQuantity: 1
Manufacturer: TE Connectivity
Label: TE Connectivity

Attributes

Key	Value
Agency Approvals	UL ; CSA ; VDE ; SAE ; .
Alternate Mfr Part Numb.	796190-1
Ambient Temperature	-40 to 80 C
Angle	Straight
Application	Commercial
Base Product Number	796190
Category	Connectors, Interconnec.
Color	Black
Connector Type	Receptacle Housing
Contact Shape	Circular
Contact Size	16
Contact Type	Crimp, Pin
Control Voltage	3 to 32 V
Description	CONN RCPT HSNG MALE 24P.
Detailed Description	24 Position Circular Co.
Digi-Key Part Number	796190-1-ND
Fastening Type	Threaded
Features	Backshell
Function	Zero-Switching
Gender	Panel Socket
Housing Color	Black
Housing Material	Nylon
Housing Type	Plastic
Includes	-
Ingress Protection	IP67 - Dust Tight, Wate.
Insert Arrangement	23-24
Insert Material	-
Insulation Diameter	0.065 to 0.12 "
IP Rating	IP67
Manufacturer	TE Connectivity AMP Con.
Manufacturer Product Nu.	796190-1
Manufacturer Standard L.	18 Weeks
Material Flammability R.	UL94 V-0
Mating Type	Threaded
Mfr	TE Connectivity AMP Con.
Mounting Feature	Flange
Mounting Hole Diameter	0.15 "
Mounting Type	Panel Mount
Note	Contacts Not Included
Number of Contacts	24
Number of Positions	24
Operating Temperature	-55?C ~ 105?C
Orientation	Keyed
Package	Bulk
Primary Type	Standard Circular Plast.
Product Status	Active
Relay Type	Solid State
Series	CPC Series 1, 1 Series
Shell Finish	-
Shell Material	Polyamide (PA), Nylon
Shell Size - Insert	23-24
Shell Size, MIL	-
Shielding	Unshielded
Standards	UL, CSA, VDE, CE
Termination	Screw
Type	For Male Pins, CPC
Voltage Rating	24 to 280 ; 24 to 280 V

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Power and Signal Group	796190-1	11.3936	4500	In Stock		TE Connectivity		11.3936 @ 4500
	Onlinecomponents.com	796190-1	12.79	1	425		TE Connectivity / AMP Brand		12.79 @ 1
	Waldom	TE CONNECTIVITY AMP BRAND 796190-1	13.57	4500	170		TE CONNECTIVITY/AMP BRAND		13.57 @ 4500
	Digi-Key	2056079	13.95746	4500	In Stock		TE Connectivity AMP Connectors		13.95746 @ 4500
	Newark	09C9379	18.43	1	160		AMP - TE CONNECTIVITY		18.43 @ 1
	Hotenda	H744957	20.74	1	In Stock		TE Connectivity AMP Connectors		20.74 @ 1
	RS Delivers	680-6927	22.74	1	181		TE Connectivity		22.74 @ 1
	us.rs-online.com	70086798	25.84	1	10		TE Connectivity		25.84 @ 1
