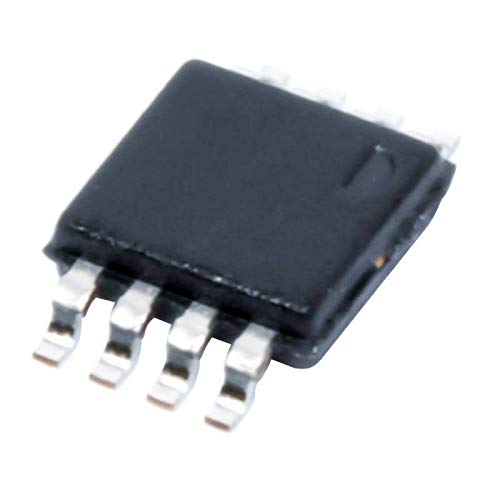

Texas Instruments ADC122S101CIMM/NOPB

B00AZVFBDU

ADC122S101CIMM/NOPB

ADC122S101CIMM/NOPBzoom

Attributes

Key Value
Alternate Part No.926-AD122S101CIMMNPB
ArchitectureSAR
Base Product NumberADC122S101
BrandTexas Instruments
CategoryIntegrated Circuits (IC.
ConfigurationMUX-S/H-ADC
Conversion Rate1 MS/s
Data InterfaceSPI, DSP
DescriptionIC ADC 12BIT SAR 8VSSOP
Detailed Description12 Bit Analog to Digita.
Digi-Key Part NumberADC122S101CIMM/NOPBTR-N.
Features-
Input TypeDifferential, Single En.
Interface TypeSerial (4-Wire, Microwi.
ManufacturerTexas Instruments
Manufacturer Part No.ADC122S101CIMM/NOPB
Manufacturer Product Nu.ADC122S101CIMM/NOPB
Manufacturer Standard L.6 Weeks
Maximum Operating Tempe.+ 85 C
MfrTexas Instruments
Minimum Operating Tempe.- 40 C
Mounting StyleSMD/SMT
Mounting TypeSurface Mount
Number of A/D Converters1
Number of Bits12
Number of Channels2 Channel
Number of Converters1
Number of Inputs2
Operating Supply Voltage3.3 V, 5 V
Operating Temperature-40?C ~ 85?C
PackageTape & Reel (TR)
Package / Case8-TSSOP, 8-MSOP (0.118".
Package/CaseMSOP
PackagingReel
Product CategoryAnalog to Digital Conve.
Product StatusActive
Ratio - S/H:ADC1:1
Reference TypeSupply
Resolution12 bit
Sampling Rate (Per Seco.1M
SeriesADC122S101, -
SNR72.4 dB
Supplier Device Package8-VSSOP
Voltage - Supply, Analog2.7V ~ 5.25V
Voltage - Supply, Digit.2.7V ~ 5.25V
Voltage ReferenceSupply

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
RS Delivers162-49692.5884146Texas Instruments2.5884 @ 1
thumbzoomNewark52AH86286.981In StockTEXAS INSTRUMENTS6.98 @ 1
thumbzoomswatee.comADC122S101CIMM/NOPB8.4811104Texas Instruments8.48 @ 1
thumbzoomDigi-Key75501218.061594Texas Instruments18.06 @ 1
